The Trend Networks SignalTEK CT (product code R156006) is a copper data cable transmission tester designed to verify the performance of twisted-pair network cabling. It performs a fast Gigabit Ethernet transmission test per the IEEE 802.3ab standard, combined with advanced wiremapping (including TDR for fault location), to prove cables can handle full 1 Gb/s Ethernet traffic error-free. It's ideal for installers and maintainers of data cabling supporting applications like VoIP, IP CCTV, and video streaming.

Key features include:

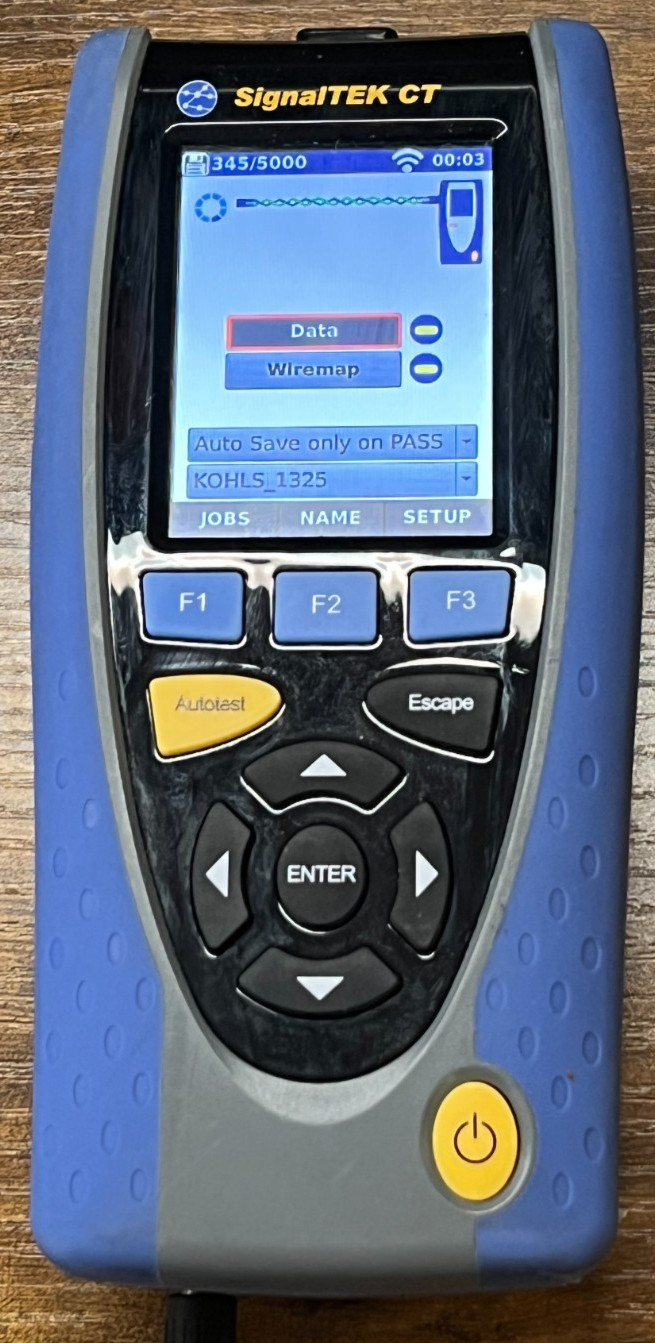

• Touchscreen interface for intuitive operation
• Fast Autotest (proof of performance in seconds)
• Automatic PDF/CSV report generation (customizable summary with logo/company/operator details; options for Summary, Brief, or Full reports)
• Wireless connectivity via included USB Wi-Fi adapter and free TREND AnyWARE™ app (for Apple/Android) to view/share reports via email, cloud, etc.
• USB port for direct report upload to memory stick (no PC needed)
• Stores up to 50 jobs and 5,000 tests
• Field-replaceable RJ45 contacts
• Rugged design with no annual calibration required
• One-person testing (Autotest from remote unit)

Supported Cables and Standards:

• Shielded and unshielded twisted pair (UTP/STP): Cat 5e, Cat 6, Cat 6A, Cat 7 (and Cat 7A/8 in some templates)
• Wiring schemes: TIA 568A and 568B
• Test standard: IEEE 802.3ab (Gigabit Ethernet)

Key Test Capabilities:

• Wiremap: Detects continuity, opens, shorts, crossed pairs, split pairs; measures individual pair lengths; TDR locates faults to conductor level
• Data Transmission: Simulates real network traffic by transmitting large volumes of Ethernet frames bi-directionally (e.g., 823,452 frames or up to 10 Gb of data in some descriptions); reports errors, pass/fail at rates including 10 Mb/s, 100 Mb/s, 1 Gb/s
• Supports error-free proof at full Gigabit speeds (fails on even minimal bit errors per the standard)
• Cable length measurement: Up to 181 m (593 ft)
