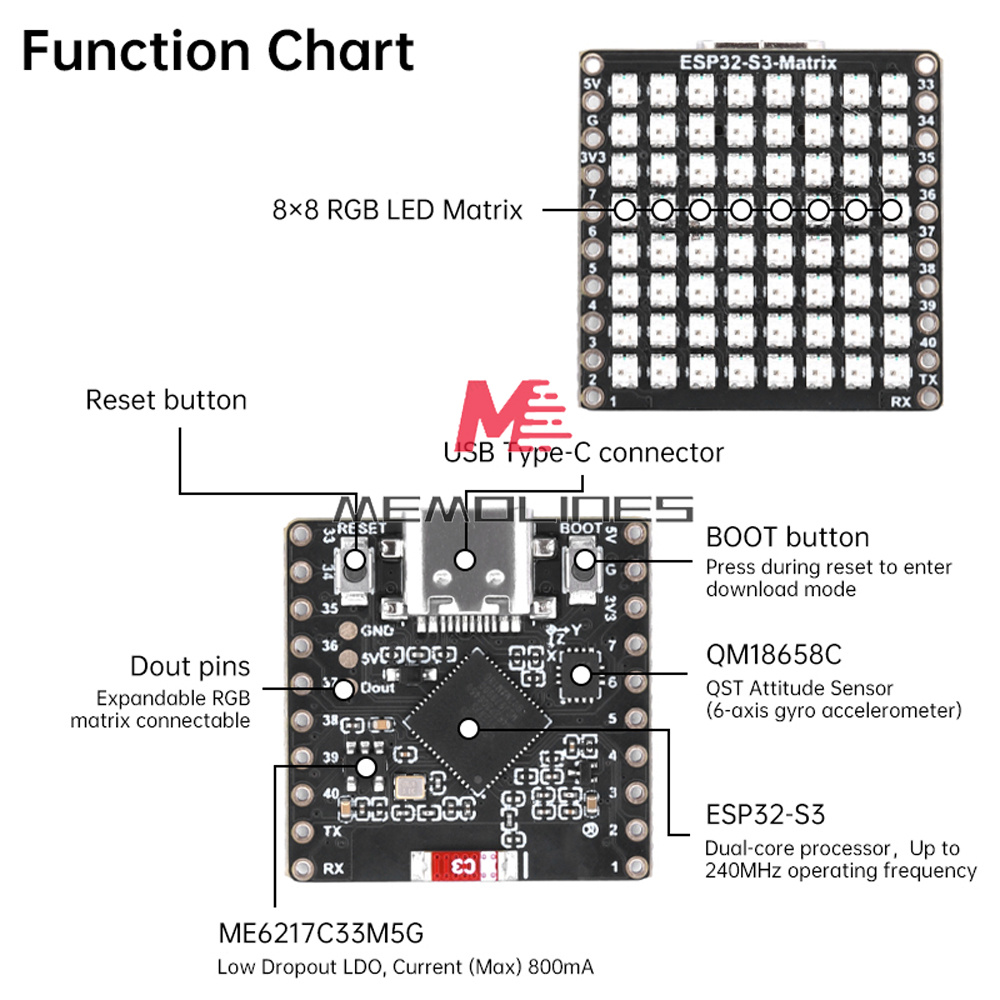

Features1. Adopts ESP32-S3FH4R2 as the main chip, equipped with Xtensa 32-bit LX7 dual-core processor, the main frequency up to 240MHz.
2. Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 4MB Flash Memory.
3. Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication with superior RF performance.
4. USB Type-C interface, no need to worry about forward and reverse plugging

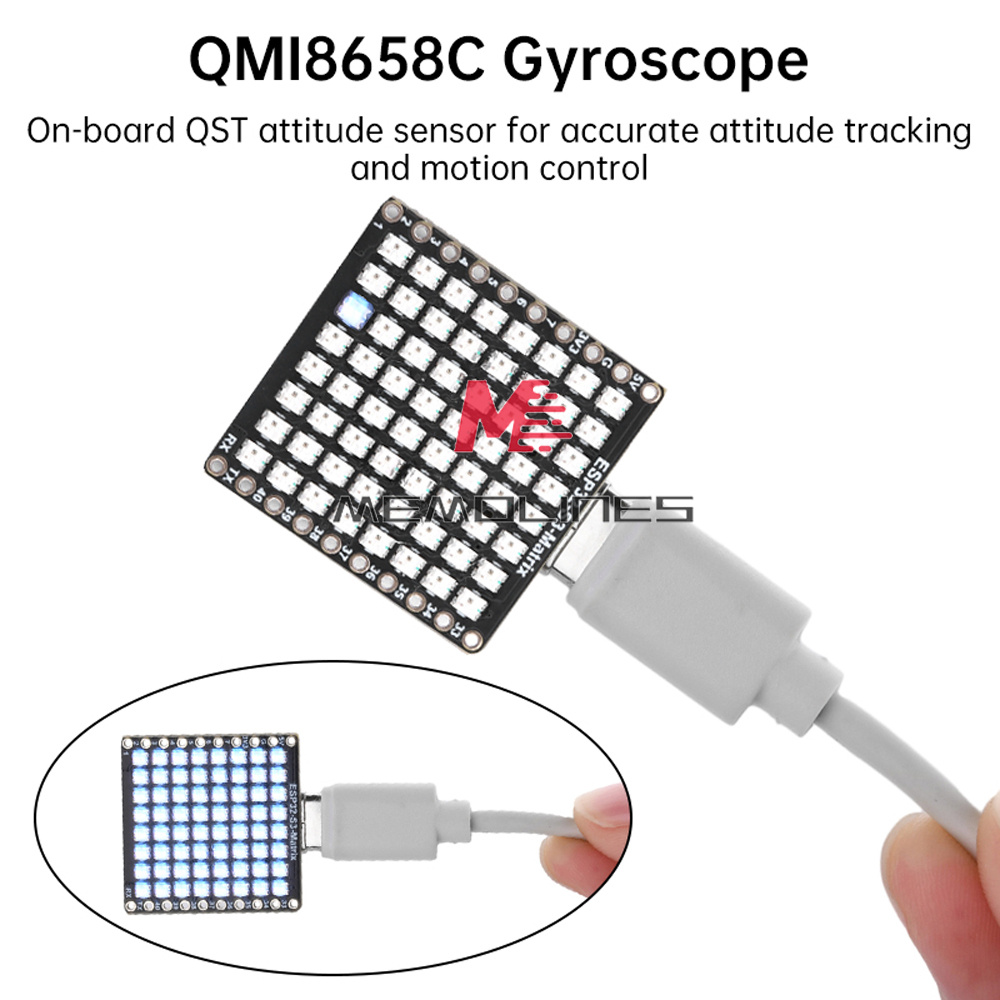

5. Onboard QST Attitude Sensor QMI8658C for accurate attitude tracking and motion control.

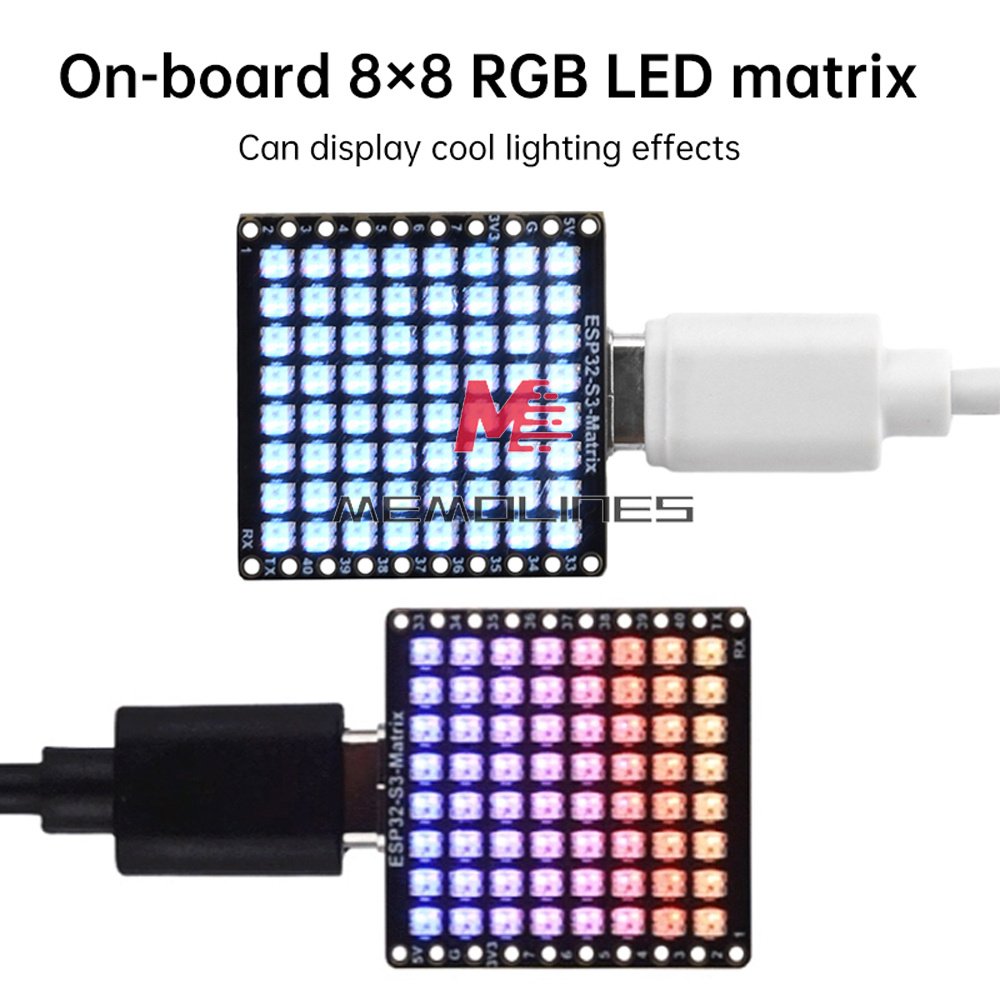

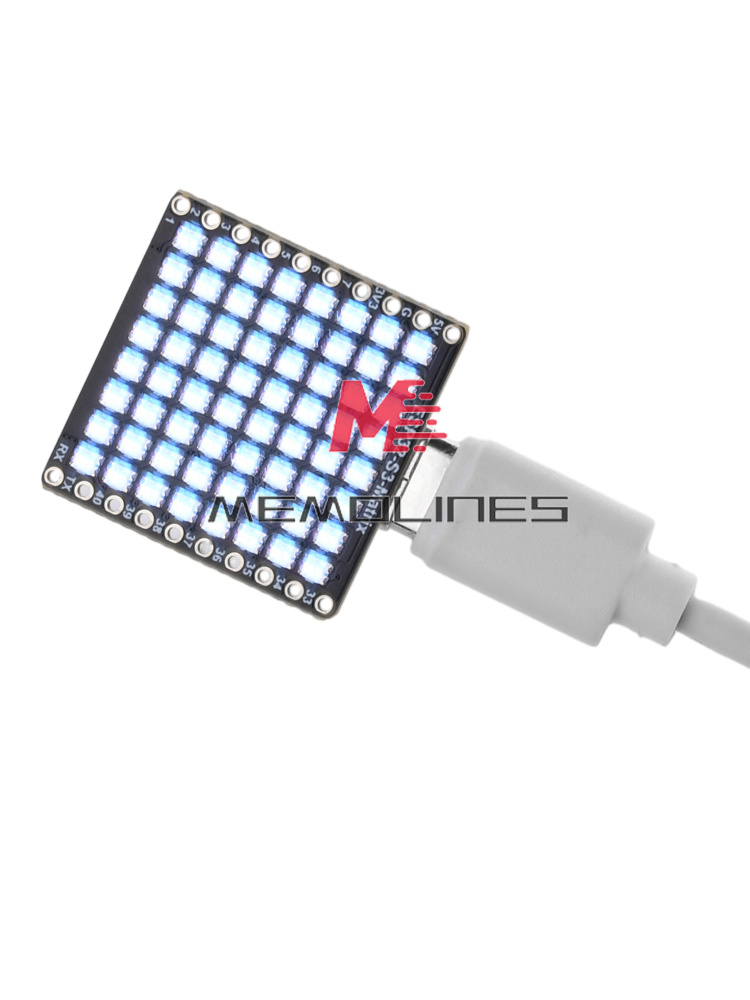

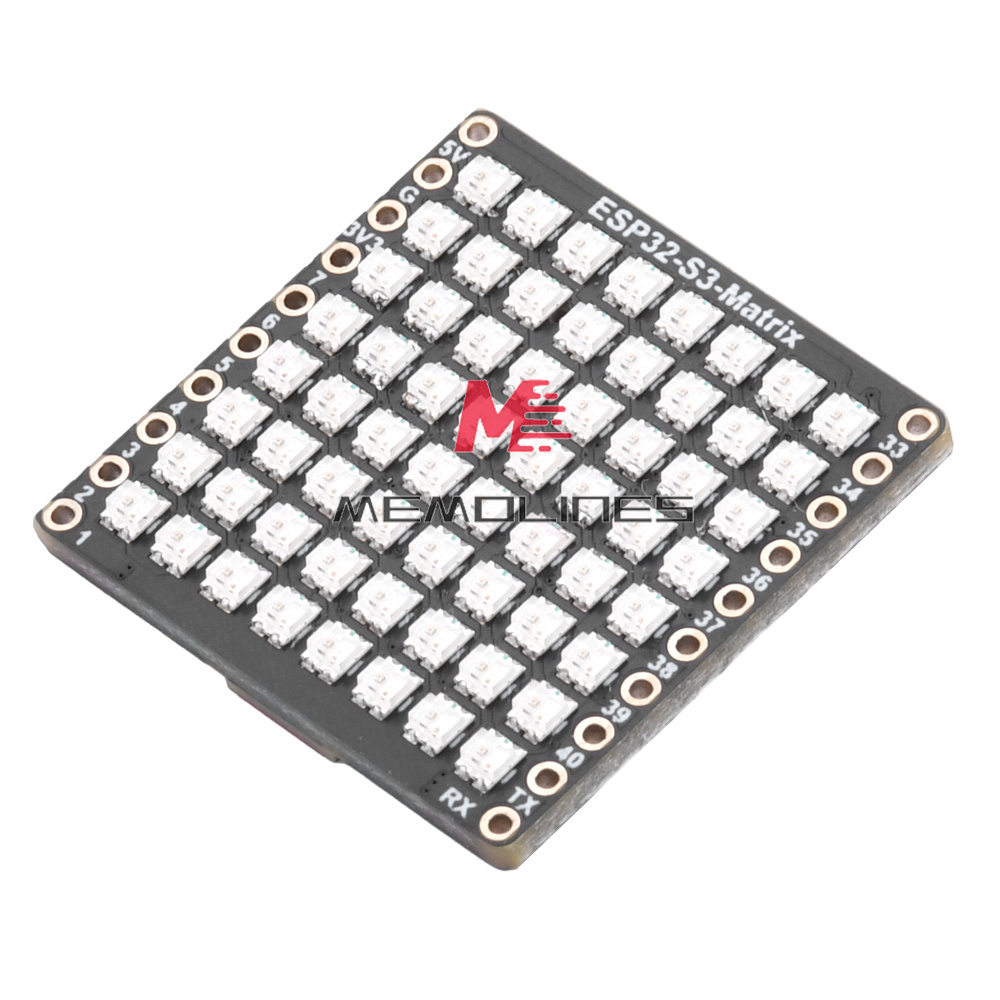

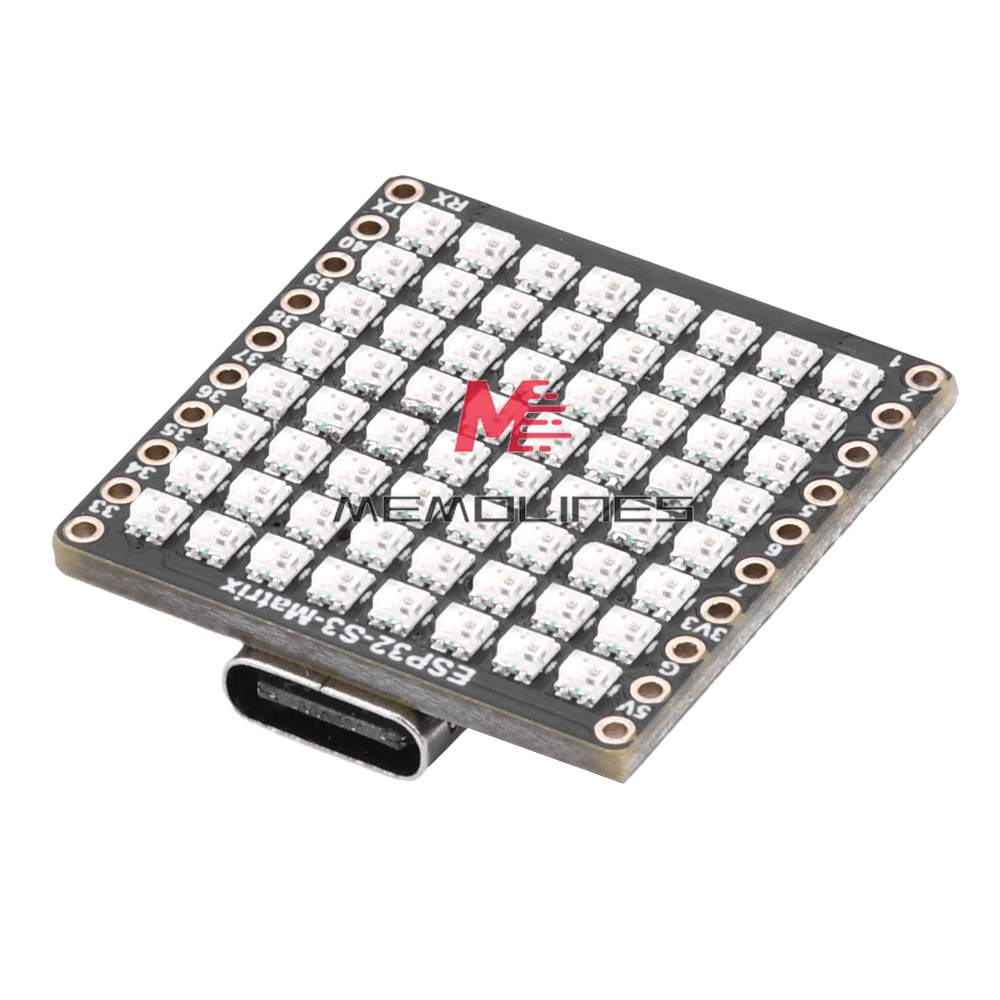

6.8x8 RGB LED matrix on board, can display cool lighting effects.
7.Dout pin for connecting extended RGB matrix.

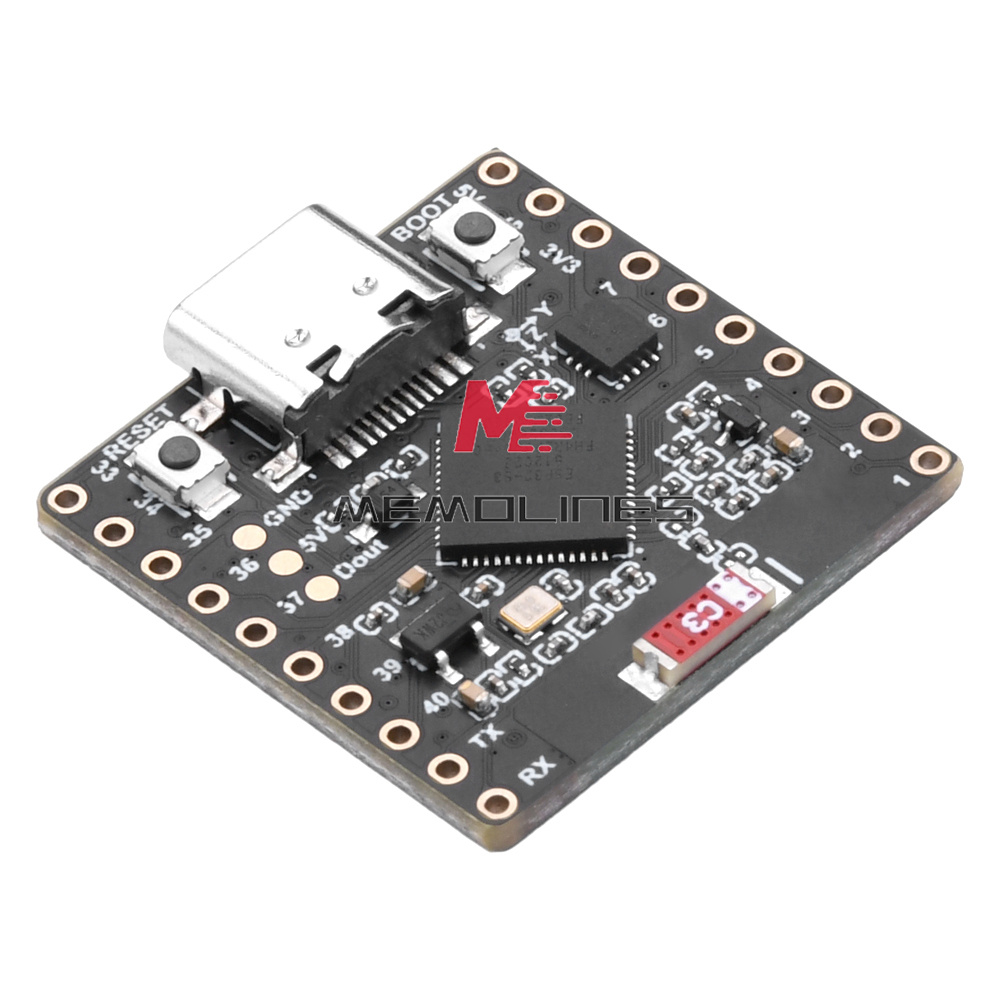

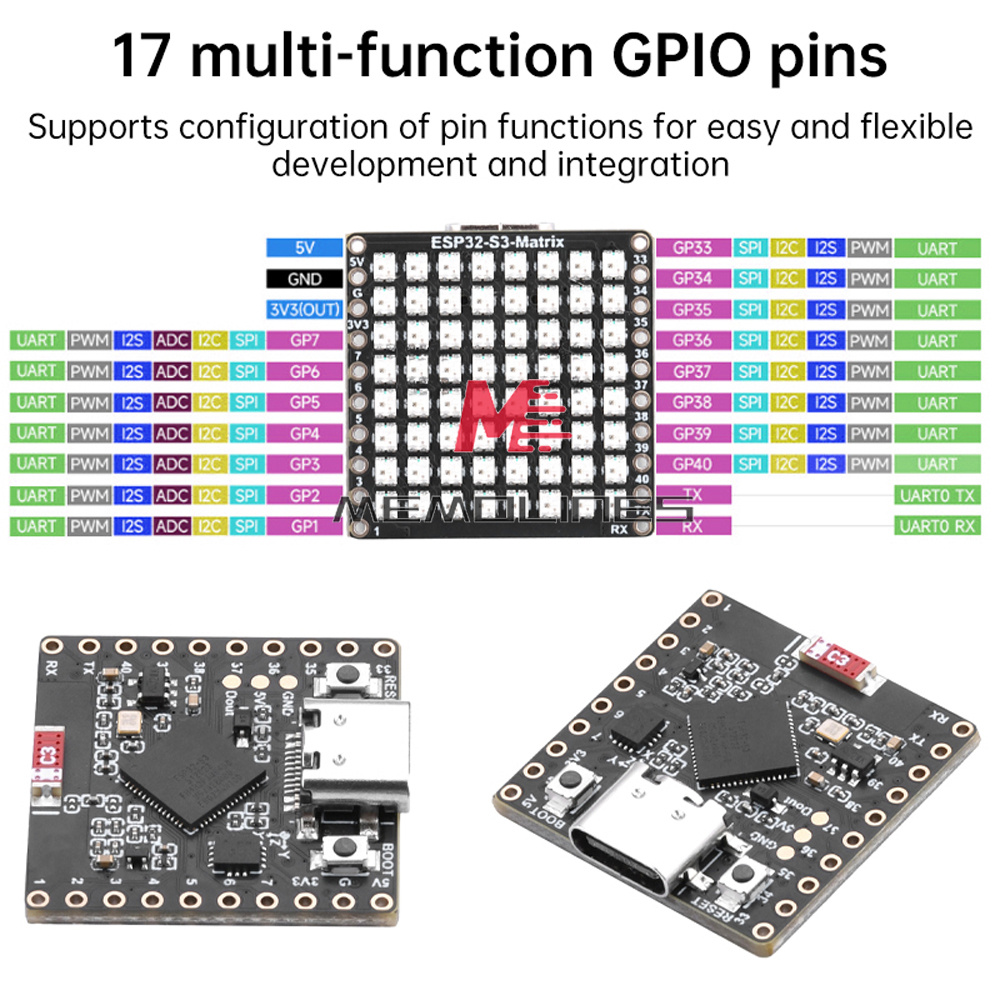

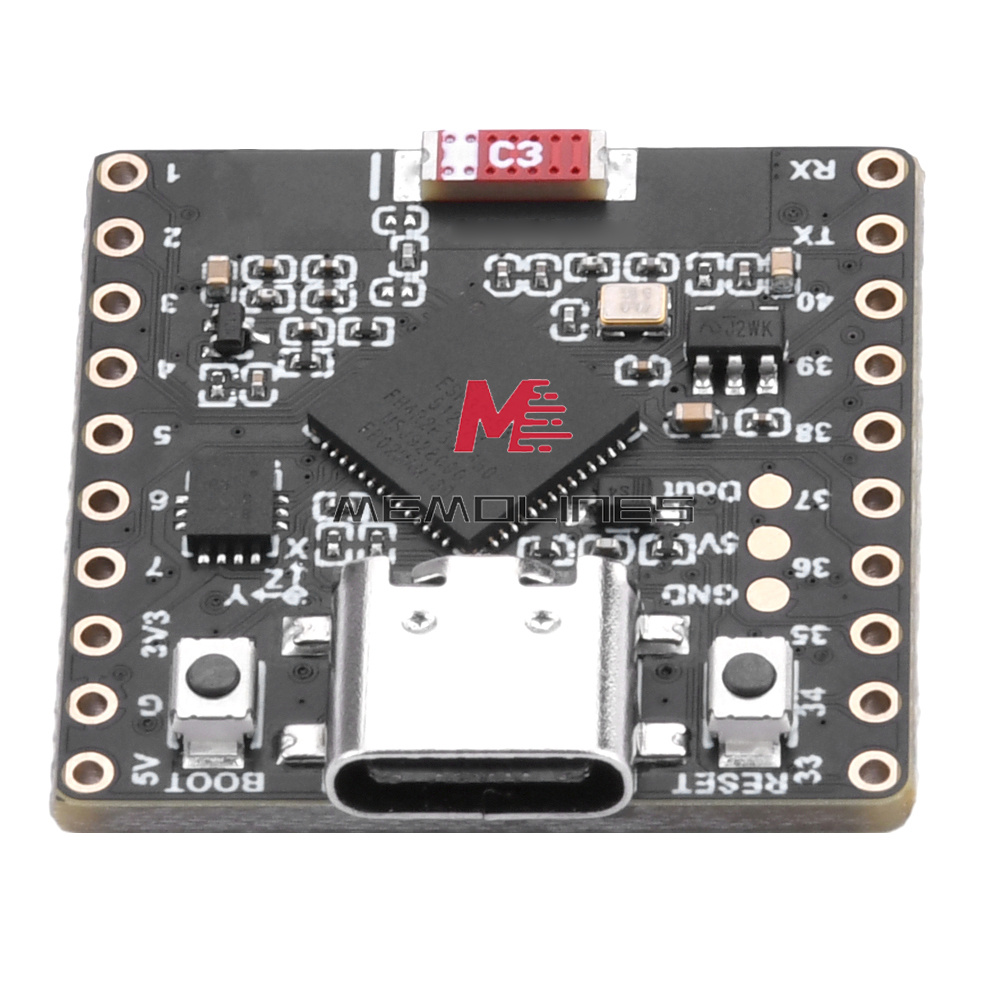

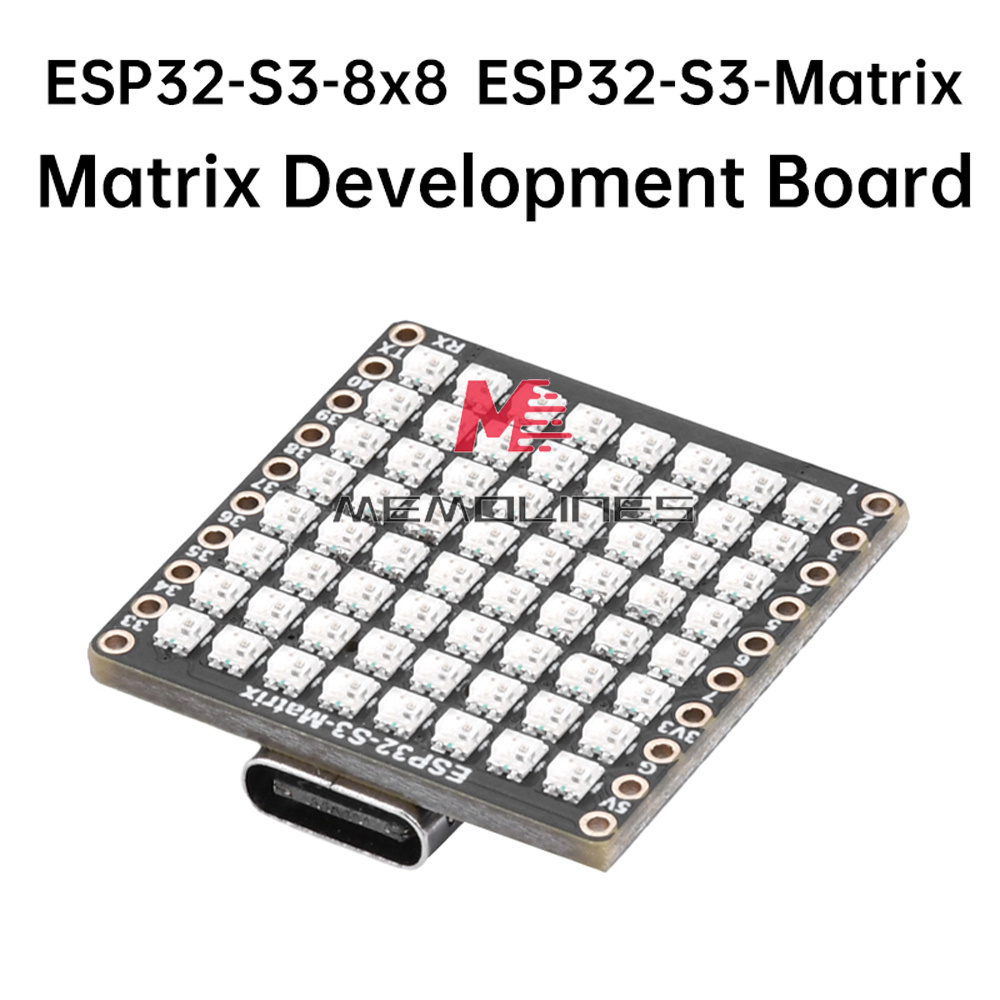

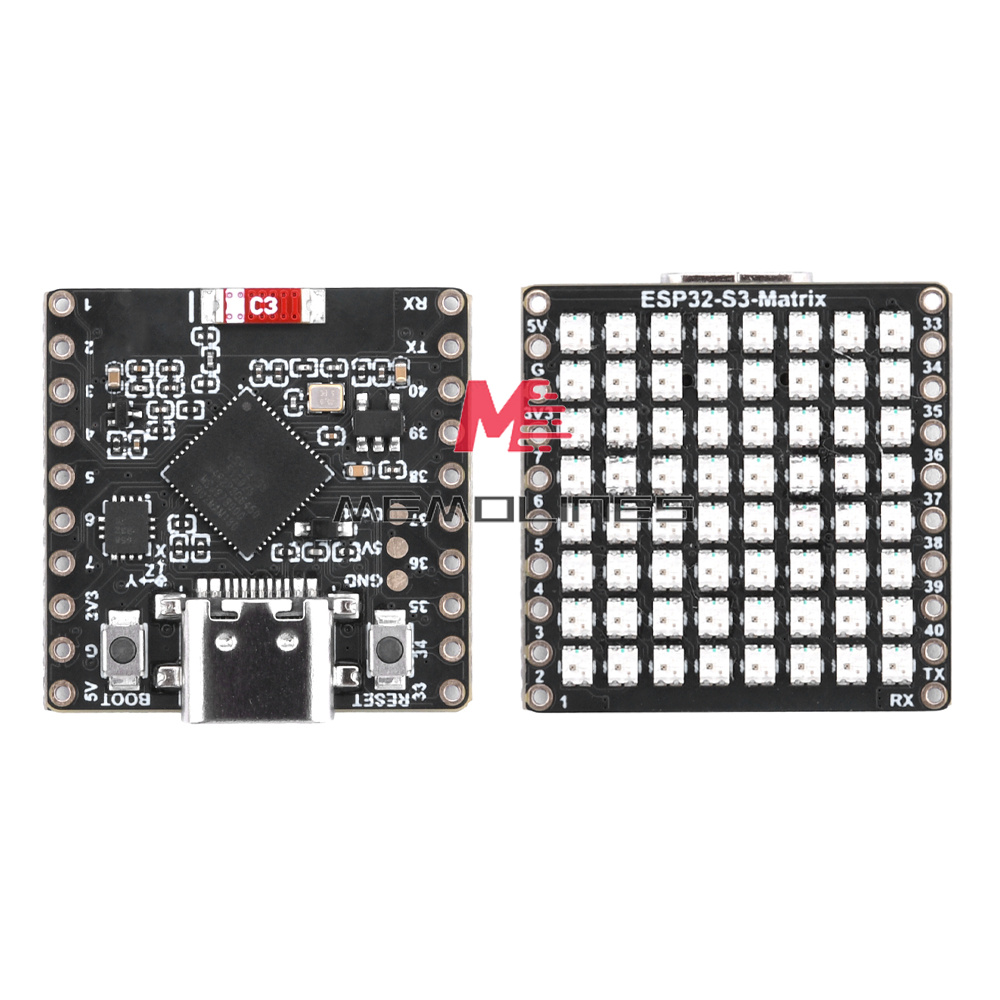

8.ESP32-S3-Matrix micro-development board, based on the ESP32-S3, in a compact version of the ESP32-S3 17 multi-function GPIO pins
9. Has a wealth of peripheral interfaces, can be more flexible to achieve a variety of functions
10. Supports a variety of low-power operating state, can adjust the balance between the communication distance, data rate and power consumption, to meet the power requirements of various application scenarios.
Specification
Interface: TYPE-C
Processor: Xtensa 32-bit LX7 dual-core processor, main frequency up to 240MHz
Memory: integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 4MB Flash
LED:8x8 RGB
GPIO pins: 17
Supporting WIFI and BLE 5, the ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 b/g/n) supporting 40MHz bandwidth and its low
Its low power Bluetooth subsystem supports Bluetooth 5(LE) and Bluetooth Mesh.

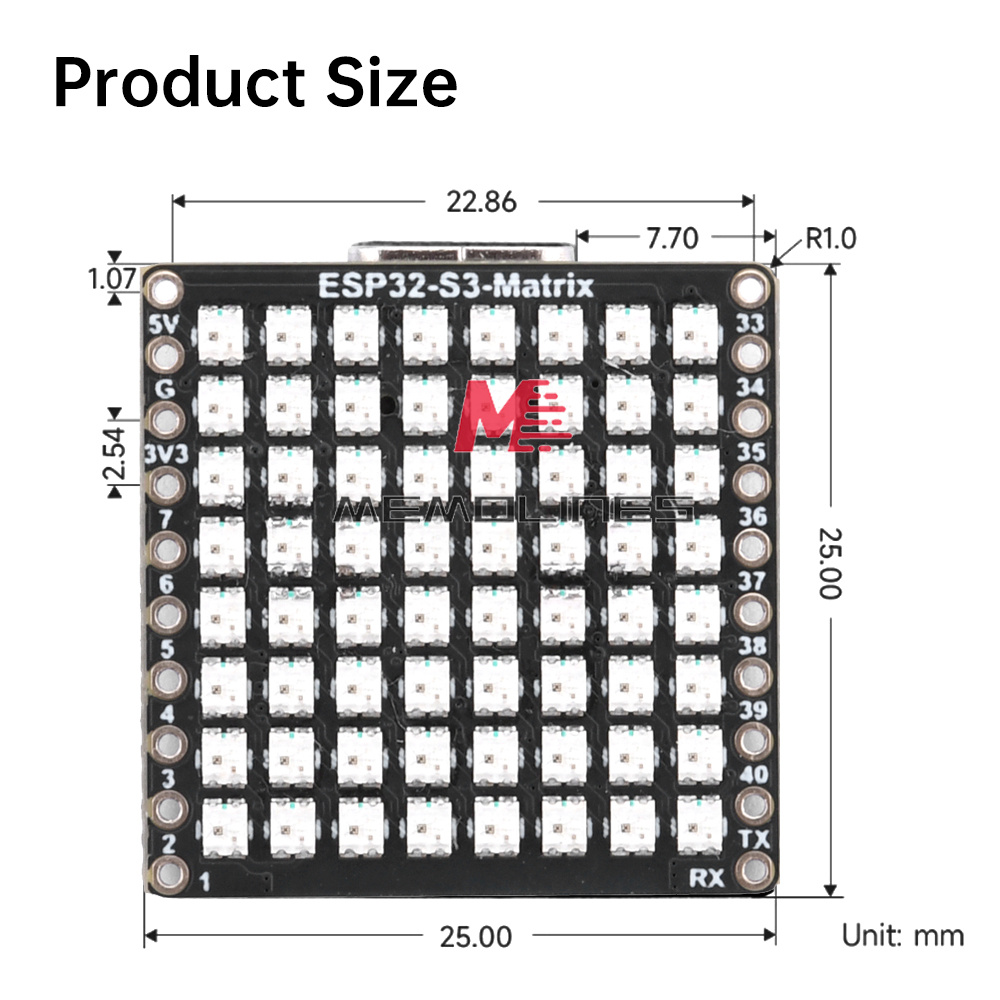

Size: 25mm*25mm
List
1 x Development Board
