Features
1.High-speed optoelectronic isolation, effectively protect computers and circuit board equipment.
2.Support Type C interface, support positive and negative insertion, easy to connect.
3. Isolation voltage over 600V, suitable for high-voltage environment debugging.
4. Two high-speed optocouplers are used for isolation, realizing bidirectional communication of TTL serial port.
5. Compact appearance design, adapt to a variety of environmental requirements.

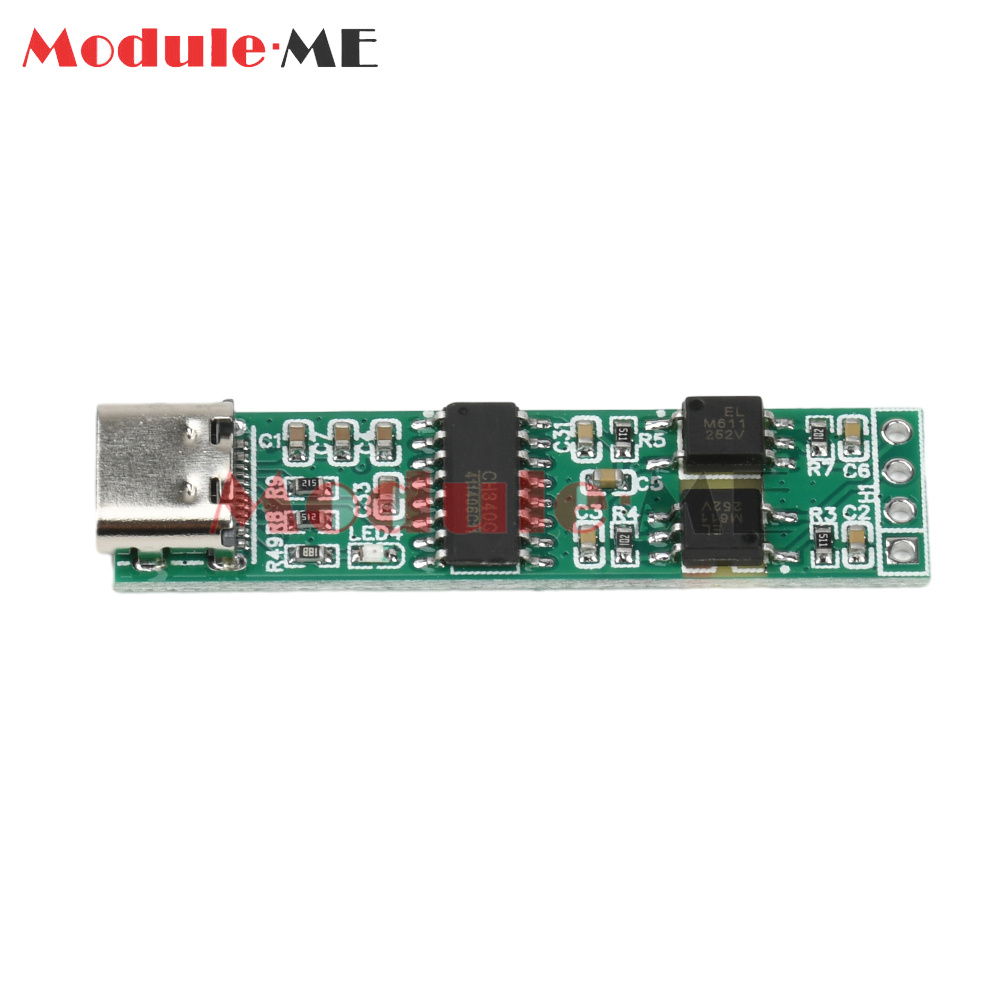

Overview
Adopting Type C interface opto-isolated USB to serial port, compared with the ordinary USB to serial port is non-isolated, the circuit board end and the computer is not electrically isolated, it is easy to damage the host computer or the circuit board. The opto-isolated USB to serial module

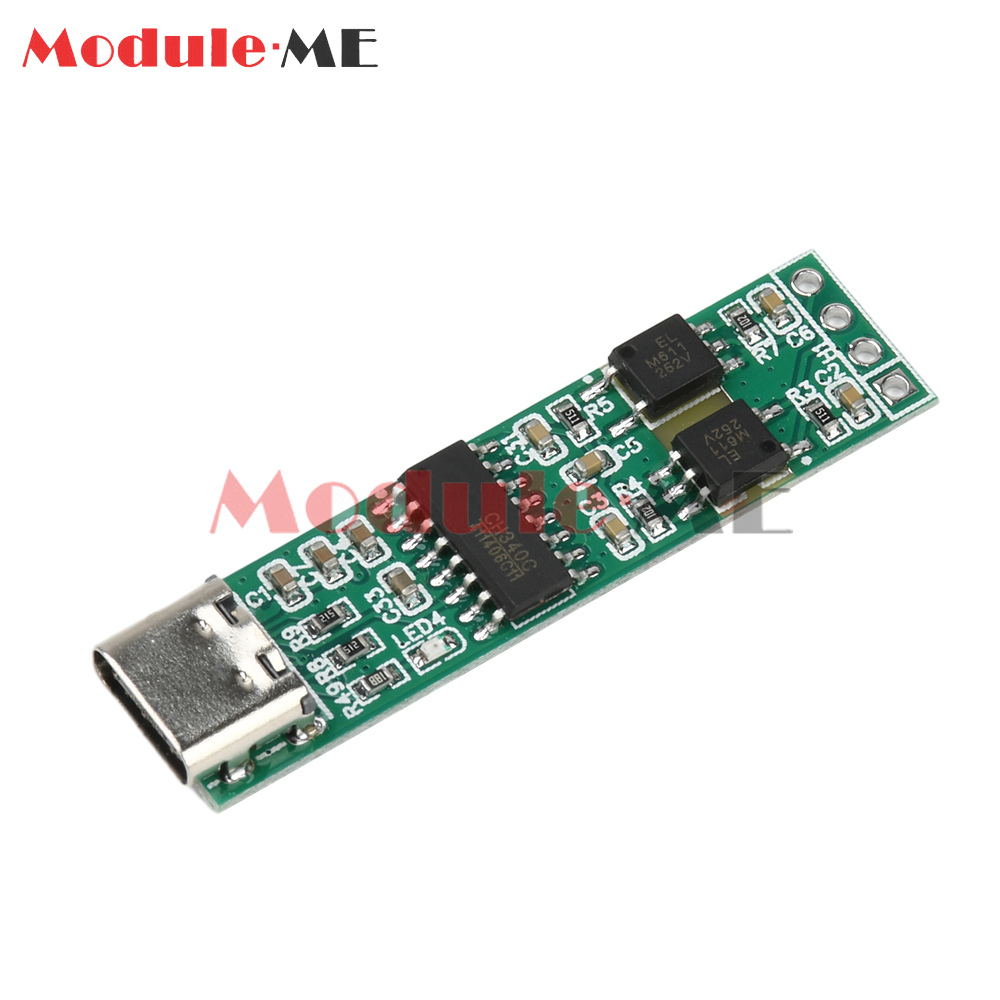

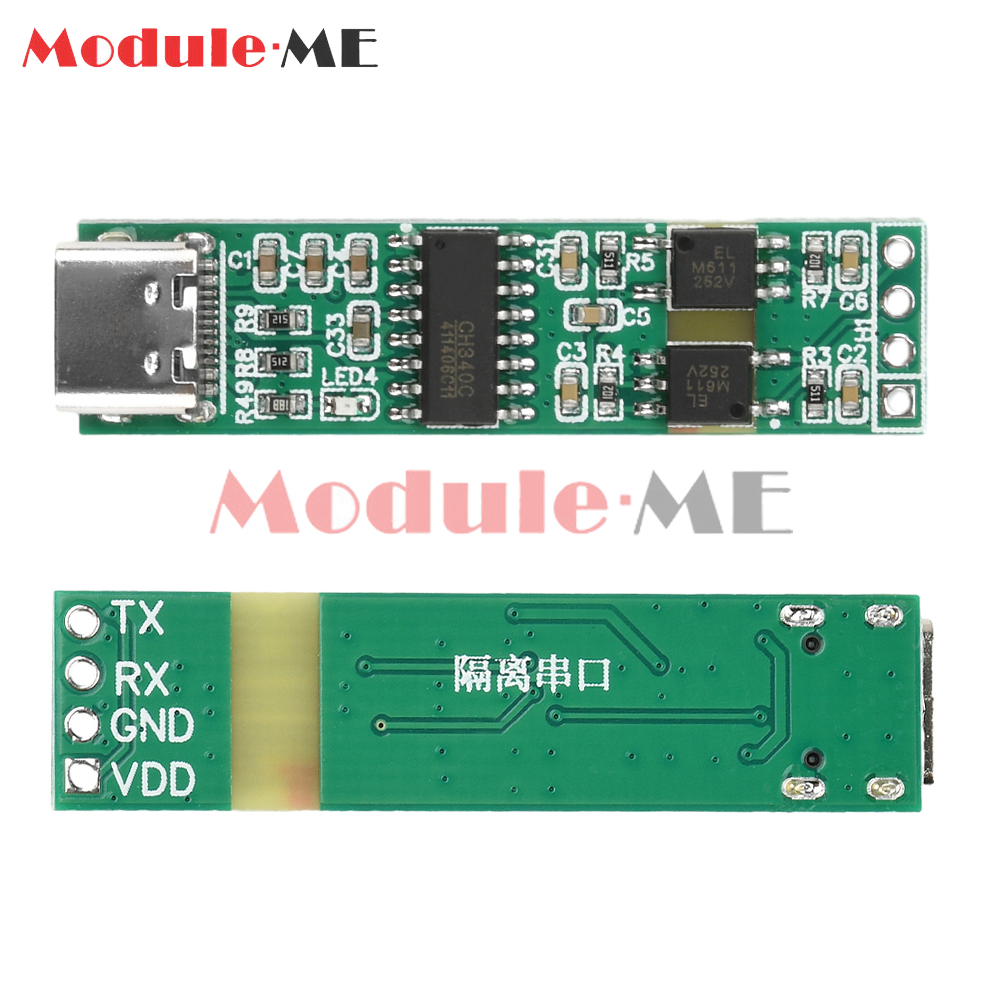

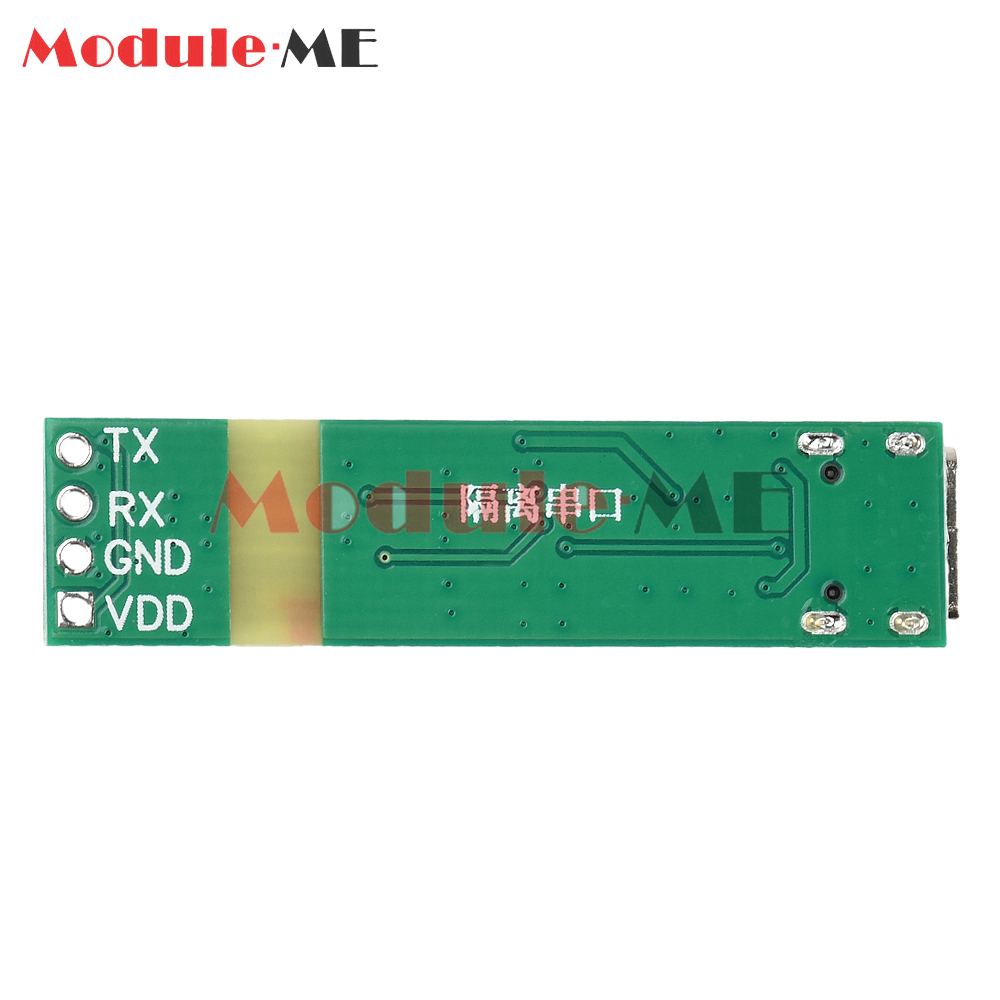

This opto-isolated USB to serial module adopts two high-speed optocouplers for isolation, realizes TTL serial port bidirectional communication, and the isolation voltage is more than 600V, which can be used for serial debugging of high and low voltage brushless DC motors (BLDC) or high and low voltage numerical control power supply control chip (MCU). Because of the TYPE-C interface, for computers with TYPE-C interface can be directly inserted into the USB interface, for only USB-A interface can be connected with an ordinary TYPE-C cable.
Specification
Interface: Type C
Voltage: 3.3V/5V

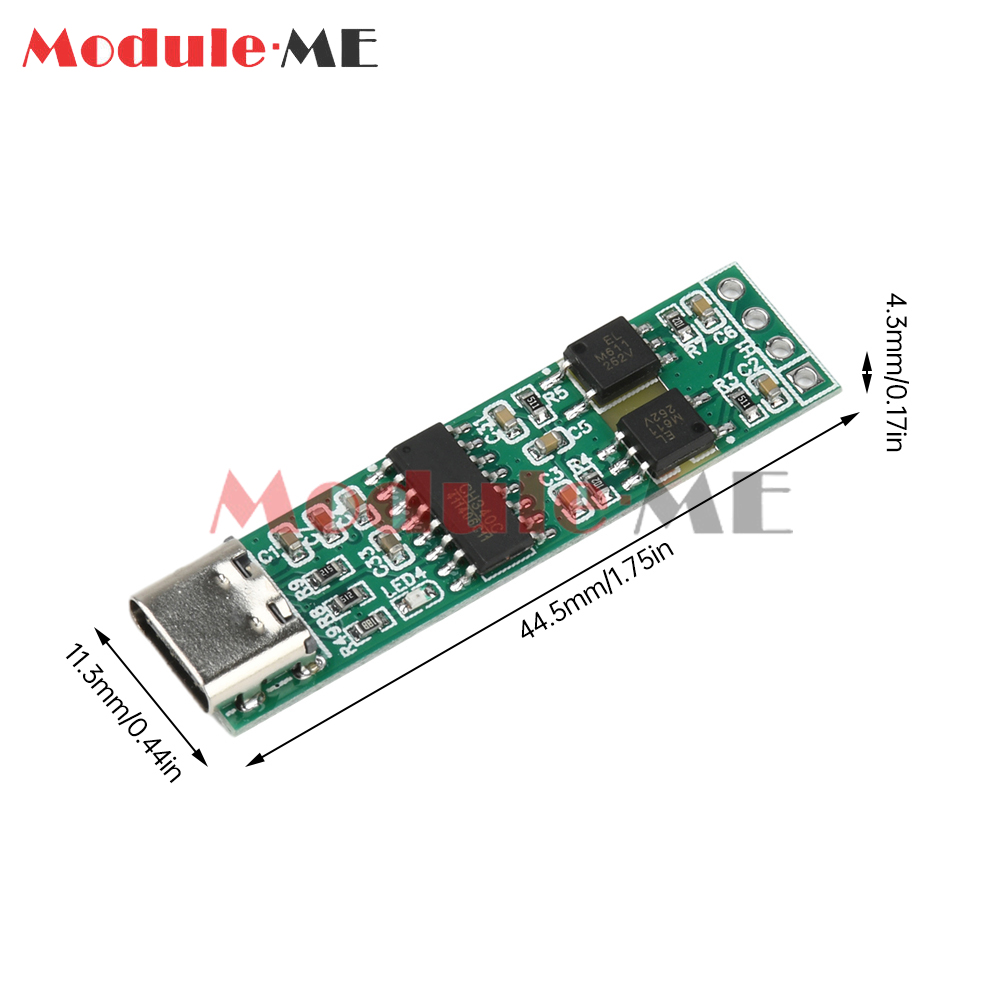

Size: 44mm * 11mm

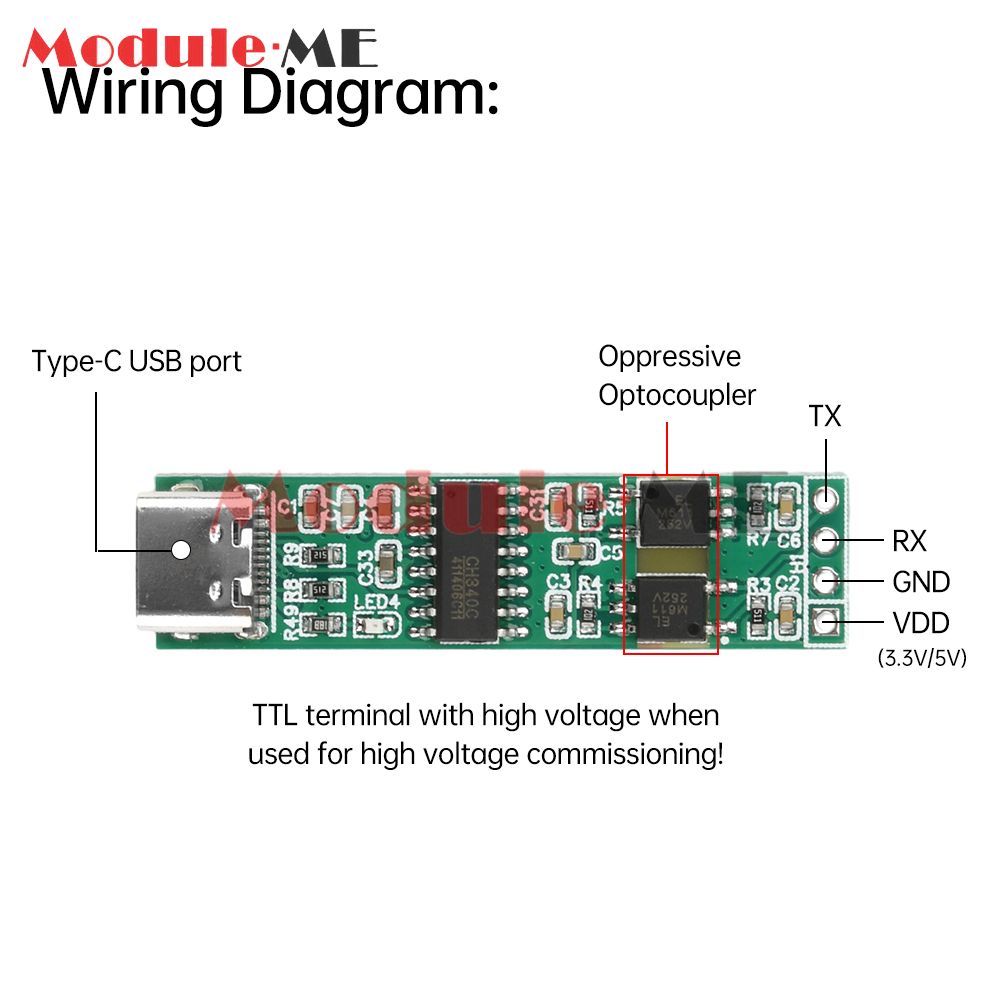

Note: When used for high-voltage circuit board debugging, the TTL serial port end of the high-voltage electricity exists, do not touch the part of the circuit.
Package Includes
1 x Module
