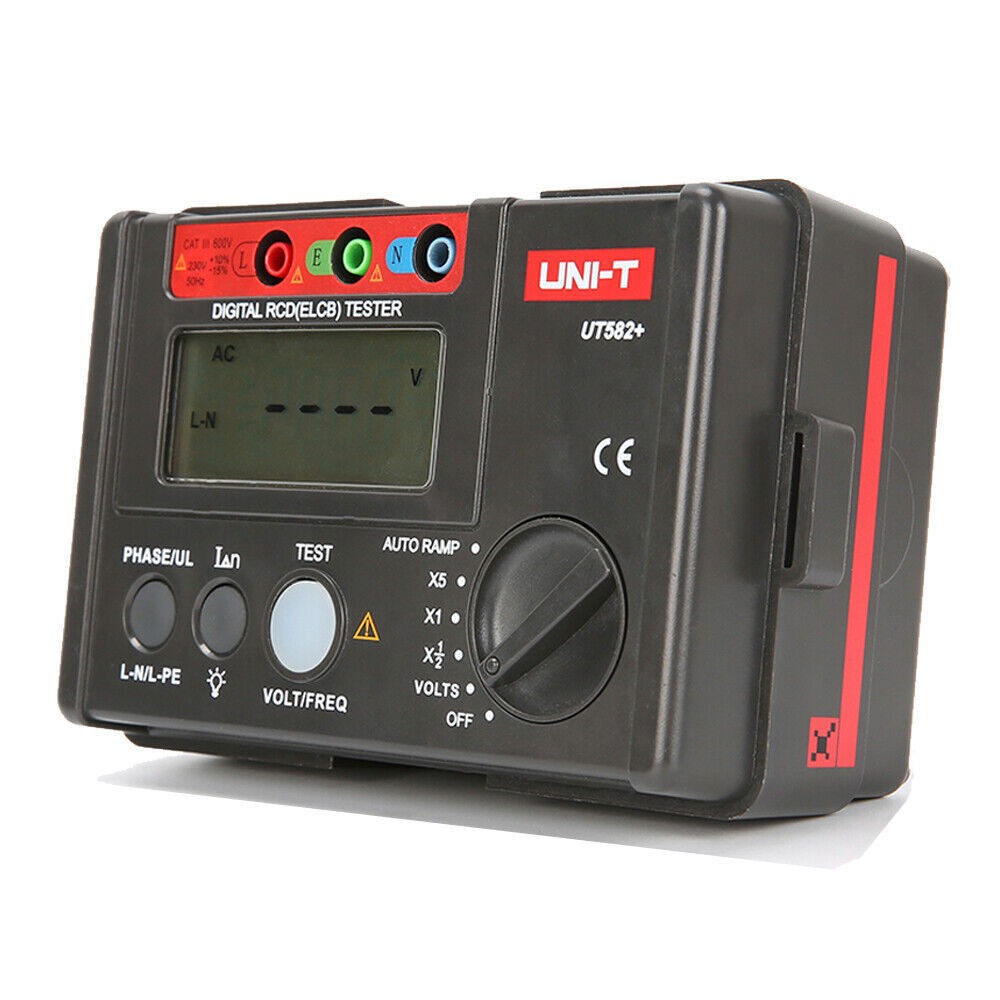

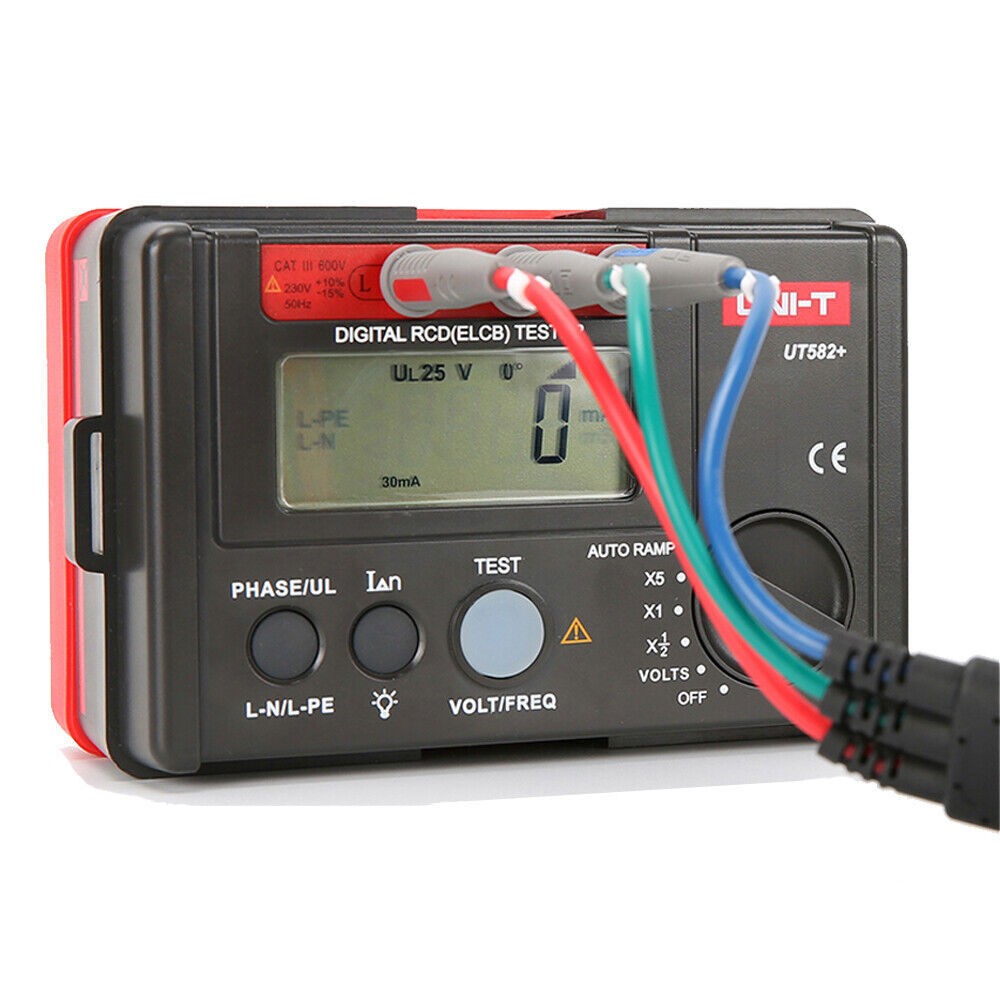

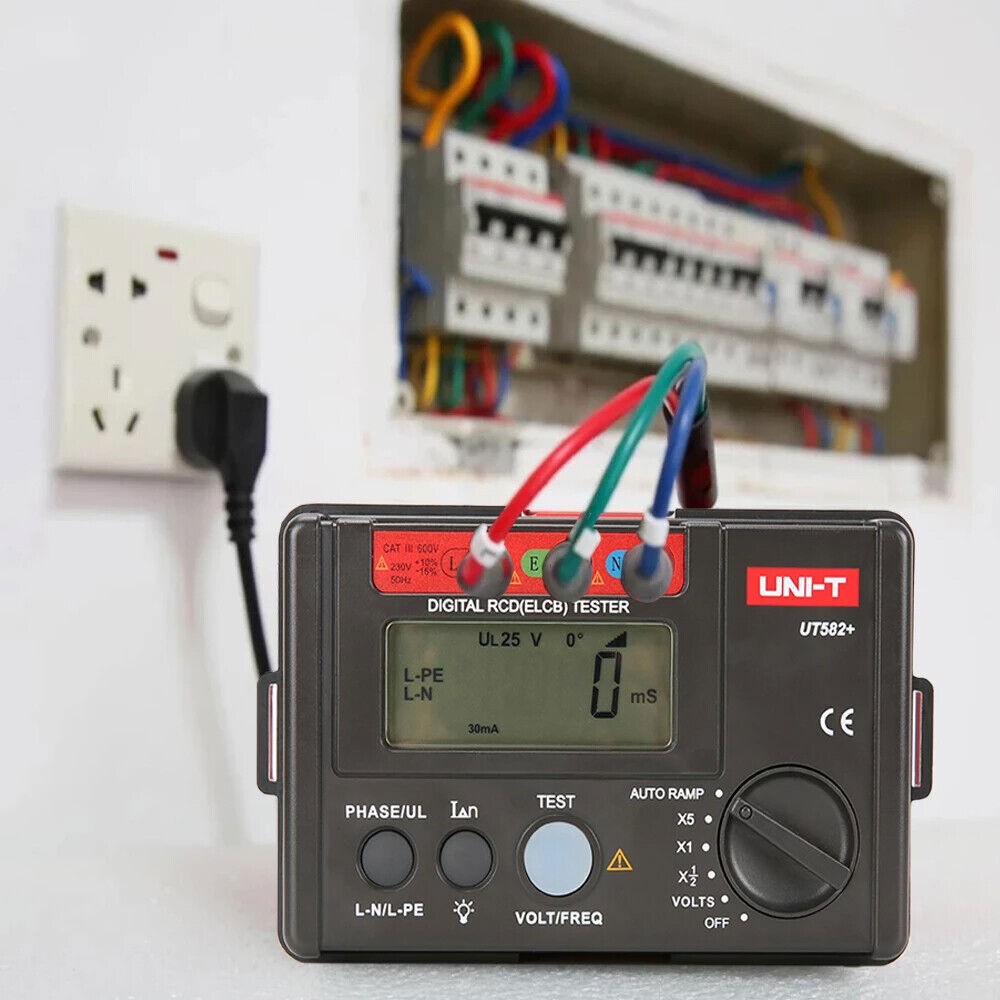

UNI-T UT582+ Digital RCD ELCB Tester AUTO RAMP Leakage Protection Switch Tester

Description:

UT582+ is mainly used to detect whether the RCD in the circuit canbe triggered normally. It is only suitable for single-phase circuitswith the supply voltage range of 195V~253V. Its voltage measurementrange is 30V~600V, 45Hz ~65Hz.

Features:

1.RCD test wiring check;

2.RCD test phase angle selection (positive 0〫and negative 180 〫half cycle test)

3.Contact voltage alarm (UL25V or UL50V)

4.Automatic data retention

5.Overrange display

6.FUSE security protection

7.AUTO RAMP test (20%~110% step function, 10% increase step) 8.simultaneously displays trip time and operating current

9.Auto power off function, backlight function

10.Voltage and frequency test function (voltage 30V~600V frequency: 45Hz~65Hz)

11.Battery powered 6x 1.5V AAA batteries (NOT include)

12.Double insulated or reinforced insulation safety construction

Specifications		Range		Accuracy
RCD measurement	Range setting	Rated operating current	Trip time
	X 1/2	10mA/20mA/30mA/100mA/300mA/500mA	2000ms	-10%~0%
	X 1	10mA/20mA/30mA/100mA/300mA	1000ms	0%~10%
		500mA	300ms	0%~10%
	X 5	10mA/20mA/30mA	40ms	0%~10%
	AUTO RAMP	10mA/20mA/30mA/100mA/300mA/500mA	300ms	-10%~10%
	Trip time accuracy	±(2%+2)
	Operating voltage (Freq.)	195V~253V
Voltage measurement	Voltage range	30~600V
	Frequency	45Hz~65Hz
	Resolution	1V
	Accuracy	±(3%+3)
Display count	999
Power oﬀ gear	√
Low battery indication	<7.2V
APO	Auto power oﬀ fuction
LCD backlight	√
Data hold	√
Phase angle selection	0° and 180°
Connections check	Simultaneously test the trip time and trip current
AUTO RAMP	√
Disconnect buzzer	√
Over-range display	OL
Fused	√
Mis-operation buzzer	√
Power oﬀ buzzer	√
Full icon display	√
Compliance standard	IEC 61010-1, IEC 61010-2-030, IEC 61010-2-033, IEC 61557-1:2007;IEC 61557-6:2007, EN61326-1, EN61326-2-2
Lead sequence check	LCD
General Characterisitics
Power	6x 1.5V AAA battery (not include battery)

What's in Package:

1x UT582+ Digital RCD ELCB Tester

1x Three terminal test leads

1x Test line

1x Carrying bag

1x Box
