| Networking Interface | (1) GbE RJ45 port |
| Power Supply | 54V DC output: AC/DC, internal, 645W
12V DC output: AC/DC, internal, 350W |
| Power Method | (1) Universal AC input, 100–240V AC |
| Max. Power Consumption | 995W |
| Dimensions | 442.4 x 325.6 x 43.7 mm
(17.4 x 12.8 x 1.7") |
| Weight | Without mount brackets : 5.5 kg (12.1 lb)
With mount brackets: 5.6 kg (12.3 lb) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Buttons | (1) Factory reset |

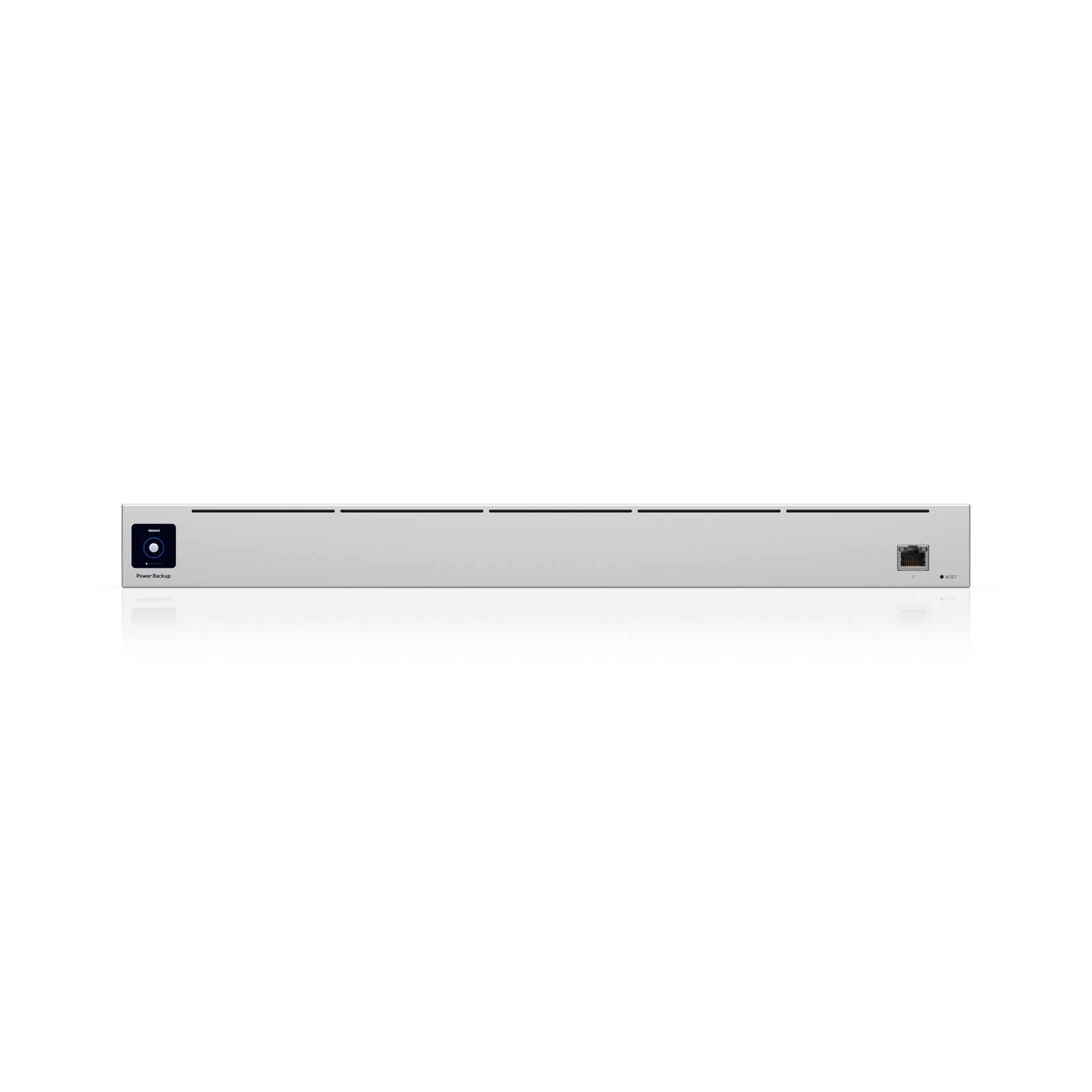

| Display | 1.3" touchscreen |
| ESD/EMP Protection | Air: ± 16kV, contact: ± 12kV |
| Enclosure Material | SGCC steel |
| Management | Ethernet |
| Max. Output Power per RPS Port | 52V DC: 11.54A (600W)
11.5V DC: 30.44A (350W) |
| Max. Power Output | 52V DC: 11.54A (600W)
11.5V DC: 30.44A (350W) |

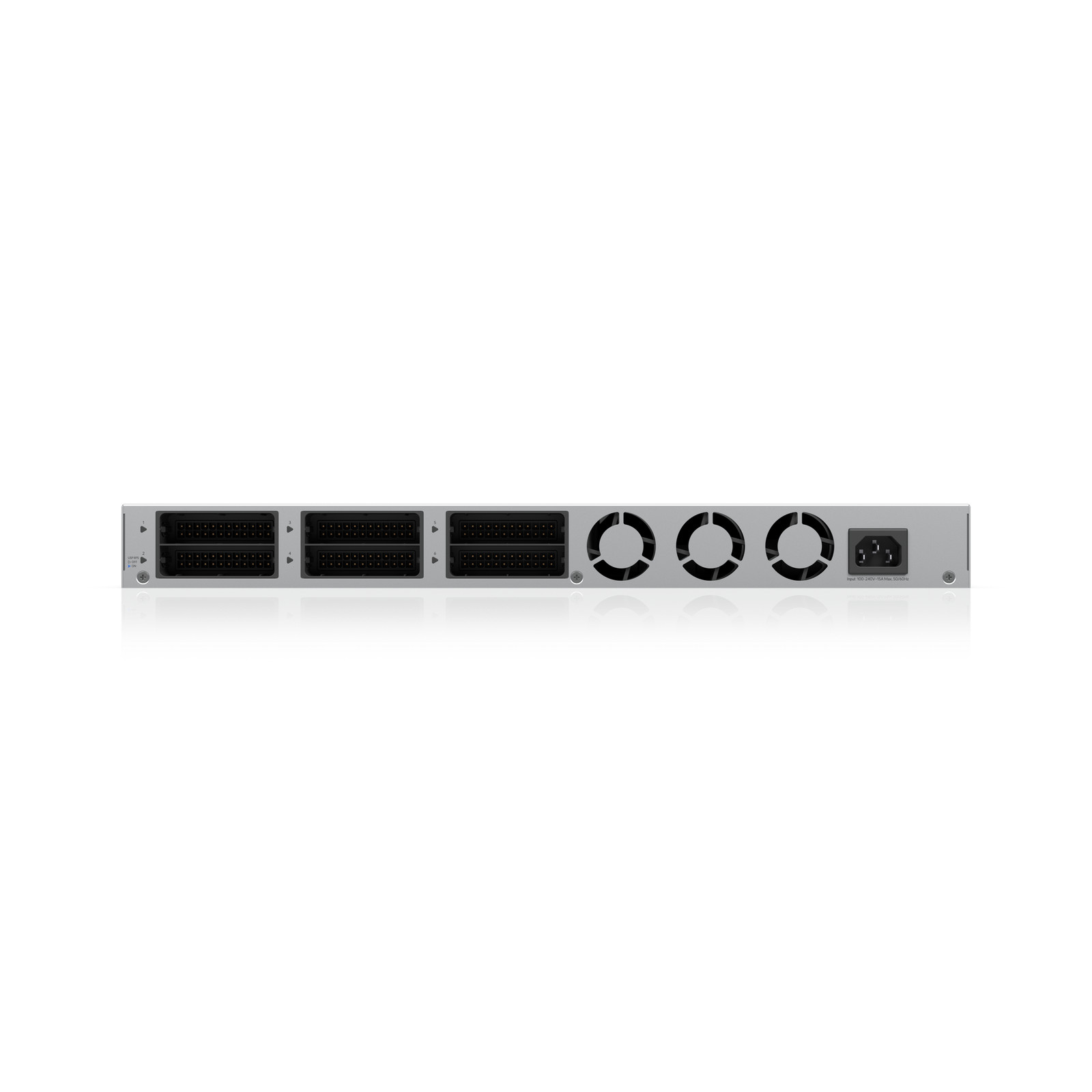

| Power Output | (6) RPS DC ports |
| Supported Voltage Range | 100–240V AC |
| System | Status |
| USP RPS | Activity |
