100% Brand new and high quality.
Shape: Same as the picture show
Module main technical parameters:
1.Working Voltage : 5V(DC)
2.Static current: Less than 2mA.
3.Output signal: Electric frequency signal, High Level 5V, Low Level 0V.
4.Input trigger Signal: 10us TTL impulse
5.Echo Signal : output TTL PWL Signal
6. Trigger Pulse Input
7. Echo Pulse Output
Use method:
Supply module with 5V, the output will be 5V while obstacle in range, or 0V if not.The out pin of this module is used as a switching output when anti-theft module, and without the feet when ranging modules.
Note : the module should be inserted in the circuit before been power, which avoid producing high level of misoperation;if not, then power again.
Module Working Principle:
1.Adopt IO trigger through supplying at least 10us sequence of high level signal.
2.The module automatically send eight 40khz square wave and automatically detect whether receive the returning pulse signal.
3.If there is signals returning, through outputting high level and the time of high level continuing is the time of that from the ultrasonic transmitting to receiving. Test distance = (high level time * sound velocity (340M/S) / 2.
Note : This module is not suitable to connect with electric power, if you need to connect this module with electronic power,then let the GND terminal of this module to be connected first,otherwise, it will Affect the Normal work of the Module
Please select the quantity you want:

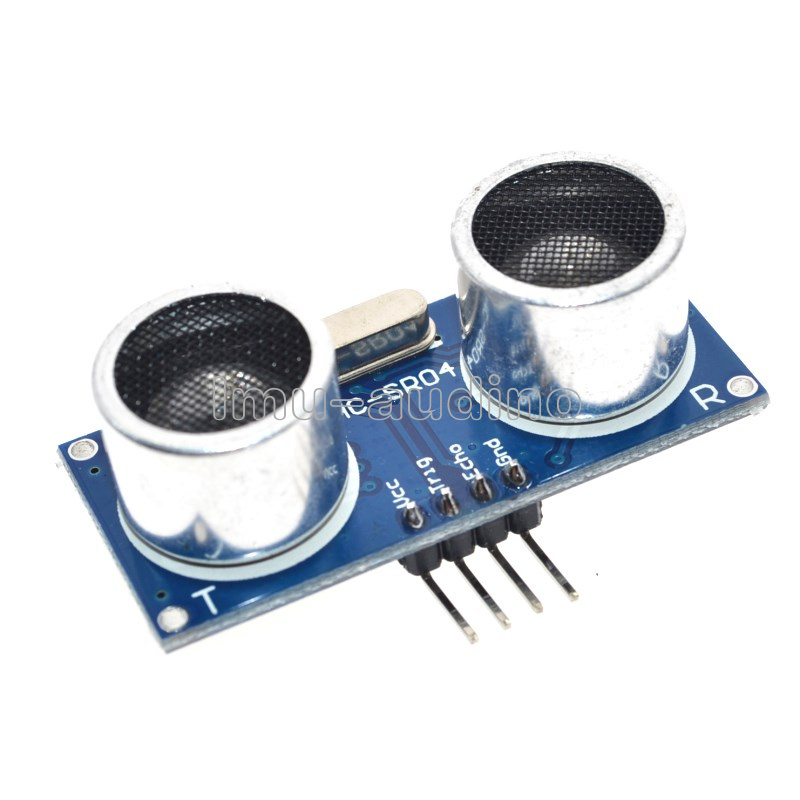

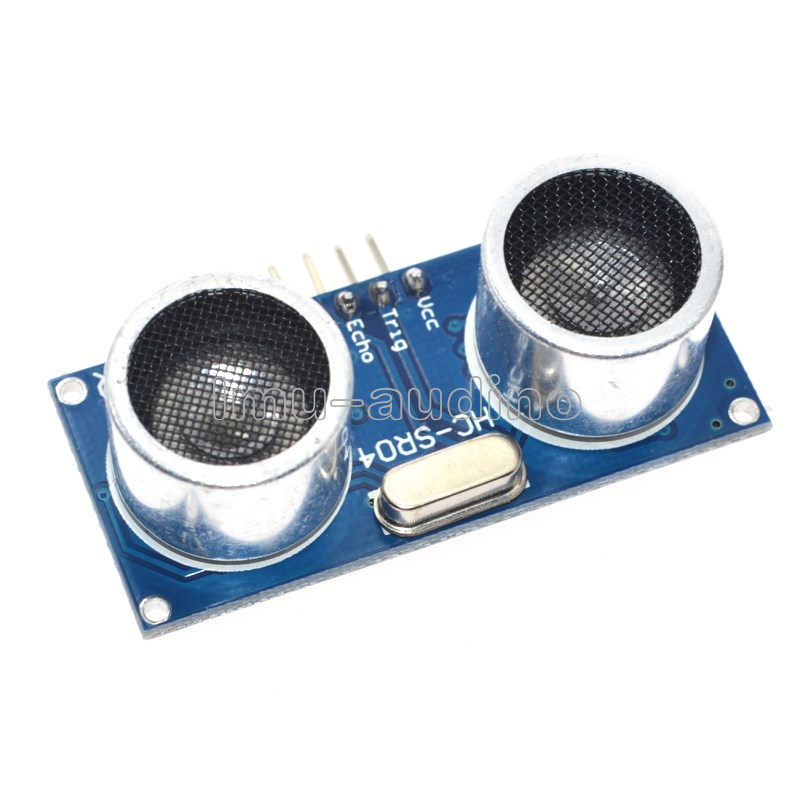

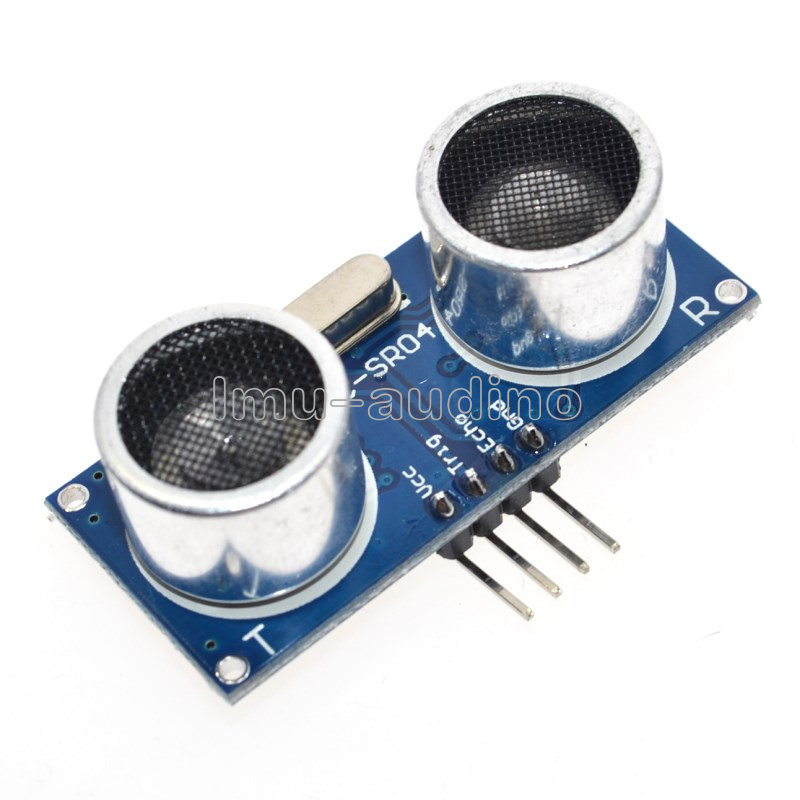

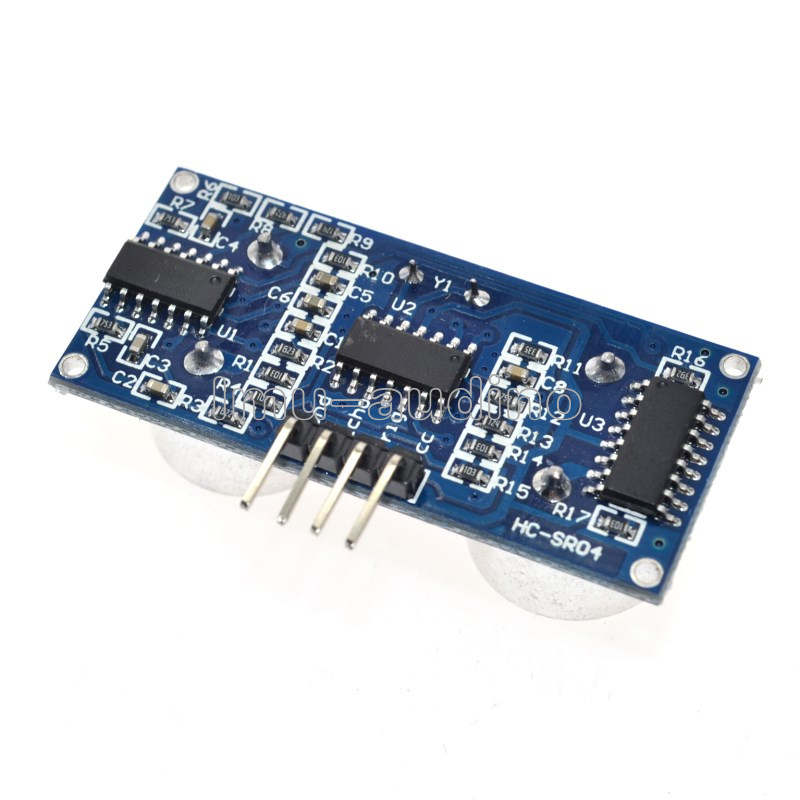

1 x HC-SR04 Ultrasonic Module
5 x HC-SR04 Ultrasonic Module
Note: We only provide the hardware,If you need software, Please search on Google.
(We have a lot of Stocks,if you need more, please contact us.)
