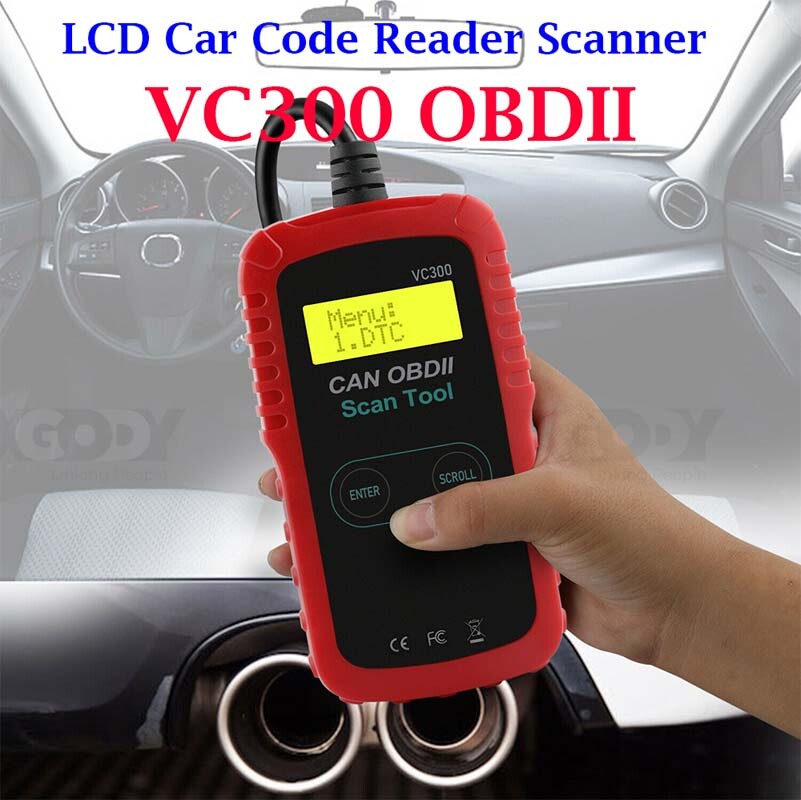

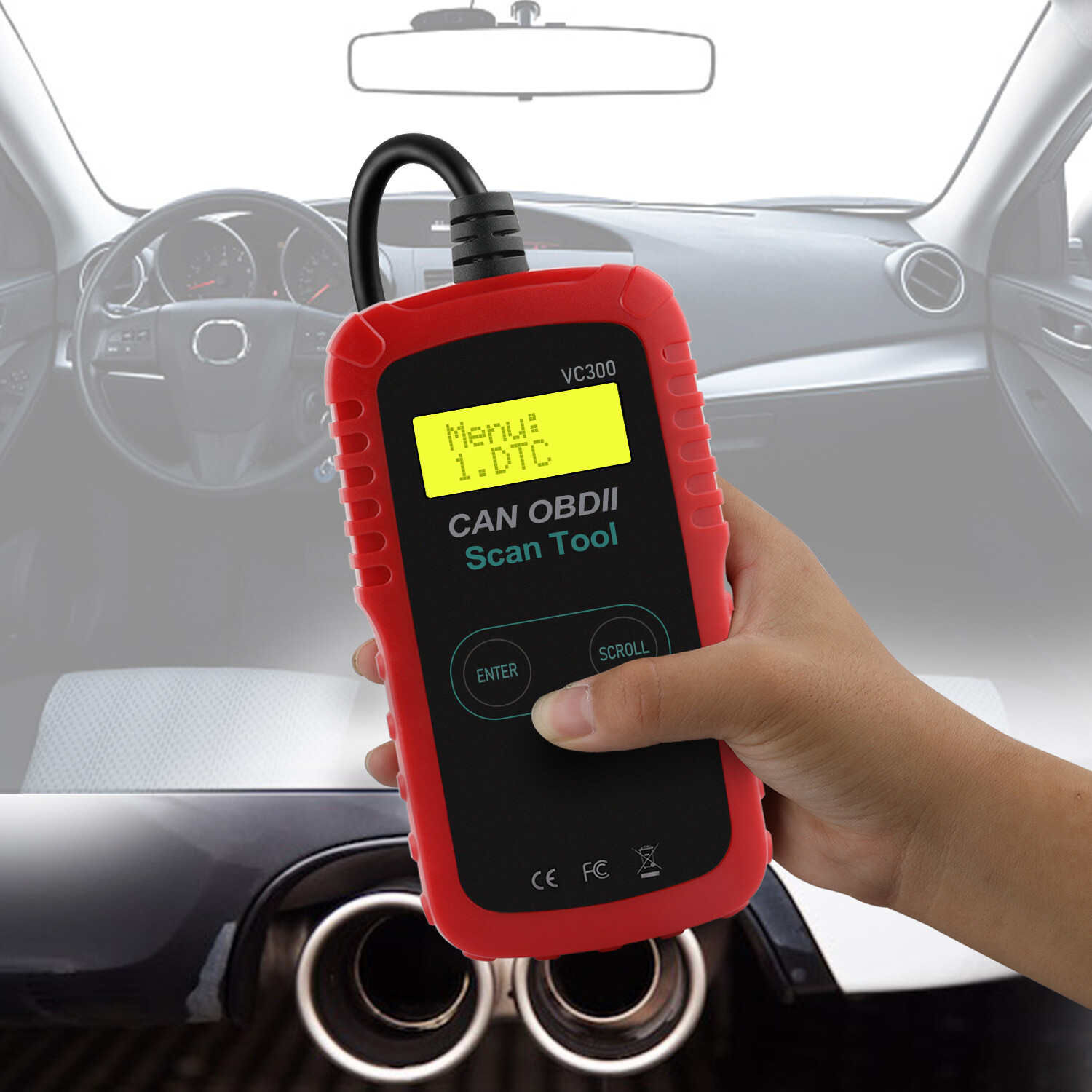

Universal OBD2 OBDII Car Code Reader Scanner Check Engine Fault Diagnostic Tools
US
$16
DESCRIPTION
Universal Car OBD2 Scanner OBD2 Engine Fault Diagnostic Scan Tool Interface Tool Support SAE J1850 Protocol
Product Features:
-
Work with all 1996 and newer vehicles that are OBD II compliant (including CAN)
-
Read and clear generic and manufacturer specific Diagnostic Trouble 3.Codes (DTCs) and turn off check engine light
-
Support multiple trouble code requests: generic codes, pending codes and manufacturer specific codes
-
Review the emission readiness status of OBD monitors
-
Determine the malfunction indicator lamp (MIL) status
-
Retrieve VIN (Vehicle Identification No.) on 2002 and newer vehicles that support Mode 9
-
Easy to use with one plug-in
-
No batteries needed-powered via detachable OBD II cable
Specifications:
Type:Car Scanner
Model:VC300 OBD2
Display:Backlit LCD, 2-line, 8 characters
Operating Temperature:0 to 50 C (32 to 122 F)
Storage Temperature:-20 to 70 C (-4 to 158 F)
Power:10.0 to 15.5 Volts provided via vehicle battery
Weight:300g
Size: 120 mm (4.7") x 65 mm (2.6") x 21mm (0.83")
Package dimensions:26X16X5CM
Type:Car Scanner
Model:VC300 OBD2
Display:Backlit LCD, 2-line, 8 characters
Operating Temperature:0 to 50 C (32 to 122 F)
Storage Temperature:-20 to 70 C (-4 to 158 F)
Power:10.0 to 15.5 Volts provided via vehicle battery
Weight:300g
Size: 120 mm (4.7") x 65 mm (2.6") x 21mm (0.83")
Package dimensions:26X16X5CM
Color:as shown
Supported Protocol:
SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud)
ISO9141-2(5 baud init, 10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
Please Note :
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3cm measuring deviation due to manual measurement.
