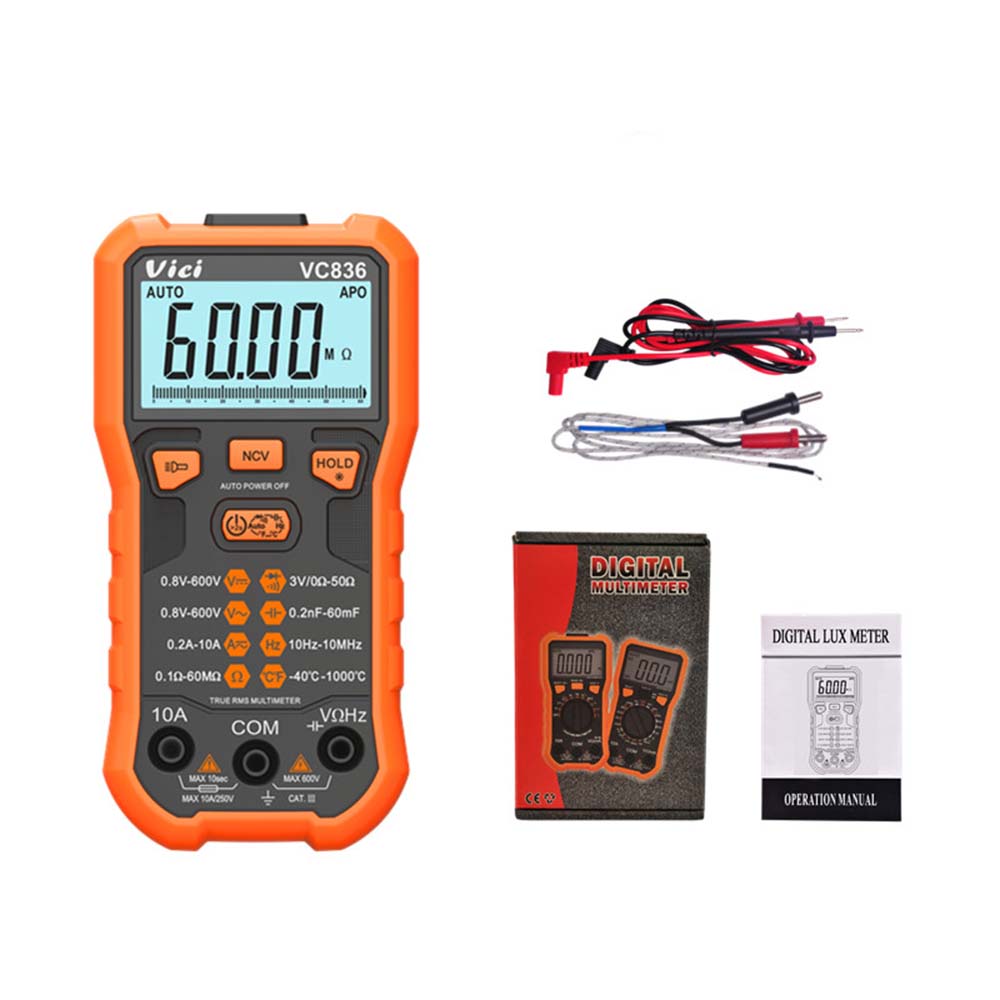

VICI VC836 Digital Multimeter DMM True RMS 6000 Resistance NCV Diode backlight
Features:
1. Lighting function, backlight display;
2. True RMS Non-contact voltage detect (NCV) and data hold fucntion;
3. Unit symbol display, easy to read;
4. Full function protection;
5. Auto power off when there is no measurement in 15 minutes;
6. Strong antimagnetic and anti-interferential performance;
7. Large LCD display makes reading clear;
8. New type holster, streamlined design, comfortable handle;
Specification:
| Basic Functions | Range | Accuracy |
|
| DCV | 6V/60V/600V | ±(0.5%+4) |
| ACV | 6V/60V/600V | ±(0.8%+6) |
| DCA | 10A | ±(2.0%+5) |
| ACA | 10A | ±(2.0%+10) |
| Resistance | 600Ω | ±(0.8%+5) |
| 6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+1) |
| Capacitance | 60nF | ±(2.5%+6) |
| 600nF/6μF/60μF/ 600μF/6mF/60mF | ±(2.5%+5) |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+4) |
| Temperature | -40℃∽1000℃ | ±(1.0%+5) |
| -40℉∽1832℉ | ±(1.0%+5) |
| | | |
| Special Functions | VC836 |
| Analog bar display | √ |
| True RMS | √ |
| NCV | √ |
| Backlight display/Torch function | √ |
| Diode test | √ |
| Continuity alarm | less than 50Ω |
| Low battery indication | approx. less than 2.4V |
| Data hold | √ |
| Auto power off | about 15 minutes |
| Protect/Shockproof function | √ |
| Input impedance | 10MΩ |
| Sampling rate | 3 times/second |
| AC frequency response | 40∽2kHz |
| Operation method | Auto or Manual range |
| Max. display | 6000 |
| LCD size | 61x28mm |
| Power supply | 3V(2*1.5V AAA) |
| Power consumption | Quiescent current 2mA |
| | | |
| Gernal Info | VC836 |
| Device Color | gray + orange |
| Device Weight | 290g (including battery) |
| Weight Size | 140×72×37mm |
| Standard Accessories | test leads, temperature probe, battery, manual |
| Standard Individual Packing | gift box |
Package:
1 x vc836 multimeter;
1 x pair test probe;
1 x temperature probe;
1 x manual;
(Kindly please be reminded: battery is not included because air post prohibition)
