![Laser Distance Sensor Time of Flight](https://www.wenglor.com/medias/B-PRO-P1KY102-01ws950Wx534H.webp?context=bWFzdGVyfGltYWdlc19Qcm9kdWt0YmlsZHwzODA4NHxpbWFnZS93ZWJwfGltYWdlc19Qcm9kdWt0YmlsZC9oZDkvaDU3LzkxMTYyODIwMjgwNjIud2VicHxiODc0YTYyNTA5MGM2OTdlMWFmZTBjMjRlNTgxZjI4MjliODA0YTRkZWQ0YjQzNDg1NjEyYmI2M2EyMzFkZjFi")
DESCRIPTION

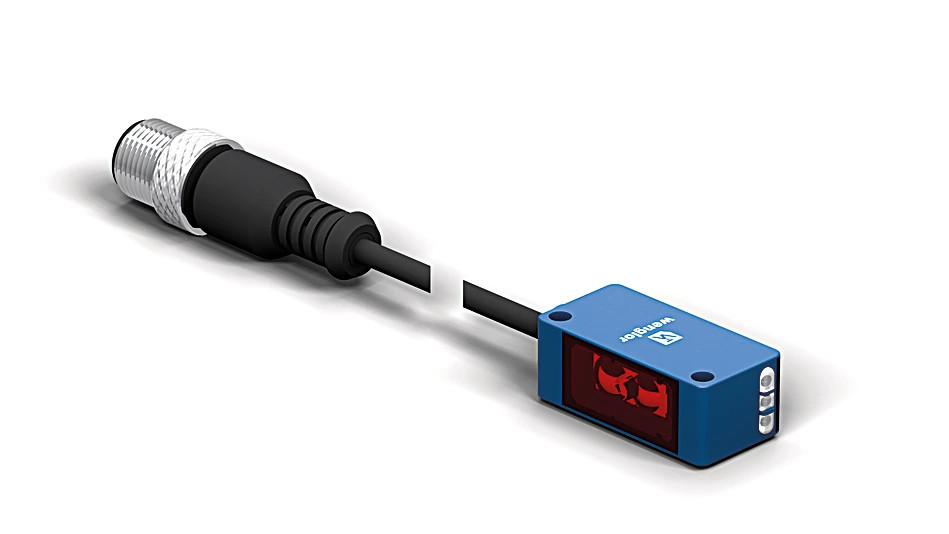

Laser Distance Sensor Time of Flight
Article:
P1KY106
DESCRIPTION
The high-performance distance sensor with compact format accurately determines distance between the sensor and the object on the basis of transit time measurement. Two mutually independent switching outputs and the intelligent IO-Link interface permit multifunctional use for precisely ascertaining distance to an object, or for detecting the object at any two switching points. A large working range of 0 to 1,500mm ensures top performance with a miniature format and flexibility where range is concerned. Thanks to laser class 1, the sensor’s laser beam is harmless for the human eye.
CHARACTERISTICS:
Features at a Glance
- Miniature design
- 2 mutually independent switching outputs
- IO-Link interface
- Large working range
CHARACTERISTICS:
| Working Range | 0...1,500mm |
| Setting Range | 50...1,500mm |
| Switching Hysteresis | <30mm |
| Light Source | Laser (infrared) |
| Wavelength | 940nm |
| Service Life(T = +25 °C) | 100,000h |
| Laser Class(EN 60825-1) | 1 |
| Max.Ambient Light | 10,000Lux |
| Light Spot Diameter | see Table1 |
| Reflectorrequired | no |
| Supply Voltage | 10...30V DC |
| Supply VoltagewithIO-Link | 18...30V DC |
| Current Consumption(Ub = 24 V) | <15mA |
| Switching Frequency | 10Hz |
| Response Time | <36ms |
| Temperature Drift | <2.5% |
| Temperature Range | -40...60°C |
| Number of Switching Outputs | 2 |
| Switching OutputVoltage Drop | <2.5V |
| Switching Output/Switching Current | 100mA |
| Residual CurrentSwitching Output | <50µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Lockable | yes |
| Interface | IO-Link V1.1 |
| Protection Class | III |
| Setting Method | Teach-In |
| Housing Material | Plastic, ABS/PCPlastic, PC |
| Cable Jacket Material | Plastic, PUR |
| Optic Cover | Plastic, PMMA |
| Degree of Protection | IP67/IP68 |
| Connection | M12 × 1; 4-pin |
| Cable Length | 200mm |
| Weight | 18g |
| MTTFd(EN ISO 13849-1) | 2,266.52a |
| PNP NC | yes |
| IO-Link | yes |
| Circuit | NCNO |
| Other parameters | Off-delayOn-delayHysteresisEmitted lightTeach modeSwitching point |
| Sr = Switching Distance | dSr = Switching Distance Change |
| black 6 % remission | grey 18 % remission |
