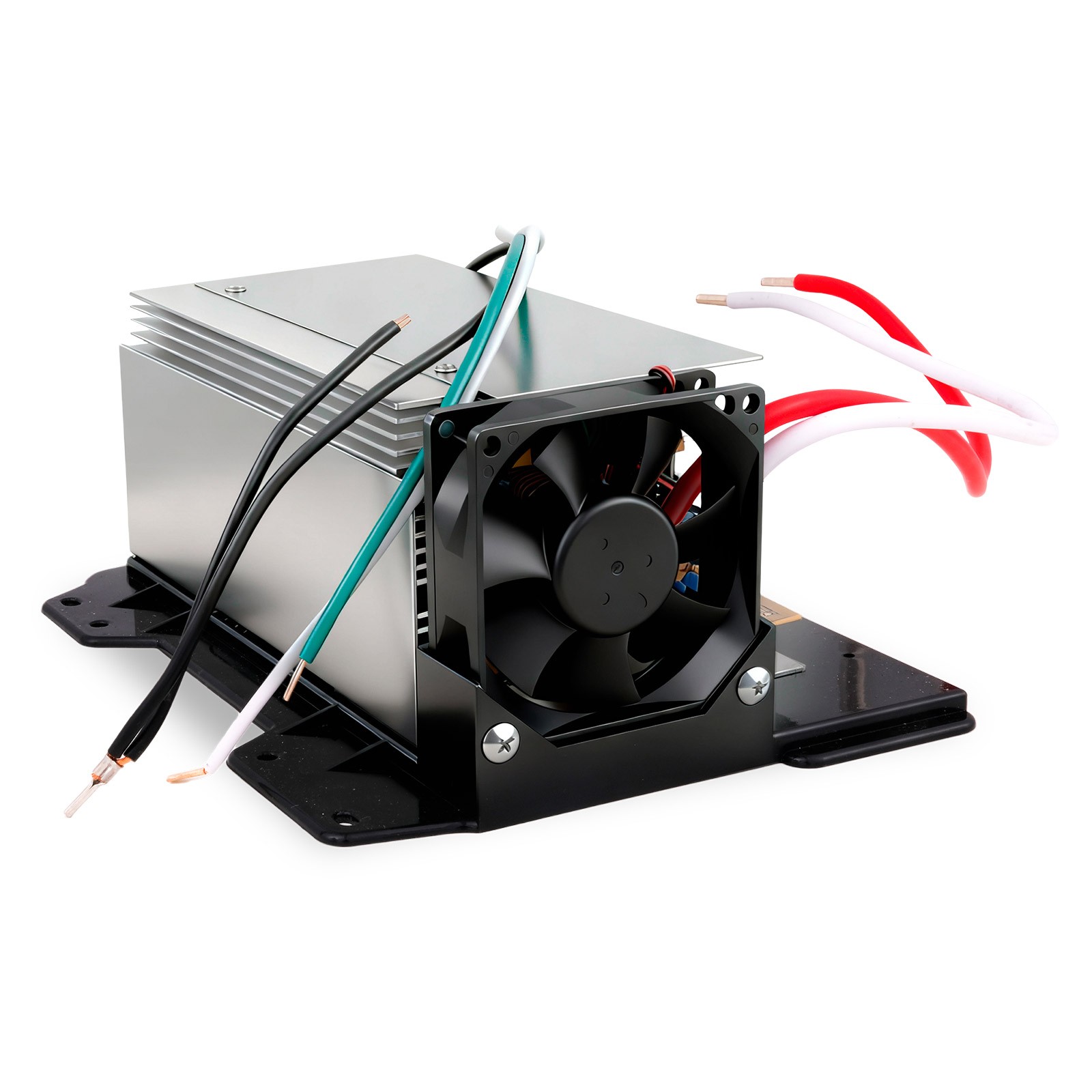

WF-8955-AD-MBA 55 Amp RV Power Center Main Board Assembly

55A STABLE POWER | 1-YEAR WARRANTY | PLUG-AND-PLAY

WFCO 8900 Series - Ideal for RVs, Travel Trailers & Mid-Size Battery Banks

Key Features

55A Continuous DC Output

Delivers 55 Amps stable DC power (780W) to run standard RV appliances, lighting and charge mid-size battery banks reliably.

4-Stage Smart Charging

Auto-detects LiFePO4, AGM, flooded & gel batteries, optimizing charging cycles to extend battery service life.

Certified Safety Protection

UL 458/RVIA compliant with overcurrent, reverse polarity, over-temperature and surge protection for safe operation.

High Energy Efficiency

≥85% power conversion efficiency reduces energy waste and heat, suitable for on-grid and occasional off-grid use.

Drop-In Installation

Direct replacement for WF-8955 power centers, 15-minute install with no wiring modifications required.

Universal AC Input

90-130V AC (50/60Hz) input compatible with global power sources, perfect for international RV travel.

Technical Specifications

Parameter	Specification
Output Current	55 Amps continuous (12V DC)
Input Voltage/Frequency	90-130V AC, 50/60Hz (universal input)
Output Power	780 Watts continuous \| 1000 Watts peak
Output Voltage Range	Lithium:14.2-14.6V DC \| Lead-Acid:13.6-14.4V DC (adjustable)
Power Conversion Efficiency	≥85%
Dimensions (W×H×D)	7.25" × 4.125" × 2.5"
Net Weight	5.6 lbs (2.54 kg)
Reverse Protection Fuse	35/35 Adc
Converter Type	4-stage smart charger (bulk/absorption/float/maintenance)
Warranty	1 Years Limited Manufacturer's Warranty

Compatibility & Replacement

Direct replacement for WF-8955 RV power center main boards
Full compatibility with all WFCO 8900 series power centers
Backward compatible with WF-8945/8935 power centers (power upgrade)
Replaces Parallax 7155/7145 main boards (adapter included)
Cross-compatible with WFCO 9800 series low-power models

Important: Ensure RV DC wiring is minimum 4 AWG to support 55A continuous current and prevent overheating or performance degradation.

Warranty Information

1-Year Limited Warranty

Important Installation Notes

Disconnect AC power and battery terminals before installation to prevent electrical shocks or short circuits.
Recommended for lithium battery banks 150Ah+ or RVs with standard-wattage appliances (refrigerator, lighting, small pumps).
Use only 4 AWG or larger DC wiring for 55A continuous operation to ensure stable performance and avoid overheating.
Do not modify the board's circuitry; unauthorized modifications will void the 3-year limited warranty.
Store the board in a dry, cool environment before installation to avoid moisture damage to internal components.
