Waterproof Fingerprint Access Sensor IC 13.56MHz Reader Door Lock Control Keypad
US
$196
DESCRIPTION
Descriptions
DIY Access Control System with Electric Rim Lock
Waterproof Fingerprint IC Access Controller + Power Supply Module + Electric Rim Lock + 5 IC cards + 5 IC Keyfobs + 2 Remote Controls + Exit Button+Wired Doorbell
This access control system is built for both indoor and outdoor use, protecting the doors and gateways at your business, private properties, or any other area that you wish to guard against intruders. Without the hassle of additional software or central monitoring systems, it is simple to use and easy to install, ideal for residential and commercial access applications.
Waterproof Design This IP67 fully-potted waterproof access control unit is an ideal choice for indoor and outdoor security. | WG26 Output With WG26 output, it can work with a card reader. | |
 |  |
5 Ways to Unlock the Door
In addition to 3 modes of access (Card, PIN, Fingerprint), the door can also be unlocked via the exit button, remote control, IC cards, and keyfobs.
Backlit Keypad The keypad has backlight but you can always know where to unlock your gate in the night. | Management Cards You can set up management cards (delete card and added card) for easy operation. | |
 |  |
500 Card User & 500 Fingerprint User It supports 500 Card User & 500 Fingerprint User for storing and reading. | Unlock Duration Adjustment The door open time can be set within 0-99s (The default unlock duration is 3 seconds.). | |
 |  |
This touch keypad waterproof access control unit is made of Organic Glass Panel, with backlight and unlock delay functions. Delete and Added cards can be set for easy operation.
Exit Button This elegant exit button is widely used for door access control systems. Just press it for the exit. | Remote Controller With the receiver connected to the power supply controller, the door can be remotely controlled. The distance can reach up to about 30 meters. | |
 |  |
Electric Rim Lock
This is 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. When bolt extends out, the door can be locked normally.
Wiring for Installation
You need 2 core cables for complete wiring, please check the wiring diagram before the installation.
Specifications
| Waterproof Fingerprint Access Control Unit | ||
| Color | Black |  |
| Construction | Organic Glass Panel | |
| Working Voltage | DC 12V | |
| Static Current | 50mA | |
| IP Level | IP67 fully-potted | |
| Card User Capacity | 500 | |
| Card Type | 13.56MHz RFID IC Card | |
| Reading Distance | 3-7cm | |
| Fingerprint Capacity | 500 | |
| Identification Time | ≤ 0.1s | |
| Door Open Time | 0-99s (adjustable) | |
| Entry Access Mode | Card, PIN, Fingerprint | |
| Interface | Wiegand 26 output | |
| Backlight | Yes | |
| Working Temperature | -20°C~+70°C | |
| Working Humidity | 0-95% rh | |
| Net Weight | 150g | |
| Exit Button | ||
| Power Supply | DC12V |  |
| Mode | NC Mode | |
| Performance Testing | 1,000,000 times aging test | |
| Material | Metal Stainless Steel | |

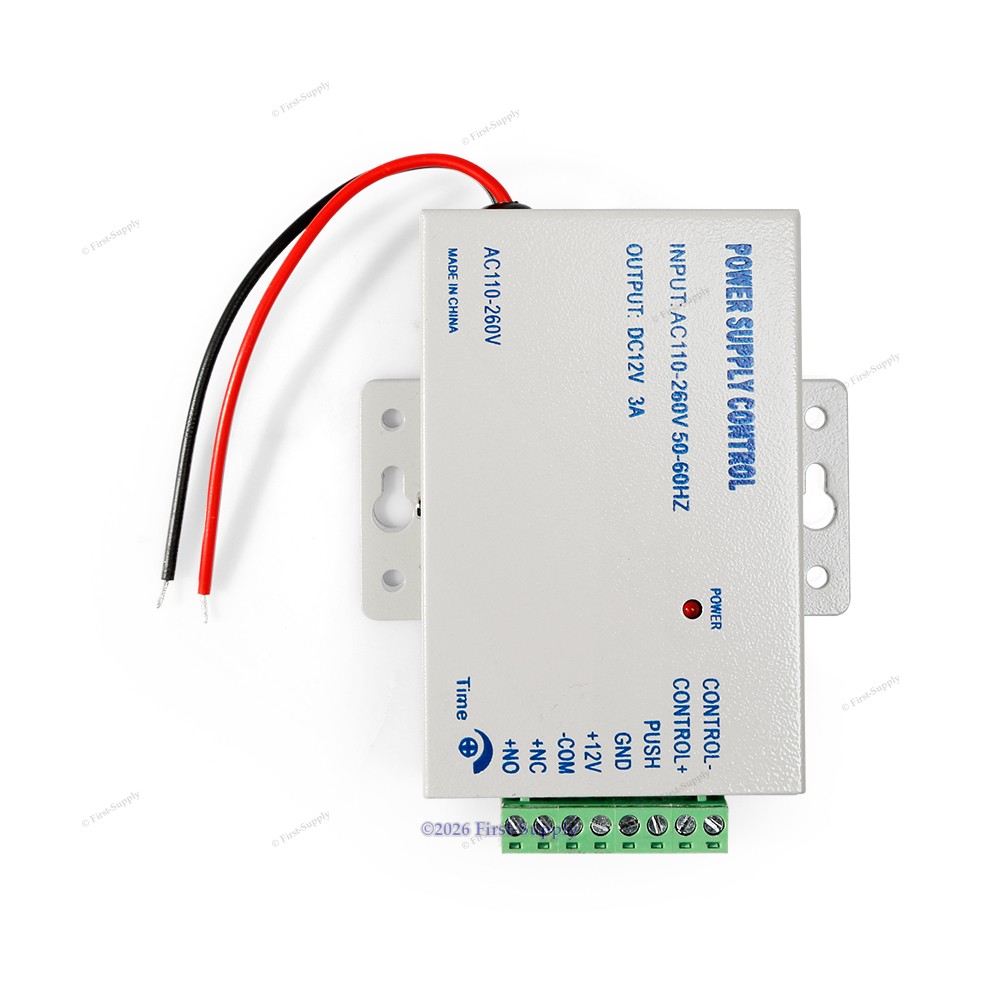

| Power Supply Module | ||
| AC Input | AC110-240V 50-60HZ |  |
| DC Output | DC 12V 3A | |
| Net Weight | 350g | |
| Unlocking Delay | 0-15s (adjustable) | |
| Compatibility | NC&NO locks, Exit Button, Remote Controller | |
| Remote Controller | ||
| Remote Control | Within 200pcs |  |
| Contact Output | NO\NC\COM | |
| Power Supply | DC12V/A27 battery | |
| Wireless Frequency | 315MHz | |
| Working Distance | About 30 meters | |
| Net Weight | 80g | |
| Electric Rim Lock | ||
| Lock Mode | Fail Secure (By collision) |  |
| Voltage | DC 12V | |
| Current | 1.5A | |
| Suitable for | Doors with Thickness 35mm (1.49inch) to 50mm (2inch) | |
| Surface Temperature | Within +20°C | |
| Suitable Temperature | -10~+55°C (14~131°F) | |
| Operating Humidity | 0-90% (non-condensing) | |
| Structure | Stainless Steel | |
| Weight | 1400g | |
