Servo Driver Module For Raspberry Pi Pico, 16-Channel Outputs, 16-Bit Resolution
Servo Driver Module For Pico
Ideal For Controlling Robotic Arm Or Hexapod Walker
Features At A Glance
· Standard Raspberry Pi Pico Header, Supports Raspberry Pi Pico Series Boards
· Up To 16-Channel Servo/PWM Outputs, 16-Bit Resolution For Each Channel
· Integrates 5V Regulator, Up To 3A Output Current, Allows Battery Power Supply From The VIN Terminal
· Standard Servo Interface, Supports Common Used Servo Such As SG90, MG90S, MG996R, Etc.
· Exposes Unused Pins Of Pico, Easy Expansion
· Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGE | 5V (Pico) or 6~12V (VIN terminal) | SERVO VOLTAGE LEVEL | 5V |
LOGIC LEVEL | 3.3V | CONTROL INTERFACE | GPIO |

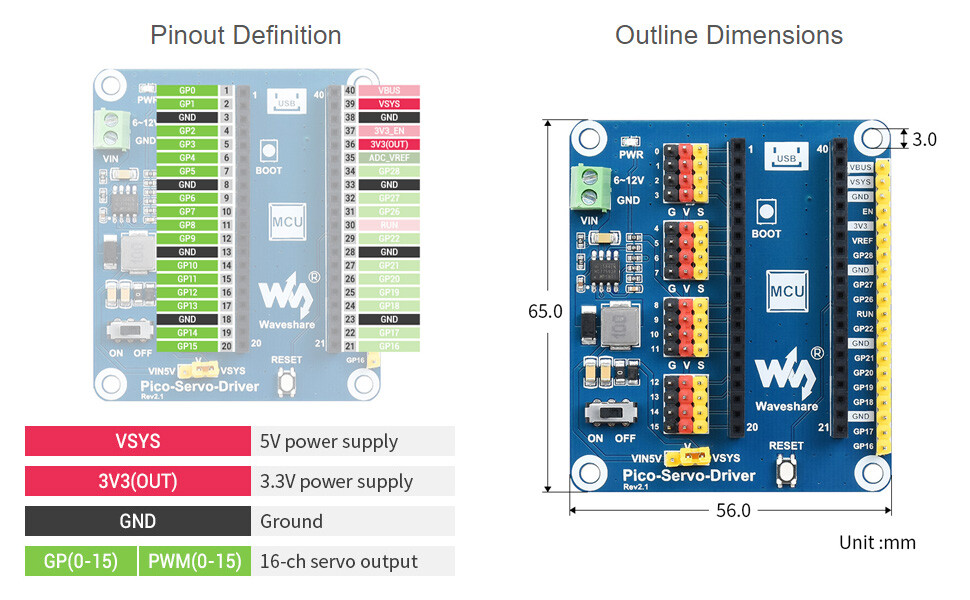

MOUNTING HOLE SIZE | 3.0mm | DIMENSIONS | 65 × 56mm |
Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

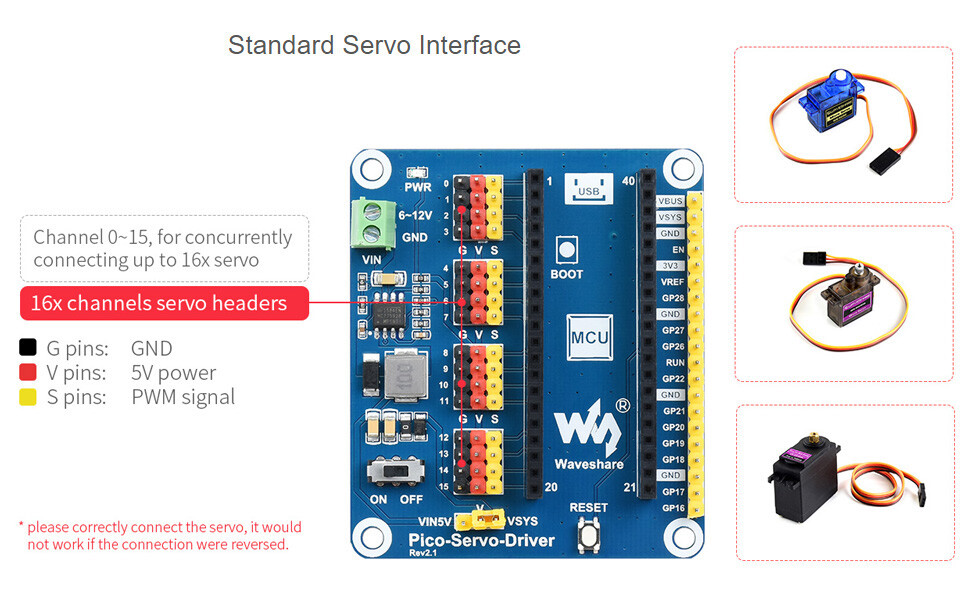

Standard Servo Interface
Supports Common Used Servo

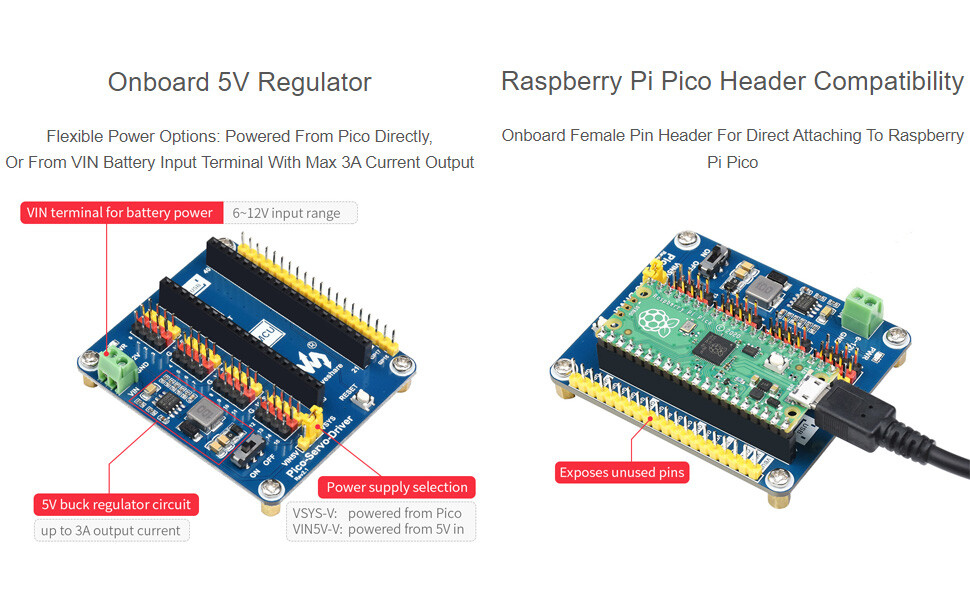

Onboard 5V Regulator
Flexible Power Options: Powered From Pico Directly,
Or From VIN Battery Input Terminal With Max 3A Current Output
PACKAGE CONTENT
Weight: 0.028 kg
Pico-Servo-Driver x1
