![Reflex Sensor with Background Suppression](https://www.wenglor.com/medias/B-PRO-P2KH004-018-01ws950Wx534H.webp?context=bWFzdGVyfGltYWdlc19Qcm9kdWt0YmlsZHwzMTYzMnxpbWFnZS93ZWJwfGltYWdlc19Qcm9kdWt0YmlsZC9oZjEvaDQ0LzkxMTcwNTUwMjUxODIud2VicHxmMjQwNjFlYzkxYzE3MjM0NTMzOGNlYjkwZDAzNGNmZGQ4MDIzYWJmM2I0Yzg5MDA4YmM5N2U2ZWVmYzRmODZl")
DESCRIPTION

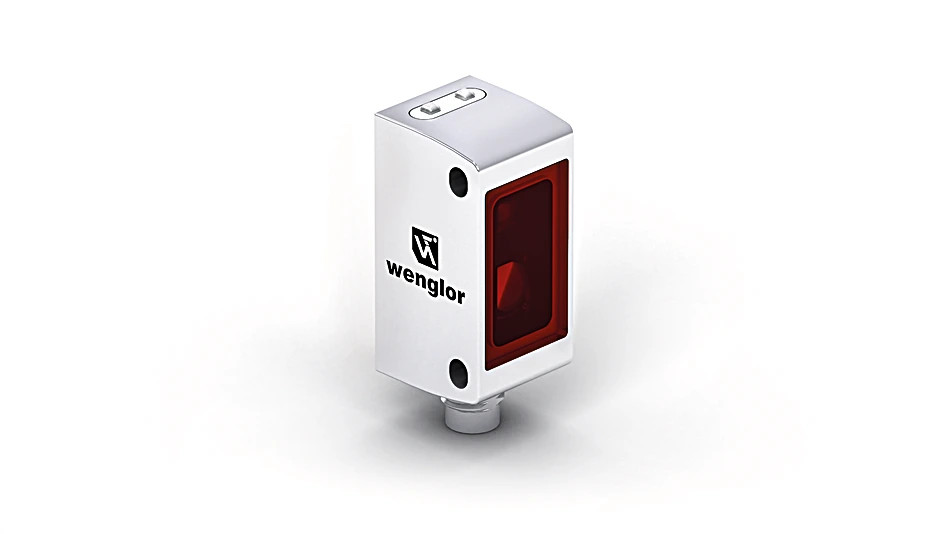

Reflex Sensor with Background Suppression
Article:
P2KH004
DESCRIPTION
The reflex sensor with background suppression works with red light according to the angle measurement principle and is suitable for the detection of objects against any background. The sensor always has the same switching distance, regardless of the color, shape and surface of the objects. Minimal height differences can be detected with the sensors and, for example, various parts can be reliably differentiated from each other. The IO-Link interface can be used to configure the reflex sensors (PNP/NPN, NC/NO, switching distance), as well as to output switching statuses and distance values. The robust V4A (1.4404/316L) stainless steel housing is resistant to oils and coolants, as well as cleaning agent.
TECHNICAL SPECIFICATIONS
Range: 1,500 mm
Reference Reflector/ReflectorFoil: RQ100BA
Clear Glass Recognition: yes
Smallest Recognizable Part: see Table 2
Switching Hysteresis: < 5 %
Light Source: Red Light
Polarization Filter: yes
Service Life(T = +25 °C): 100,000 h
Max.Ambient Light: 10,000 Lux
Light Spot Diameter: see Table 1
Single-Lens Optic: yes
Supply Voltage: 10 ... 30 V DC
Supply VoltagewithIO-Link: 18 ... 30 V DC
Current Consumption(Ub = 24 V): < 20 mA
Switching Frequency: 2,000 Hz
Switching frequency(speed mode): 3,500 Hz
Response Time: 0.25 ms
Response time(speed mode): 0.14 ms
Temperature Drift: < 5 %
Temperature Range: -40 ... 60 °C
Switching OutputVoltage Drop: < 2 V
Switching Output/Switching Current: 100 mA
Residual CurrentSwitching Output: < 50 µA
Short Circuit Protection: yes
Reverse Polarity Protection: yes
Overload Protection: yes
Lockable: yes
Interface: IO-Link V1.1
Protection Class: III
Setting Method: Potentiometer
Housing Material: Stainless steel, V4A (1.4404 / 316L)
Degree of Protection: IP68/IP69K
Connection: M8 × 1; 4-pin
Optic Cover: Plastic, PMMA
Ecolab: yes
Weight: 42 g
MTTFd(EN ISO 13849-1): 2,375.05 a
IO-Link: yes
PNP NC,PNP NO: yes
Output: Push-pullNPNPNP
Circuit: inactiveError outputNCNC+NONO
Other parameters: Off-delayOn-delayMode of operationHysteresisSwitching point
