Wire Terminal Tensile Tester Electrical Wire Harness Testing Machine 110V 490N

v-vbusiness44

$865

CONTACT SELLER SEE ON EBAY

Wire Terminal Tensile Tester Electrical Wire Harness Testing Machine 110V 490N

v-vbusiness44

$865

DESCRIPTION

110V Automatic Wire Crimp Terminal Pull Tester Machine Tensile Testing Machine 490N

TECHTONGDA^®

	ITEM DESCRIPTION
	Tensile testing machine is a device for testing the pull-off force of wire harness terminals, designed to ensure the quality and reliability of wire harnesses and electronic products.
	This test instrument is mainly used to detect the pull-off force between wire harness terminals to ensure the reliability of the product in various usage environments.

ITEM PARAMETERS

Voltage:	110V
Power:	0.1kW
Unit of measurement:	kg.f / N / LB
Maximum speed:	600mm/min(real measured data)
Testing range:	≤490N(50kgf)
Testing accuracy:	± 0.09lbs(0.04kg)

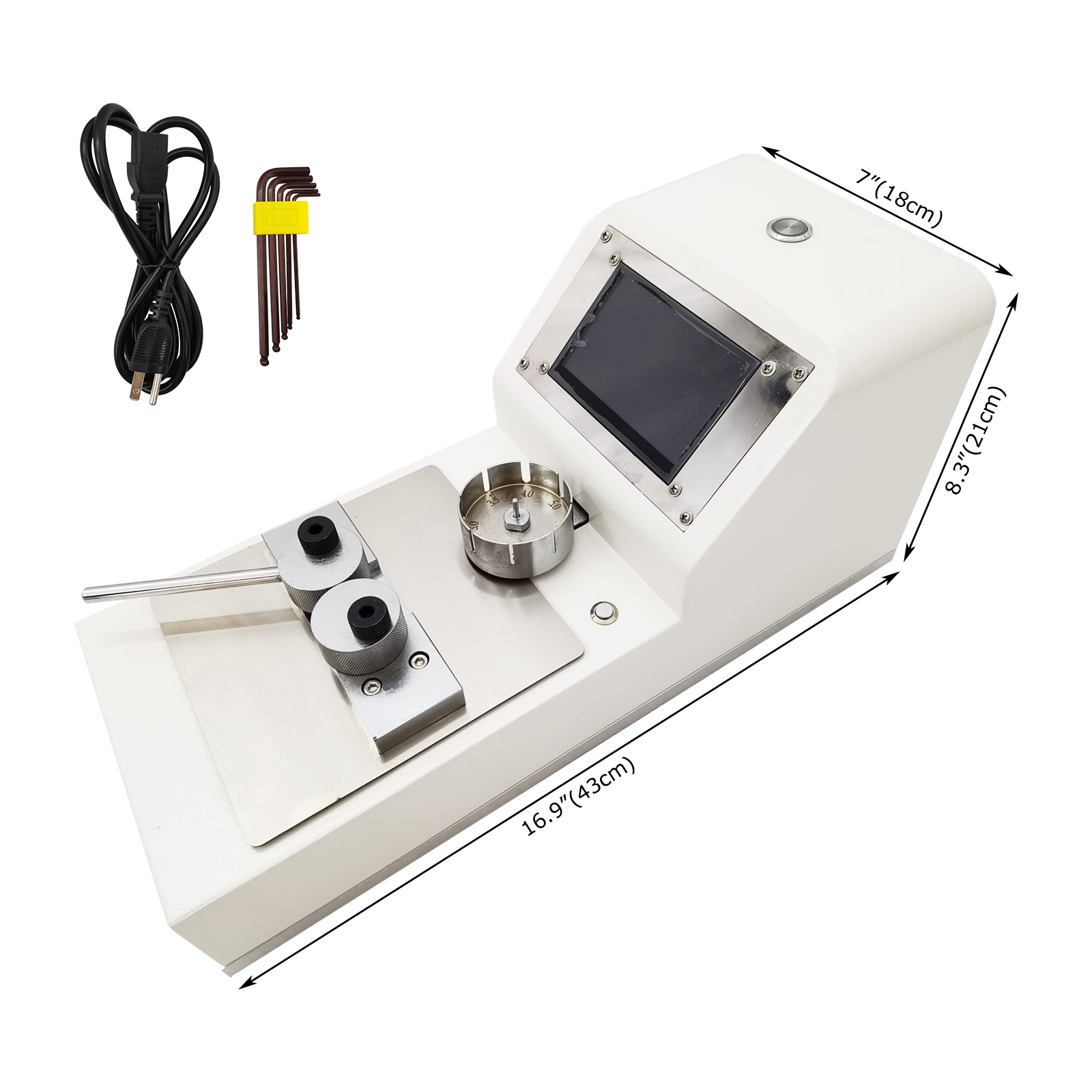

Package size:	20"10.2"11" (51cm26cm28cm)
Net weight/Gross weight:	24.9lbs(11.3kg)/27.1lbs(12.3kg)

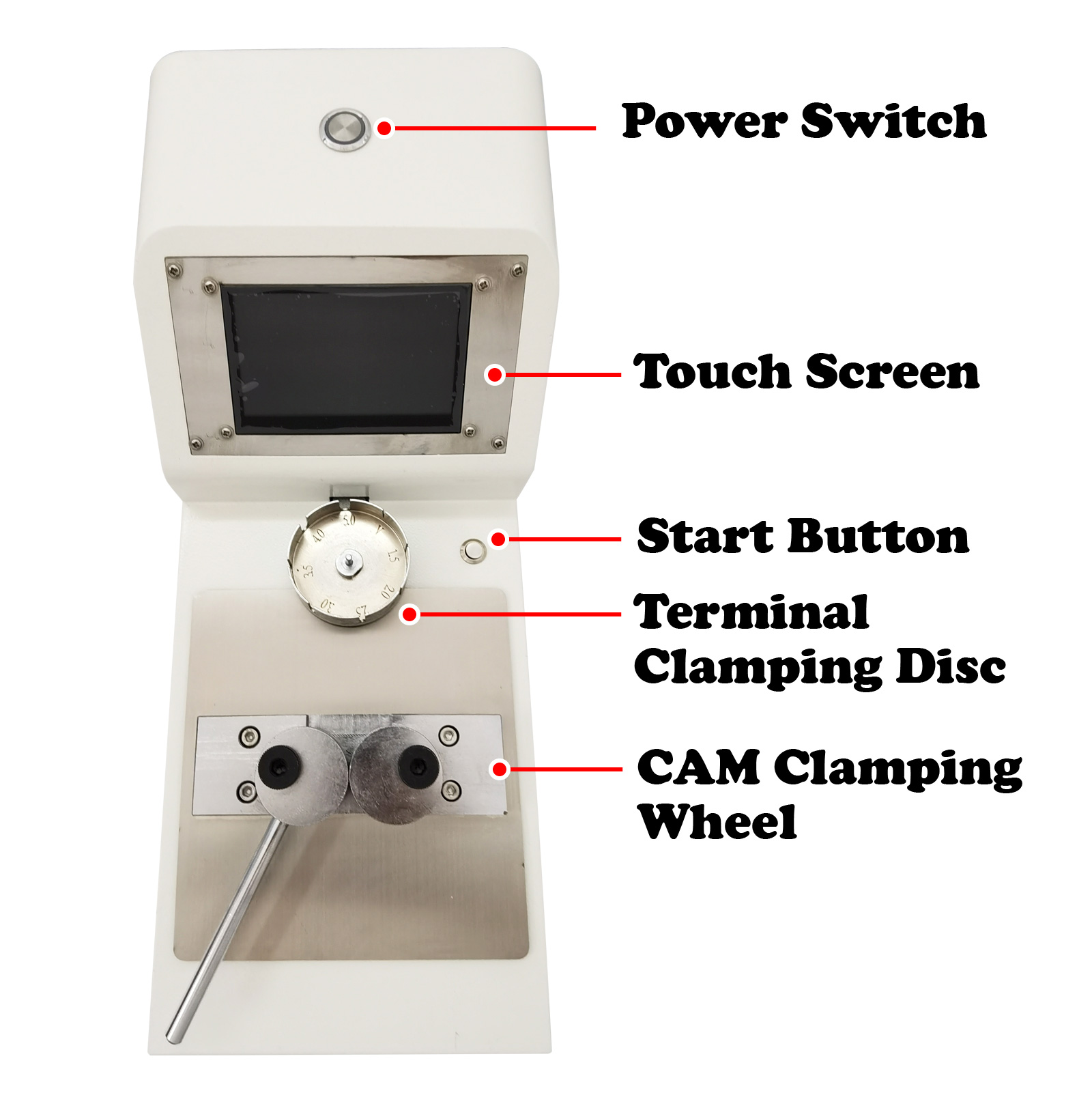

ITEM DETAILS

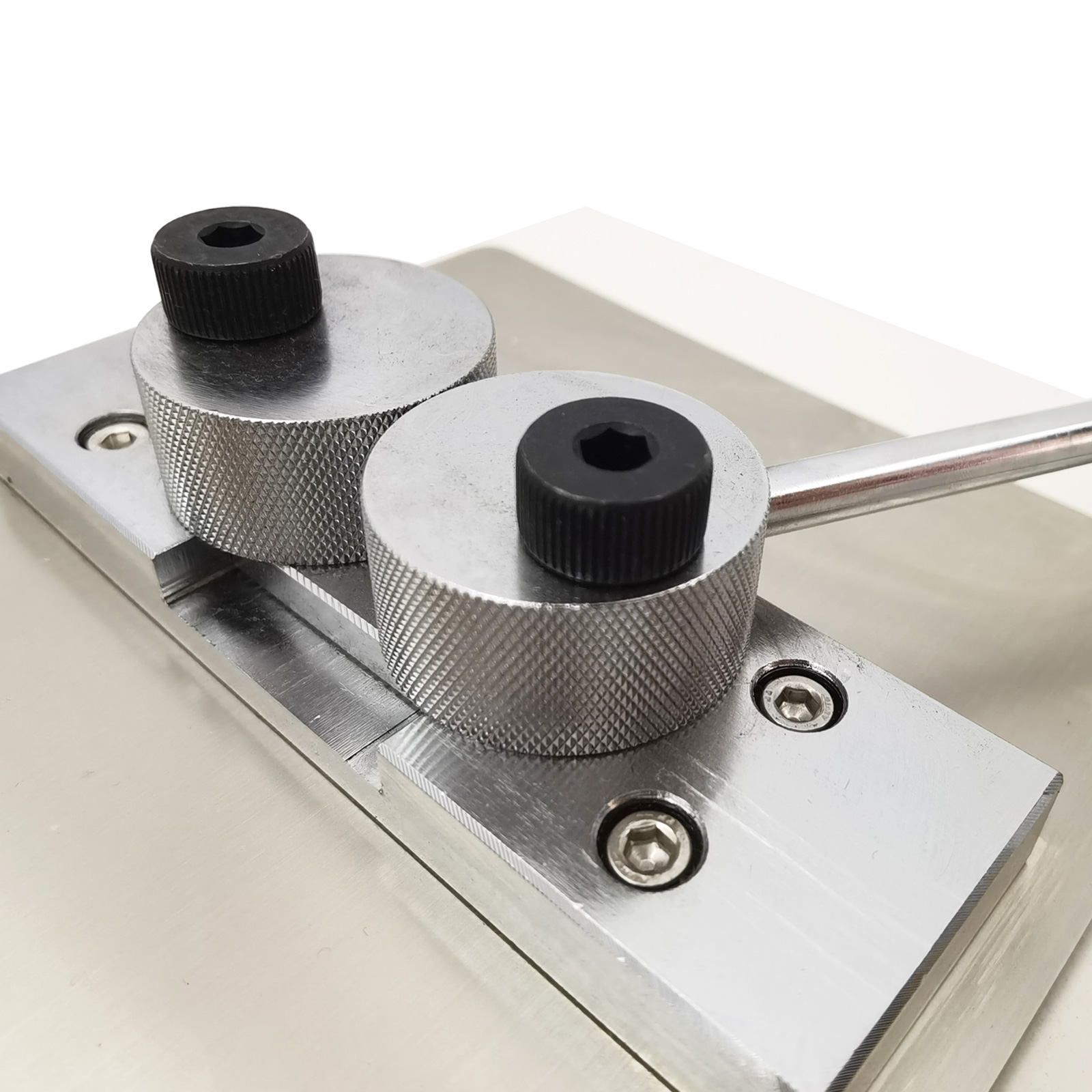

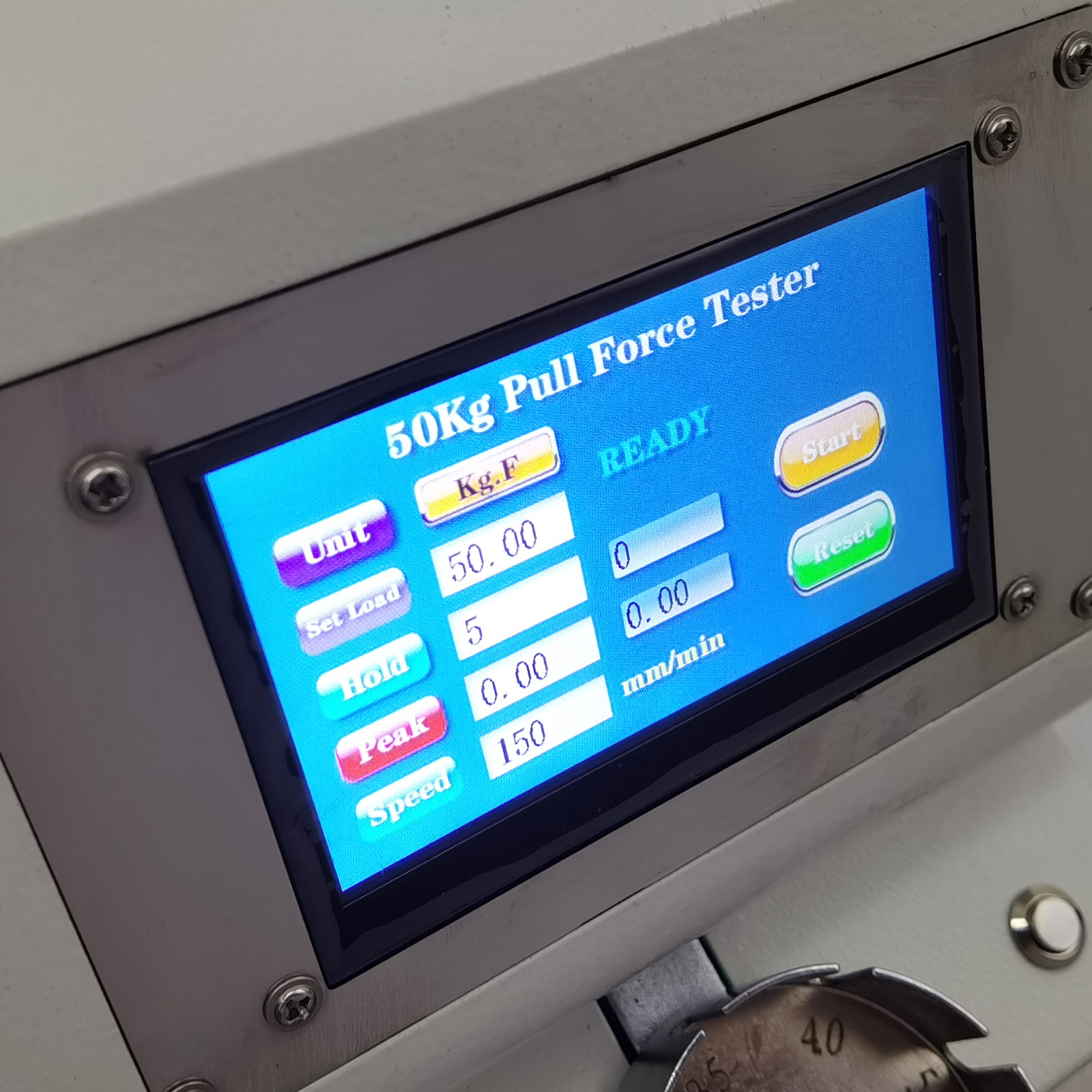

Touch Screen	CAM Clamping Wheel
Can switch between Chinese and English, the machine adopts touch screen control, debugging operation through touch screen input, accurate and convenient. After the test is completed, it will automatically return to zero and return to position automatically.	Newly upgraded wire clamping wheel, automatic clamping, no need to manually fix the wire, save worry and effort.

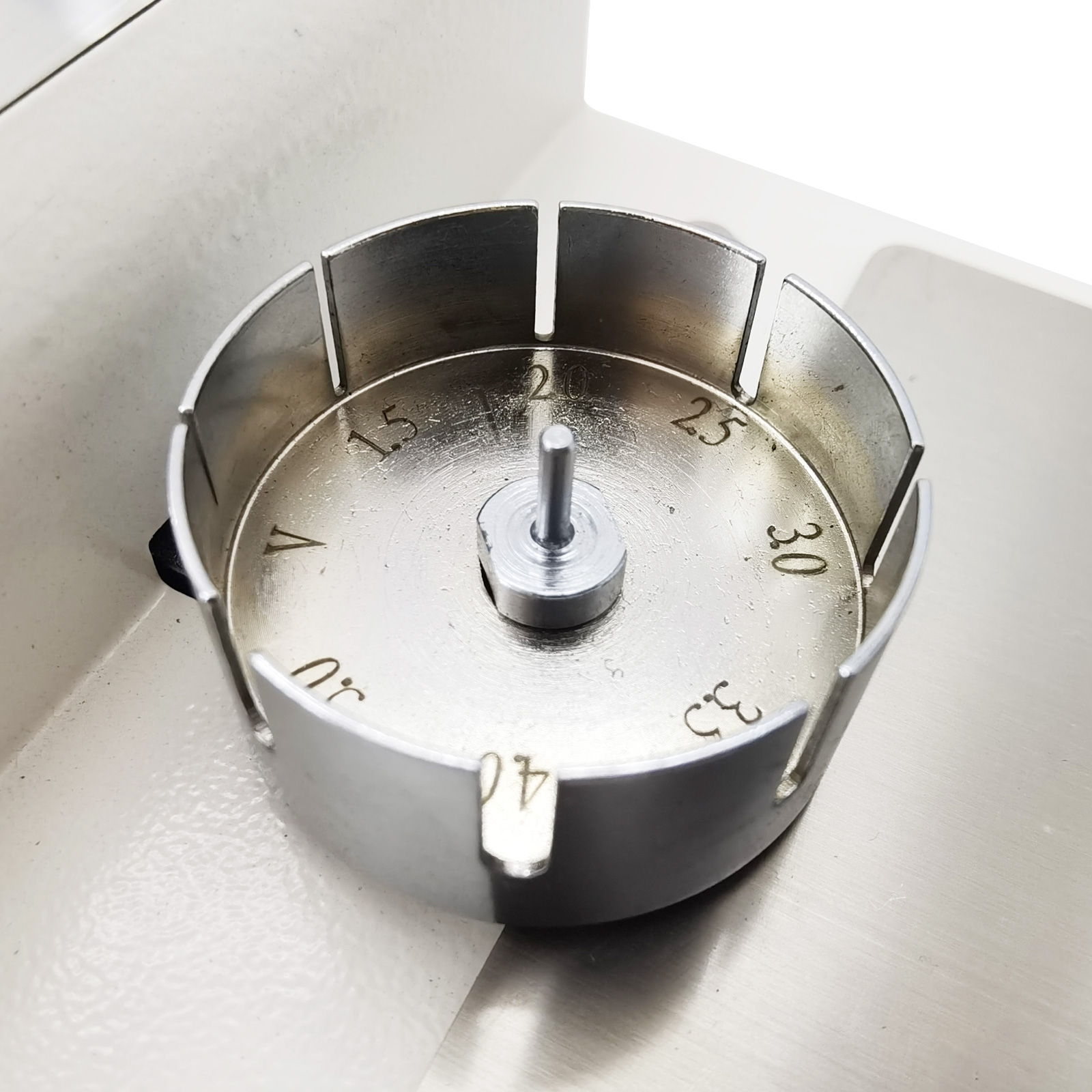

Terminal Clamping Disc	Supporting Leg

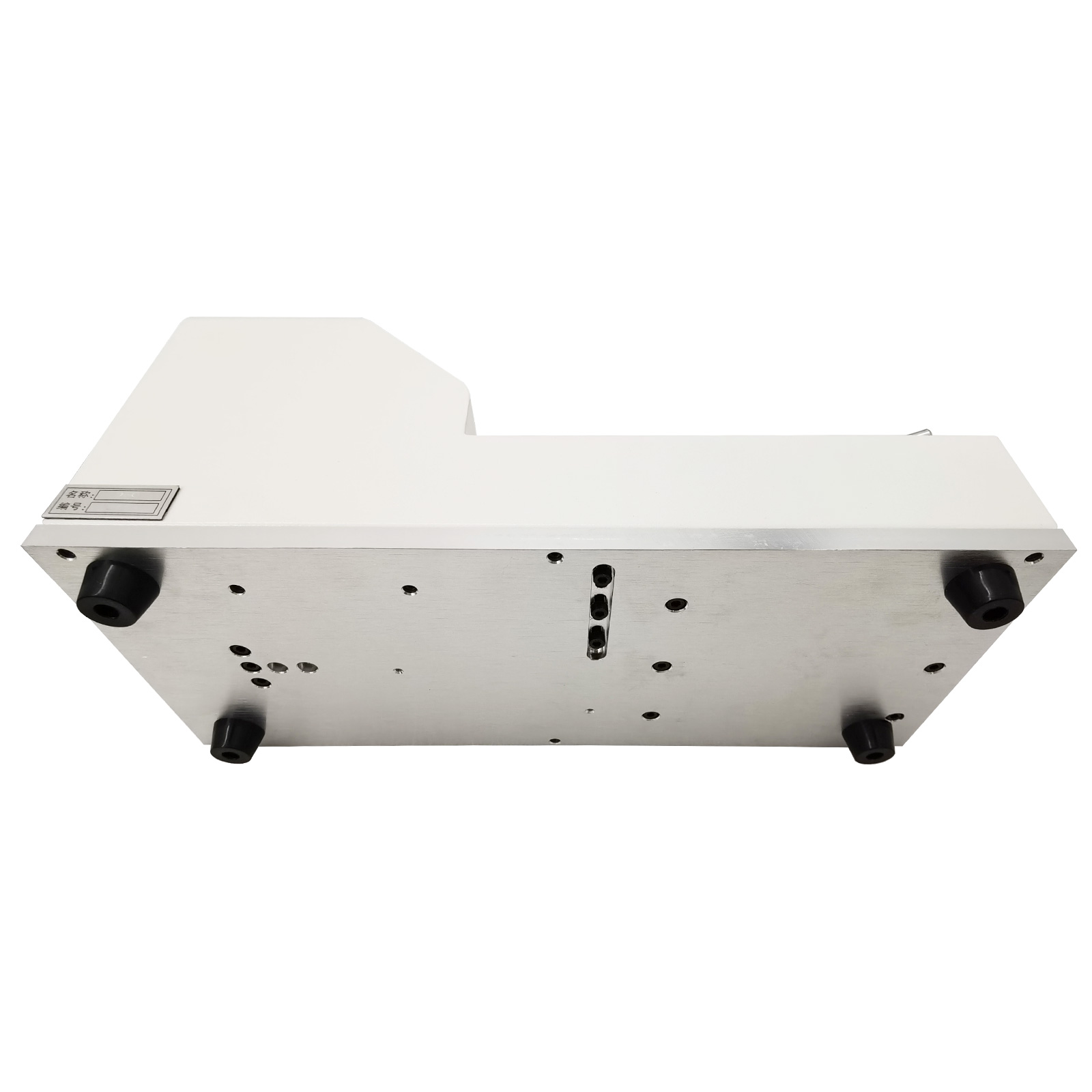

This clamping disc can hold wires of different diameters, and can be fixed at different clamping outlets according to the size of the wires.	The four rubber support legs at the bottom are non-slip, wear-resistant and mute, which can ensure the stability of the machine to achieve the accuracy of the measurement results, and prevent water from entering the machine from the bottom.
ITEM USING INSTRUCTIONS
a) Power on the device. b) Reset the device while ensuring that the measuring head is not under test. c) Set the upper limit of pulling force (two methods) 1) Method 1: You can directly click the input box, enter the upper limit of tension. 2) Method 2: you can directly click on the “Set Load”, enter the selection interface to select the corresponding parameters, such as the table does not correspond to the parameters, you can customize the parameters in the selection interface in the third page and the fourth page for the next time to use. d) Set the hold time. e) Press the start button to measure. f) When the measurement is finished, the measurement result (PASS or NG) will be shown on the touch screen.

ITEM INCLUDED(056334)

Tensile Testing Machine *1

Power Cord *1

Wrench *5
