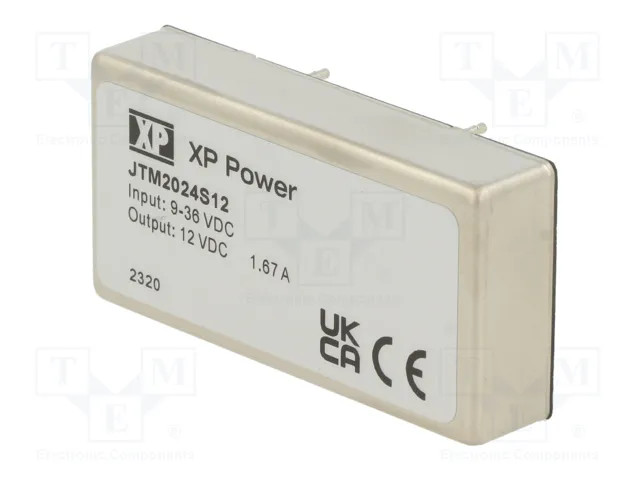

Converter: DC/DC; 20W; Uin: 9÷36VDC; Uout: 12VDC; Iout: 1.67A; THT
XP POWER
MPN: JTM2024S12
Body dimensions: 50.8x25.4x10.1mm
Output current: 1.67A
Input voltage: 9...36V DC
Price per 1 pc
Technical parameters
| Parameter | Value |
|---|
| Operating temperature | -40...105°C |
| Mounting | THT |
| Protection | short circuit protection SCP |
| Body dimensions | 50.8x25.4x10.1mm |
| Output current | 1.67A |
| Input voltage | 9...36V DC |
| Efficiency | 89% |
| Insulation voltage | 1.6kV DC |
| Switching frequency | 330kHz |
| Type of converter | DC/DC |
| Manufacturer series | JTM |
| Power | 20W |
| Number of outputs | 1 |
| Output voltage | 12V DC |
Weight: 31 g
