Features:
1. Versatile: Our crossover is versatile and fully adjustable, easy to use, and requires no soldering. It can be used with two-way tweeters and woofers, 2.1-channel high-frequency for satellite speakers, and full-range car speakers, or even with a single tweeter or woofer. It accepts speakers with 4-16 ohm impedance and supports up to 400W of power.

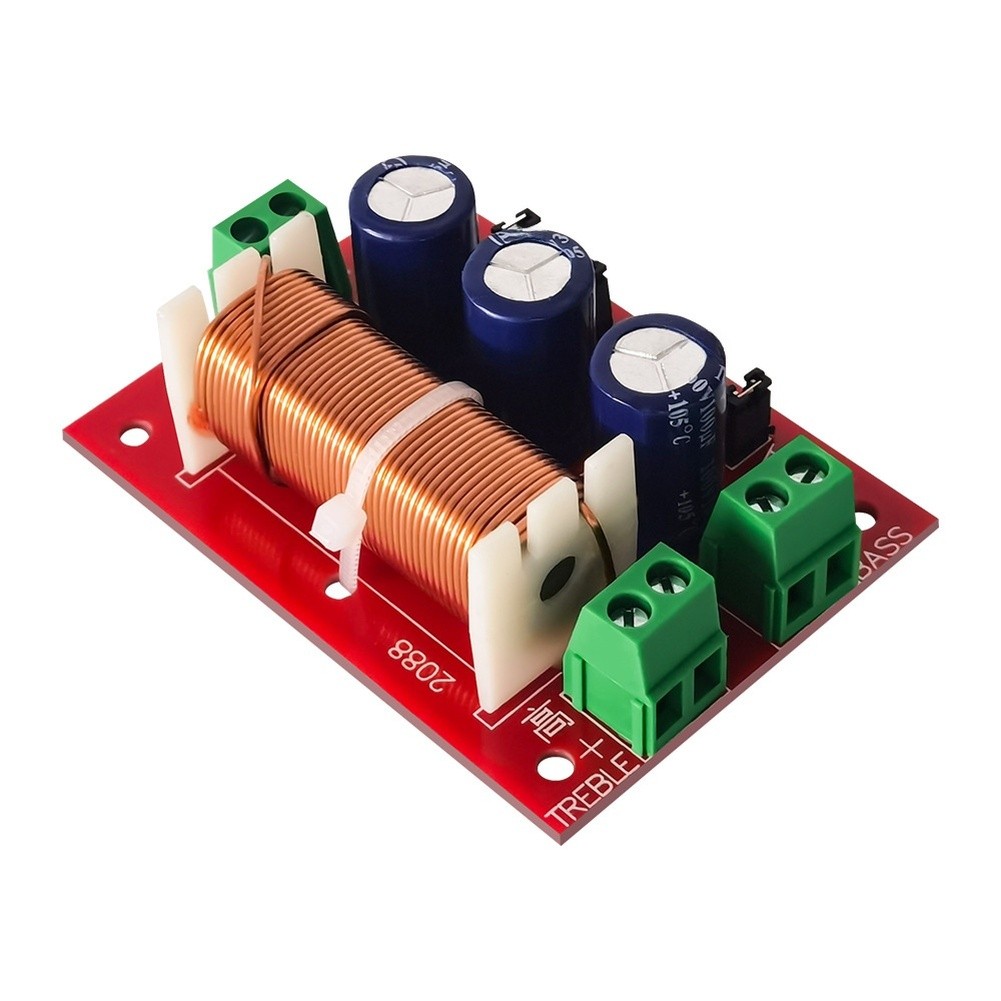

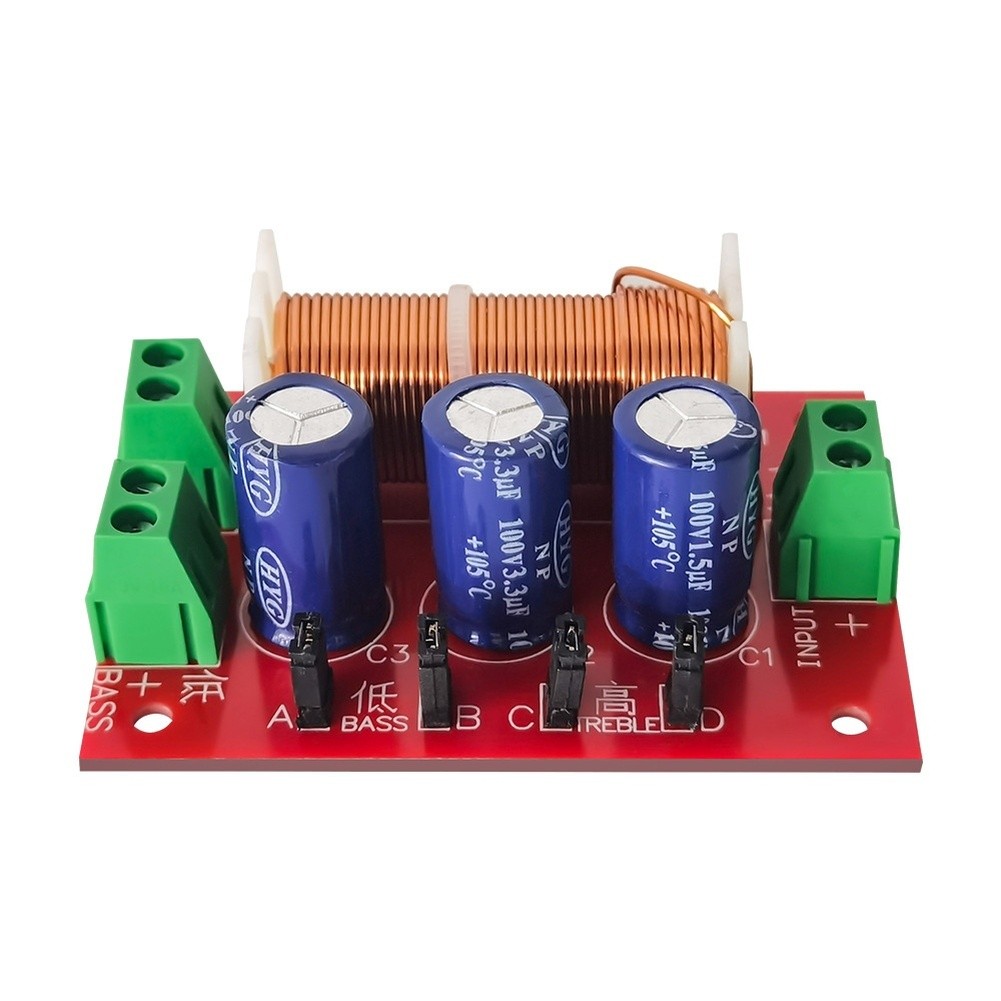

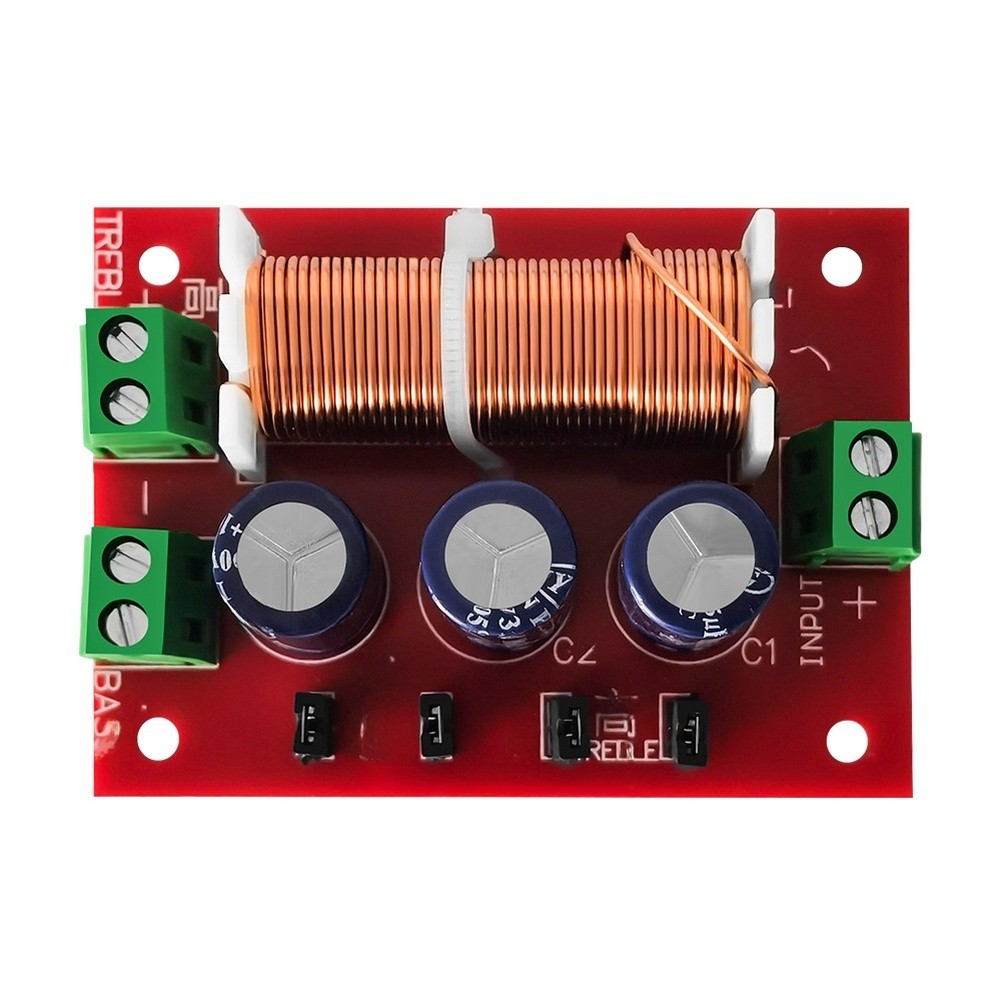

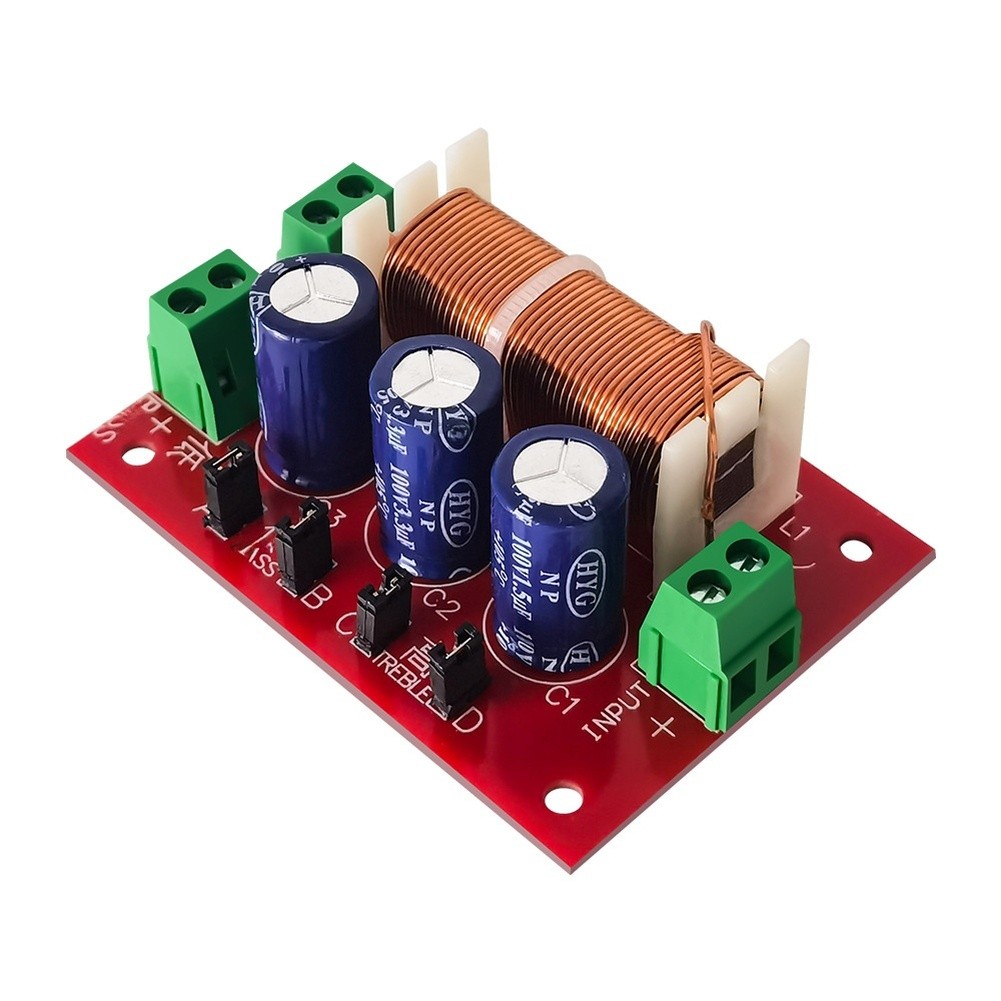

2. High-Quality Components: The crossover features pure copper jumpers, four A, B, C, D positions, and comes with four socket covers. It uses high-quality copper wire inductors, capacitors, and sockets, along with a fiberglass circuit board. High-frequency settings include soft/mid/loud, while low-frequency settings include full/bass/heavy/mid.

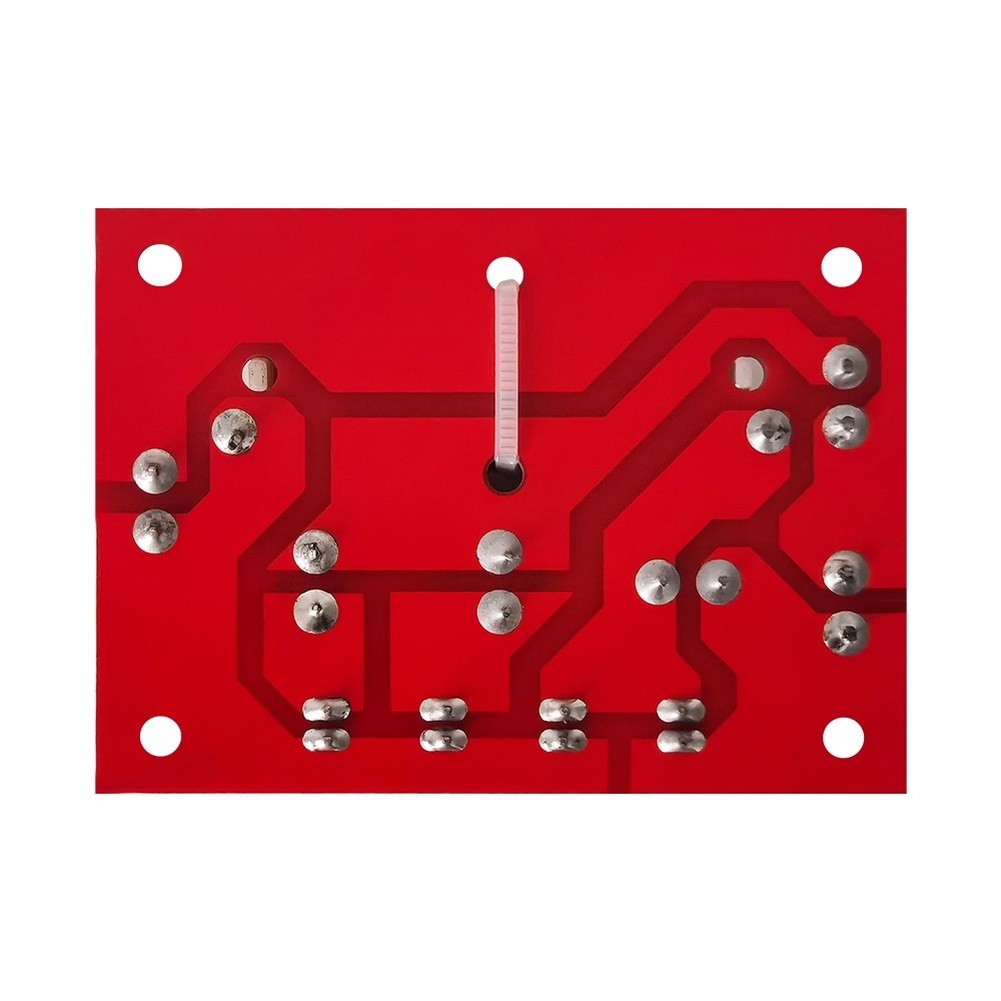

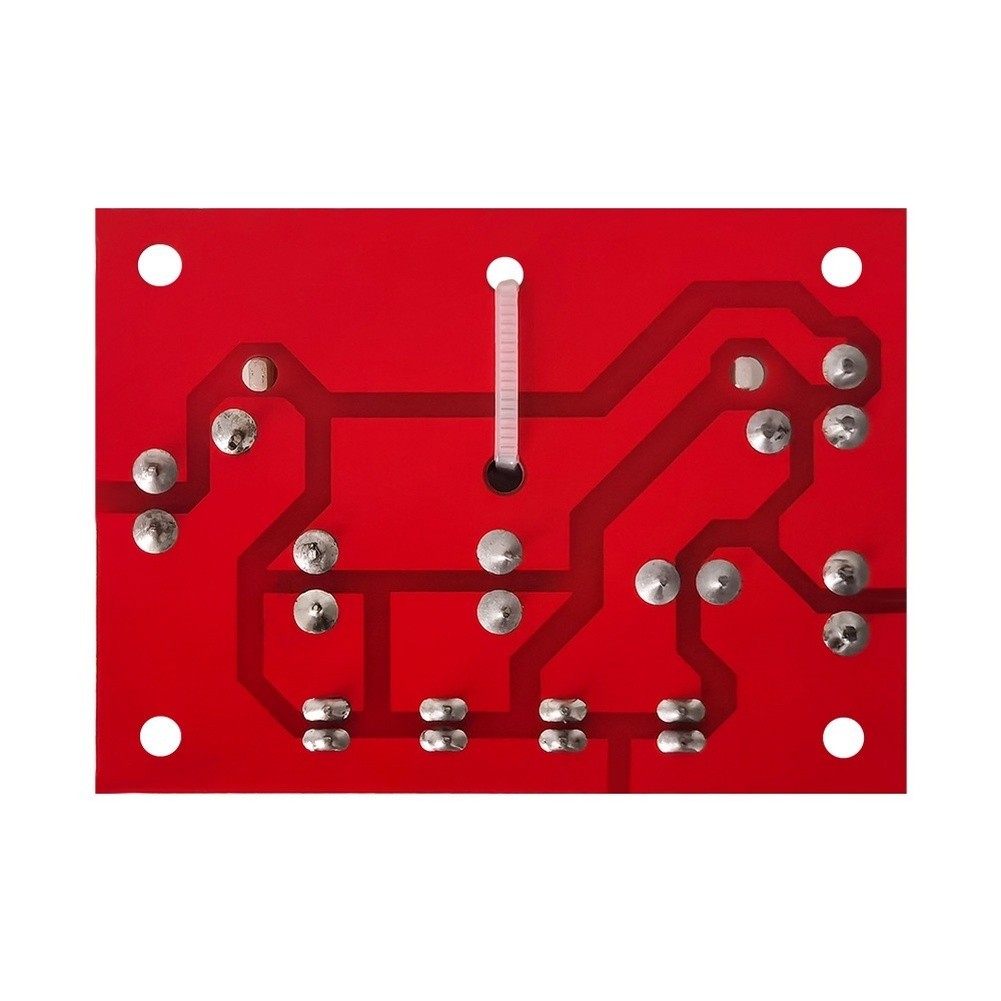

3. Professional Welding Technology: The crossover is crafted using professional spot welding technology, resulting in uniform, full, and shiny solder joints. 4. High-Quality Copper Inductor: The crossover utilizes pure copper wire wound with 0.8mm oxygen-free copper wire, and includes a 100uF high-capacity capacitor. It features a socket for easy connection using a small screwdriver, and offers a variety of 6dB circuit combinations, enabling a variety of crossover frequencies.
5. Reasonable Design: The crossover features a well-designed design, an attractive appearance, and outstanding sound quality, allowing users to easily adjust the sound to their preferences.
Specifications:
*Part Name: YLY-2088 400W Adjustable Two-Way Crossover Filter
*Material: Oxygen-Free Copper, Pure Copper
*Color: As shown
Model: YLY-2088
Power: 400W
size: 7 x 5 x 2.5 cm / 2.75 x 1.96 x 0.98 in
Impedance: 4-16 ohms
Material: Inductor wound with oxygen-free copper, 0.8mm pure copper wire. High-capacity capacitors, reasonable design, and an attractive appearance provide comprehensive control over sound quality.

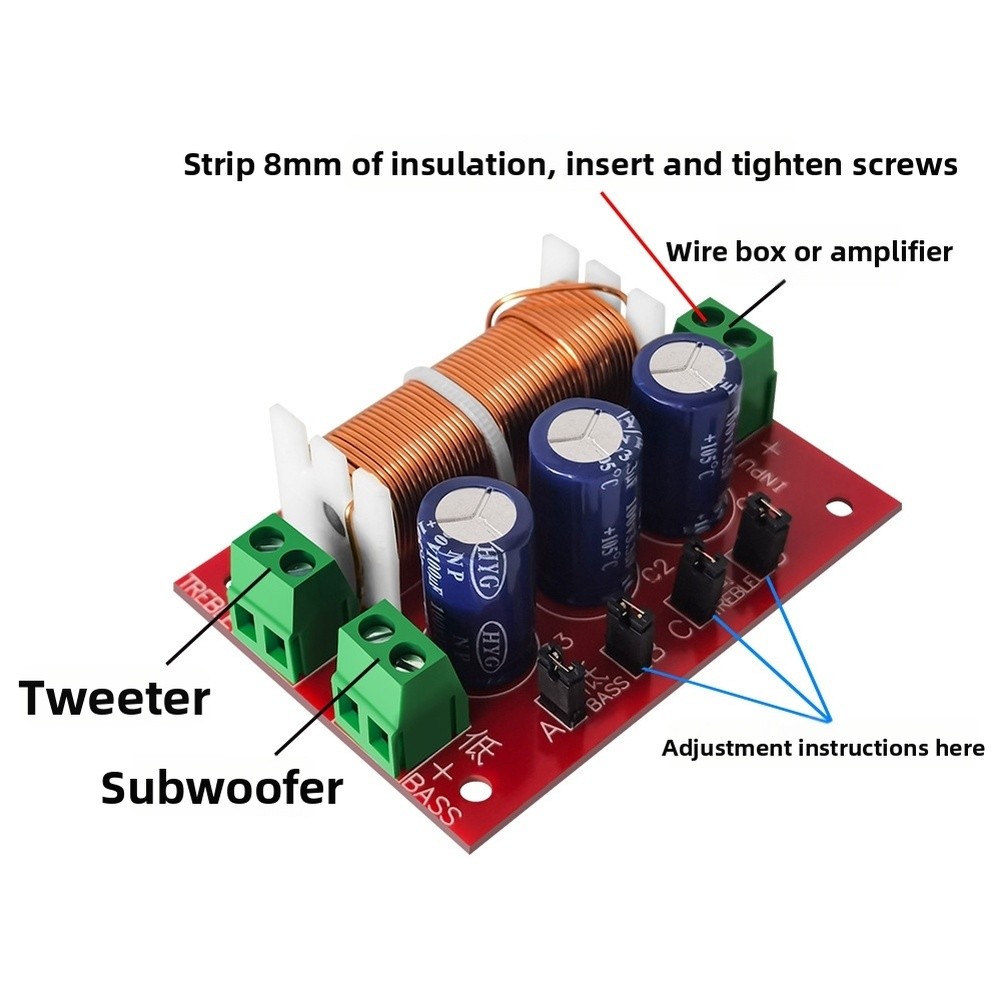

Instructions:High and low frequency crossover connections: INPUT: Connect to an or rear terminal block; TREBLE: Connect to the tweeter; BASS: Connect to the woofer.
How to tighten the terminal block:Use a small flat-blade screwdriver to loosen counterclockwise. Slide the clamping plate off, strip the wires, insert the wires, and tighten clockwise.
Full-range coaxial connection:Connect the speaker to the BASS position, then run a small wire from the woofer's positive terminal to the tweeter's positive terminal.
TipsTighten manually with more force than the terminal block's fixing legs to prevent deformation. When tightening, pinch the terminal block with your fingers. If the clamping plate is too loose and difficult to tighten, turn the crossover upside down, attach the clamping plate, and reconnect the wires.
Package Contents:
1 * YLY-2088 400W Adjustable Two-Way Crossover Filter
Note:
1. Due to factors such as monitor brightness and lighting, the actual color of the product may vary slightly from the image shown on the website.
2. Please allow slight deviations due to manual measurement.
