12G SDI SFP Transceiver Video Module for Blackmagic Fiber Optical Converter
12Gbps SDI SFP 1310nm DFB, Singlemode Fiber Duplex LC/UPC 20km, -5°C ~ +70°C

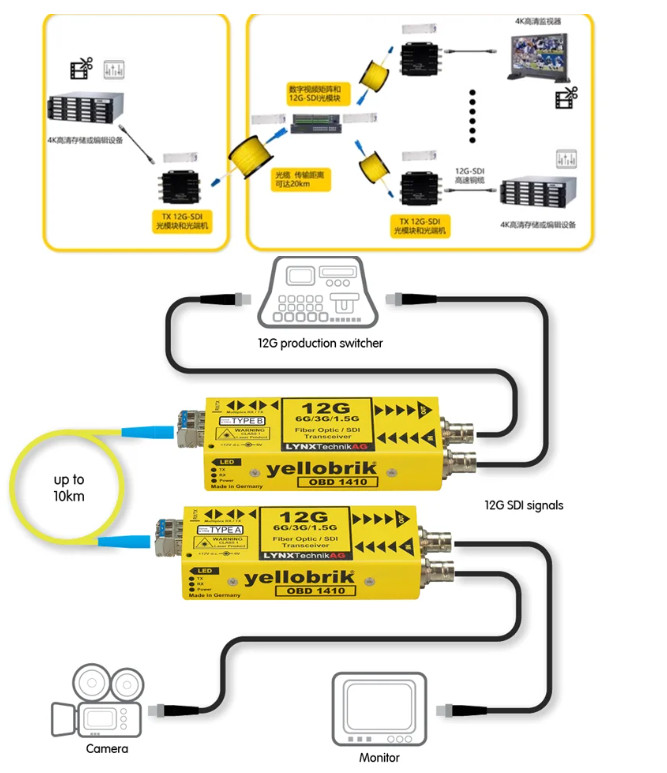

The price is for one piece ,You need buy 2pcs for transmitter and receiver
This 12G SDI SFP can't use for pathological signal ,It is not an error handling optical module
It compatiel with 3G/6G/12G （3G /6G/12GSDI can't use for Pathological Signal）
Very stable, no flicker problem even long-time use
Working perfect for blackmaguc optical equipment
Talkback converter 4k
smartview 4k
fiber optocal converter mini 12G
studio camera 4k
teranex AV/teranex express/mini teranex mini optical
duplicator 4k
decklink extreme 4k 12G
Studio Fiber Converter
Features
◎ Supports 12Gb/s serial optical interface
◎ Up to 20km transmission on SMF
◎ 1310nm DFB laser and PIN receiver
◎ Hot-pluggable SFP+ footprint
◎ SFI high speed electrical interface
◎ Built-in digital diagnostic functions
◎ Single +3.3V power supply
◎ Power consumption less than 1.0 W
◎ Operating case temperature: -5~+70°C
◎ SFP+ MSA package with duplex LC connector
Applications
◎ 12GBASE-LR/LW 10G Ethernet
◎ Other optical links
Standard
◎ Compliant with SFF-8472 and SFP+ MSA
◎ Compliant to SFF-8431 and SFF-8432
◎ Compliant with IEEE 802.3ae 10GBASE-LR/LW
◎ Compliant with FCC 47 CFR Part 15, Class B
◎ Compliant with Telcordia GR-468-CORE
◎ RoHS Compliant
Table 1. Regulatory Compliance
Feature | Standard | Performance |
Electrostatic Discharge(ESD) to the Electrical Pins | MIL-STD-883 Method 3015.7 | Class 1(>1000V for SFI pins, >2000V for other pins.) |
Electrostatic Discharge (ESD) to the Duplex LC Receptacle | IEC 61000-4-2 GR-1089-CORE | Compatible with standards |
Electromagnetic nterference (EMI) | FCC Part 15 Class B | Compatible with standards |
Immunity | IEC 61000-4-3 | Compatible with standards |
Laser Eye Safety | FDA 21CFR 1040.10 and 1040.11 | Compatible with Class I laser product |
