Package Include: (as the pictures
shown)

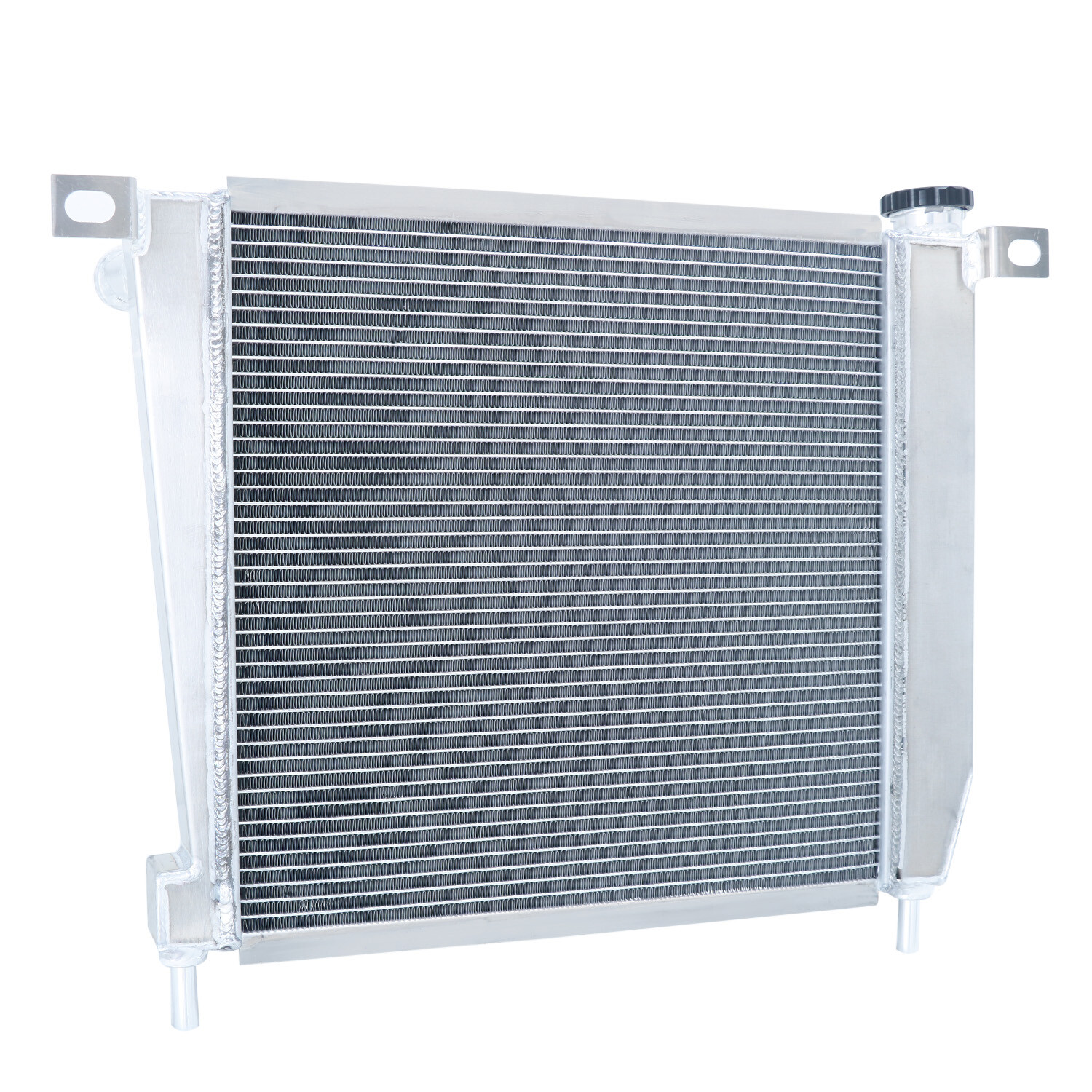

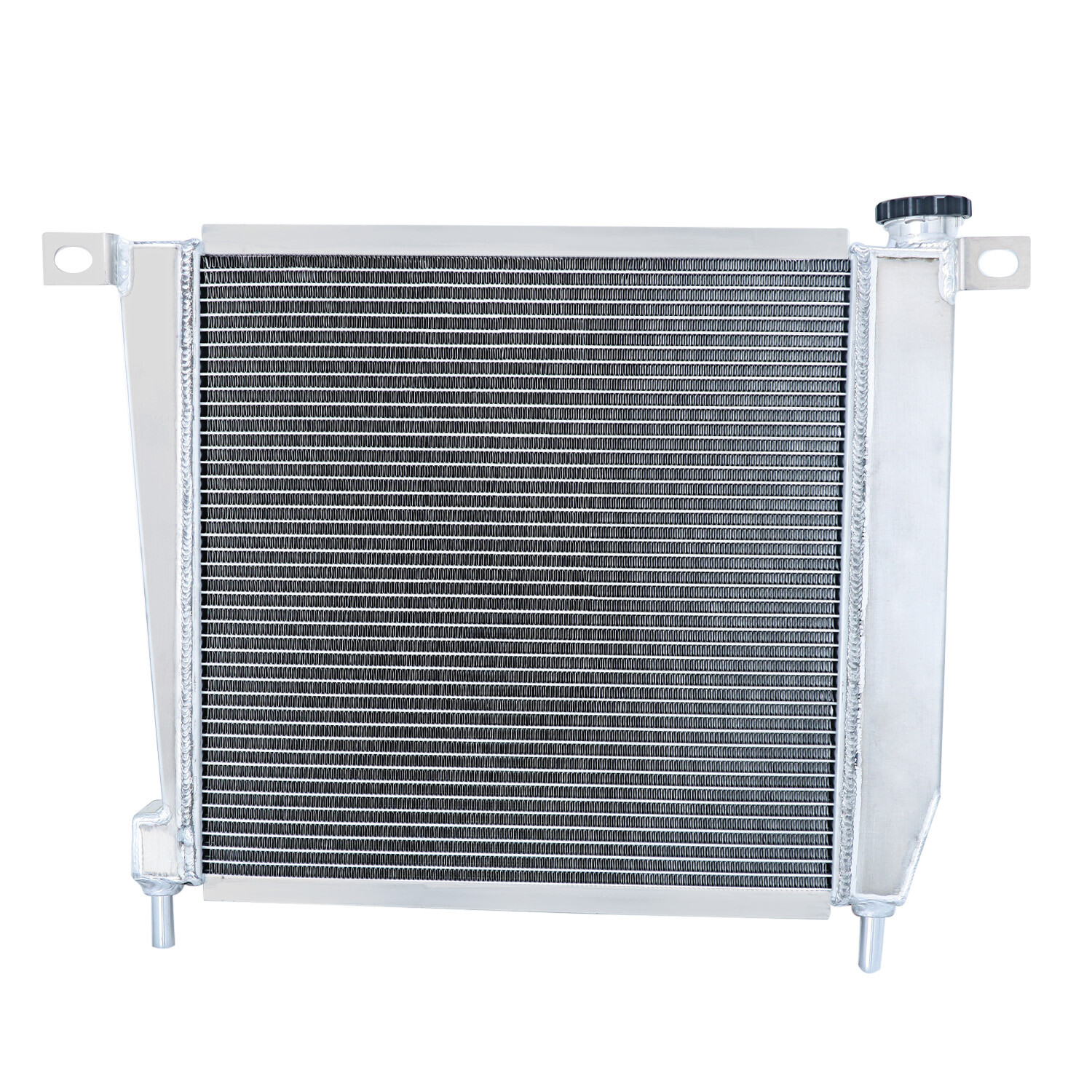

1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
Application:
1991-1994 Ford Explorer 4.0L
1985-1994 Ford Ranger 2.8L 2.9L 3.0L 4.0L
1991-1994 Ford Bronco II 2.8L 2.9L
1994 Mazda B4000 4.0L
1991-1994 Mazda Navajo 4.0L
Manufacturer Part Number :1164, CC1164, CU1164, DPI1164,MC1164
Radiator Configuration:
Condition:
New
Brand: ASI
Performance
3-Row of tubes Core Racing
Design
High
Performance Racing Spec.
Condition: 100 % Brand New.
All Aluminum include Core & Tank.
100% welded by TIG, no epoxy.
Core and Tank Material:Full Aluminium
Overall Diameter: Height 21 3/8"in x Width 26 3/8"in
Core Diameter: Height 18 1/8"in x Width 18"in

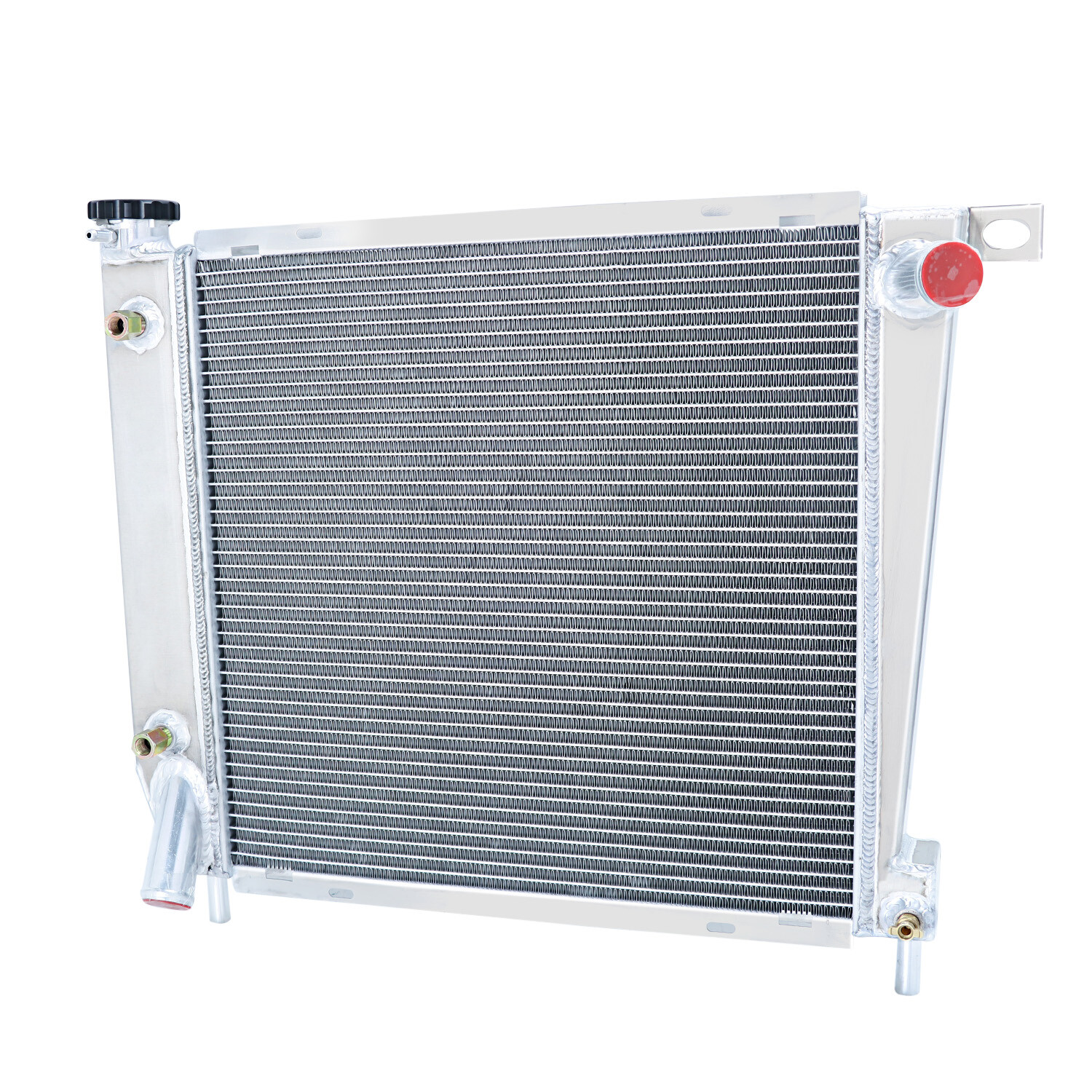

Inlet Location Diameter: 1 1/2" located on the Passenger side
Outlet Location Diameter: 1 1/2" located on the Driver side
Transmission Oil Cooler: Yes
Radiator Cap:CNC Precision Machined Radiator Cap
Radiator Drain Plug:OEM Style Brass Petcock Drain.
The Advantage of our Radiator:
Our
Radiator is made of AA5052 aircraft aluminum. It’s different from other
sellers T-3303 Series. In fact, AA5052 series Aluminum is much better
than T-3303 series.
More
than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because
it is cheaper and easier to get the material. However, T-3303 aluminum has many
disadvantages, such as poor polishing effect, softness, easiness to scratch and
corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is
operated in high pressure and high temperature for a long time, the leaking
problem would occur very soon.
AA5052 Aluminum is an Al-Mg
alloy with good corrosion resistance, excellent reliability and cold
workability and strength. The main alloying element of AA5052 is magnesium,
which has good forming and processing properties. It is widely used in the
manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of
transportation vehicles and ships, hardware products, and electrical-appliance
casings.
ThisAA5052 Aluminum Radiator is designed to provide maximum cooling
efficiency to prevent premature engine failure. Its light-weight, and high-heat
transferring aluminum features a tube and fin design that, dramatically
increases surface area that enables the heat to dissipate more efficiently.
This AA5052 Aluminum Radiator is at least 30%-45% more efficient than
stock ones. Most importantly, it has a much higher capacity for coolant than
stock ones, which means that your cooling system will be more efficient and
will be more resistant to temperature surges in racing applications.
Feature:

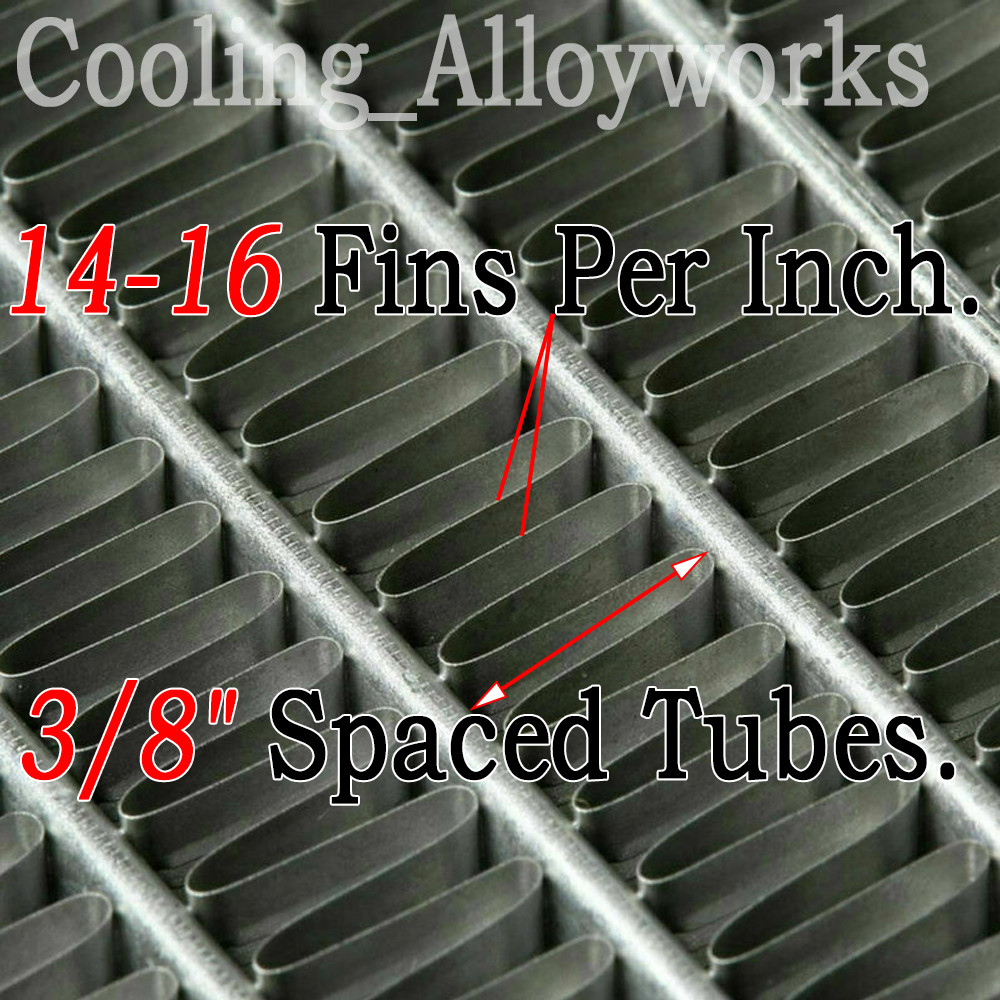

1、Higher density core: cooling rows are spaced 3/8"
apart. Giving you 25% more rows within the core than other aluminum radiators.
2、14-16 cooling fins per inch, giving you approximately
1500 more cooling fins than other aluminum radiators, throws off much more
heat.
3、Made of AA5052 aircraft aluminum, stronger than other
popular alloys and has increased corrosion resistance.
4、Brazed core technology to guarantee optimum performance
and dependability.
5、All AA5052 Aluminum 2mm thick tanks and fittings, Ensure
it's hard and durable.
6、Billet Aluminum CNC machined fill neck rugged and
durable.

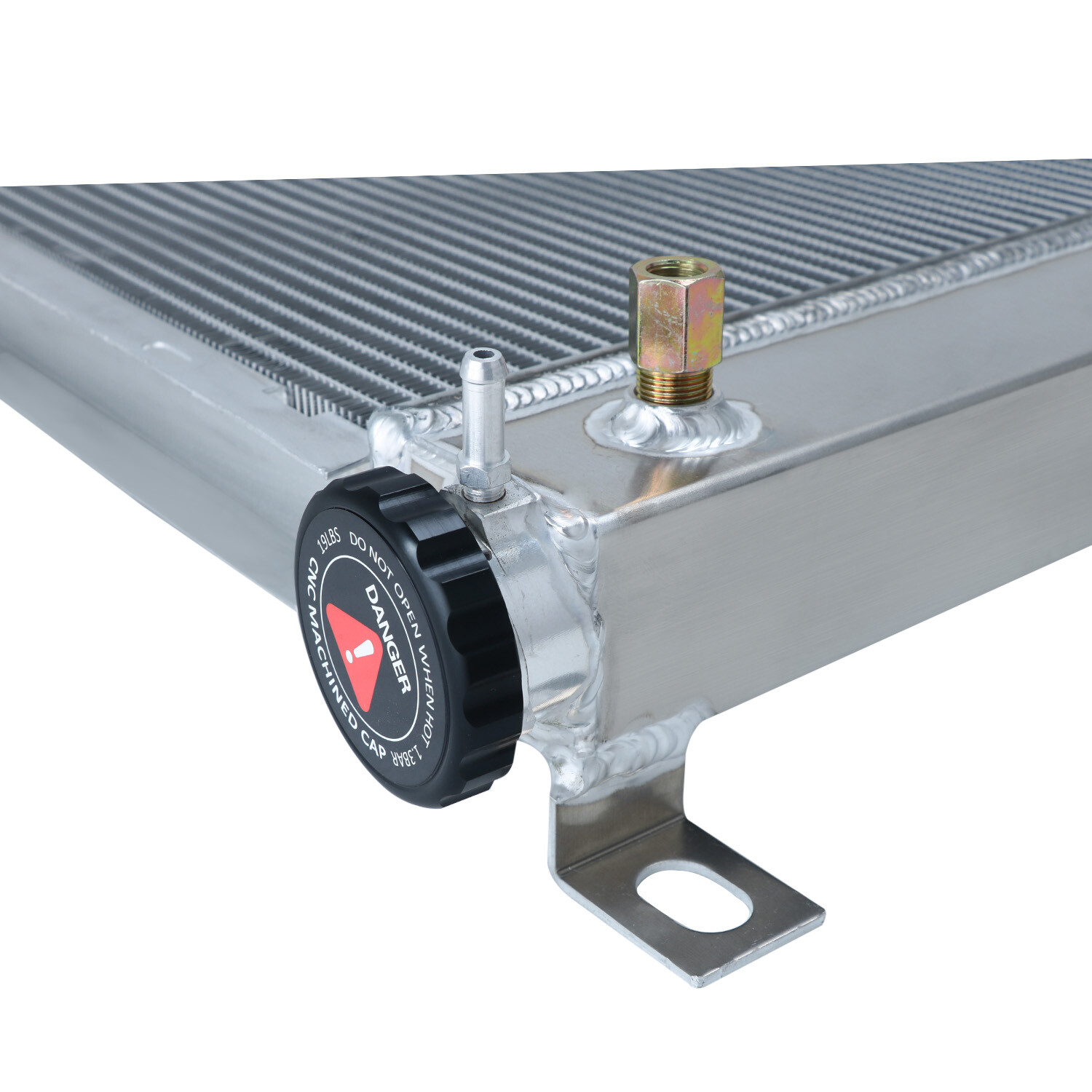

7、Ergonomic design CNC machined cap with Engraved
craftsmanship, anodized treatment.
8、OEM style brass petcock drain much better than other
plastic one on eBay.
9、Carefully crafted to exceptional OE standards for precise
fit.
