INNO Instrument SBT60 Battery Tester
Detailed Overview

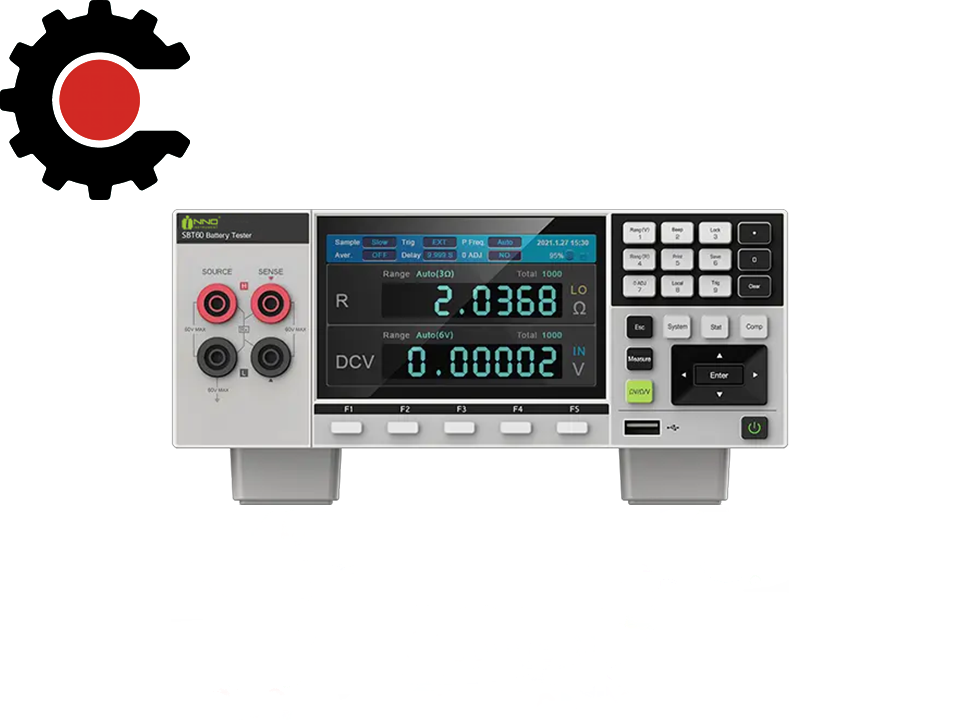

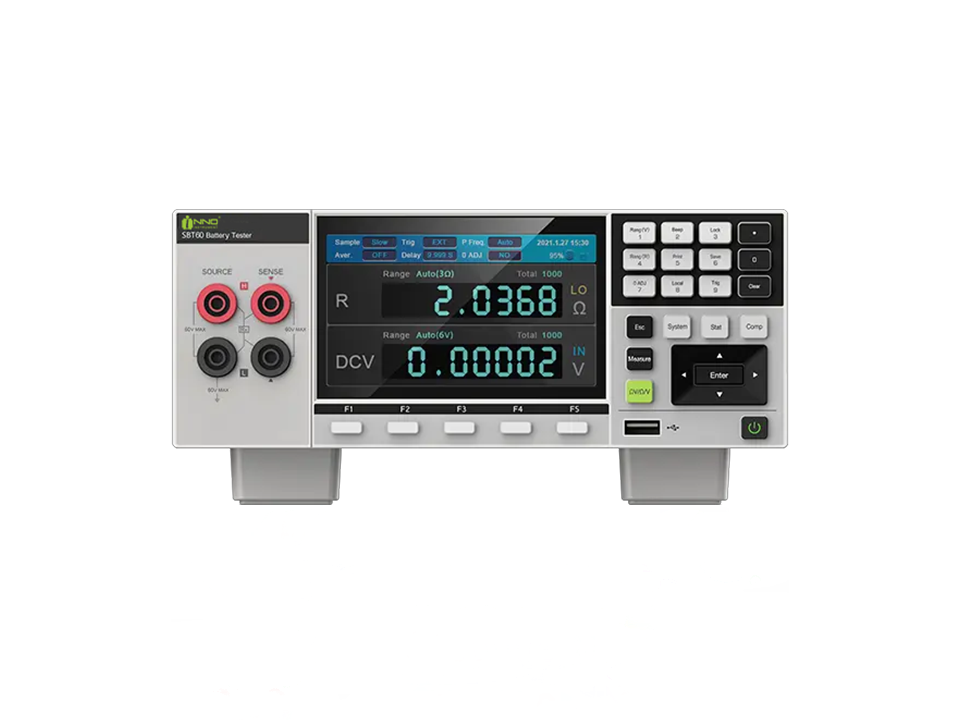

INNO Instrument SBT60 60 V Battery Resistance and Voltage Tester
The INNO Instrument SBT60 is a battery tester for measuring internal resistance and voltage on lithium batteries, storage batteries, and power batteries. It uses an AC four-terminal test method and supports 6 V and 60 V voltage ranges.
The SBT60 is designed for testing, sorting, and inspection workflows, including battery modules, battery packs, and R&D measurement tasks. Built-in comparator, storage, and statistics functions support repeatable evaluation in bench and production environments.
Measurement and Data Functions
- Measures resistance and voltage with AC four-terminal testing
- Supports comparator operation for sorting and judgment workflows
- Includes storage and statistics functions
- Provides analog output and external I/O support
- Supports USB host data handling
Performance and Architecture
The instrument covers resistance ranges from 3 mΩ to 3000 Ω and voltage ranges of 6 V and 60 V. It offers voltage accuracy of ±0.01% rdg. ±3 dgt. and resistance accuracy of ±0.4% rdg. ±5 dgt., with 0.1 μΩ minimum resistance resolution and response time of about 10 ms.
Applications
- Battery testing and sorting
- Battery module and battery pack inspection
- Battery R&D and measurement
Key Benefits
-
✓Fully Tested & Certified
-
✓30-Day Risk-Free Returns
-
✓1-Year Full Warranty
-
✓Professional Calibration Services
-
✓Trade-In Program Available
-
✓Fast & Reliable Delivery
What's in the Box
- 1 x INNO Instrument SBT60 Battery Tester
Technical Specifications
| Specification | Details |
|---|---|
| Brand | INNO Instrument |
| Model | SBT60 |
| Product Type | Battery Tester |
| Measuring Items | Resistance, Voltage |
| Test Method | AC four-terminal test method |
| Resistance Ranges | 3 mΩ, 30 mΩ, 300 mΩ, 3 Ω, 30 Ω, 300 Ω, 3000 Ω |
| Voltage Ranges | 6 V, 60 V |
| Resistance Accuracy | ±0.4% rdg. ±5 dgt. (most ranges); 3 mΩ range: ±0.4% rdg. ±10 dgt. |
| Voltage Accuracy | ±0.01% rdg. ±3 dgt. |
| Resistance Resolution | 0.1 μΩ minimum |
| Voltage Resolution | 10 μV (6 V display value), 100 μV (60 V range) |
| Response Time | About 10 ms |
| Total Measurement Time | Response time + sampling time |
| Input Impedance | 3 MΩ |
| Max Rated Input Voltage | DC ±60 V |
| Memory | 2.8 G |
| Interfaces / Functions | USB host, RS-232, EXT I/O, analog output, comparator, storage, statistics |
| Power Requirements | 100–240 VAC (±10%), 50/60 Hz (±2%) |
| Max Power Consumption | 35 VA |
