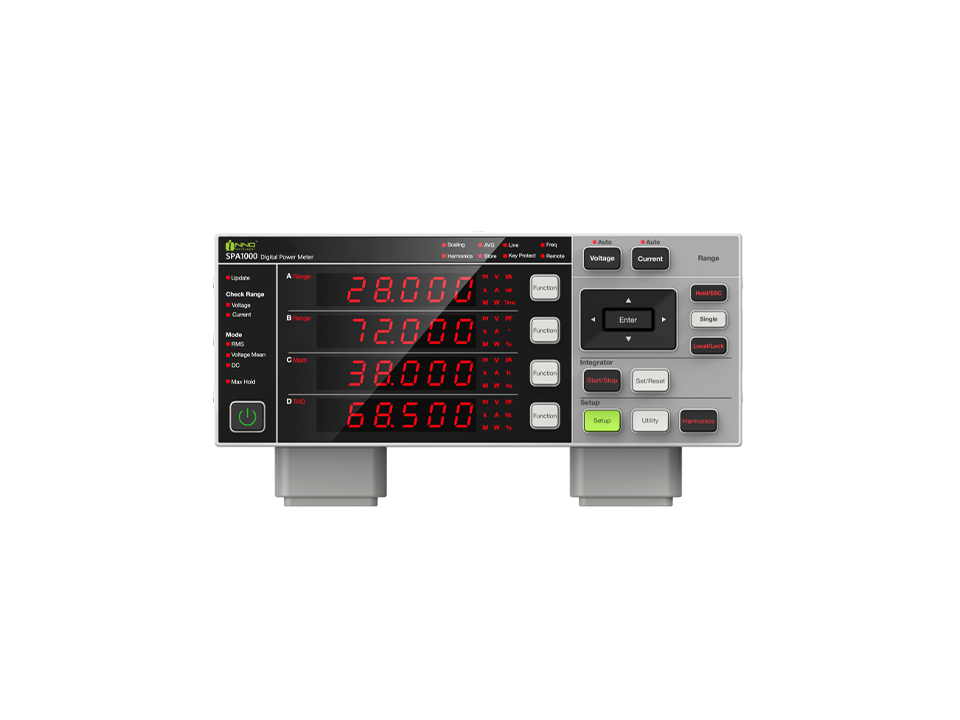

INNO Instrument SPA1000 1-Phase Digital Power Meter
Detailed Overview
INNO Instrument SPA1000 Single-Channel Power Measurement Platform
The INNO Instrument SPA1000 is a digital power meter for AC and DC power measurement in single-channel test applications. It supports voltage measurement up to 1000 V, current measurement up to 20 A, and simultaneous display of four measurement items on a 7-segment LED interface.
The SPA1000 is part of the SPA series and is suited to electrical measurement tasks involving home appliances, office automation products, process control automation, battery drive testing, and motor efficiency testing.
Measurement and Analysis Functions
- Single power channel with 1 external current sensor connection
- AC and DC measurement capability
- Harmonic measurement support up to the 100th order
- Selectable data update rate down to 50 ms
- Simultaneous 4-item display on LED readout
Architecture and Interface
The SPA1000 uses 16-bit A/D conversion with approximately 10 microsecond conversion speed and supports a measurement bandwidth from DC and 0.1 Hz up to 100 kHz. Documented communication and interface options include USB Type-B, Ethernet, RS-232, GP-IB, and D/A output.
Applications
- Home appliance power measurement
- Office automation product testing
- Battery drive and motor efficiency testing
Key Benefits
-
✓Fully Tested & Certified
-
✓30-Day Risk-Free Returns
-
✓1-Year Full Warranty
-
✓Professional Calibration Services
-
✓Trade-In Program Available
-
✓Fast & Reliable Delivery
What's in the Box
- 1 x INNO Instrument SPA1000 Digital Power Meter
Technical Specifications
| Specification | Value |
|---|---|
| Brand | INNO Instrument |
| Model | SPA1000 |
| Instrument Type | Digital Power Meter |
| Power Channels | 1 |
| External Current Sensor Connection | 1 |
| Measurement Accuracy | ±(0.1% of reading + 0.05% of range) |
| Bandwidth | DC, 0.1 Hz to 100 kHz |
| Voltage Range | Up to 1000 V |
| Current Range | Up to 20 A |
| A/D Conversion | 16-bit |
| Conversion Speed | Approx. 10 μs |
| Minimum Data Update Rate | 50 ms |
| Harmonic Measurement | Up to 100th order |
| Display | 7-segment LED, 4-item simultaneous display |
| Interfaces | USB Type-B, Ethernet, RS-232, GP-IB, D/A |
