ST-USB-A-R-DIN
USB Type A Screw Terminal Breakout Board with DIN Rail Clips
|
|
||||||||||||

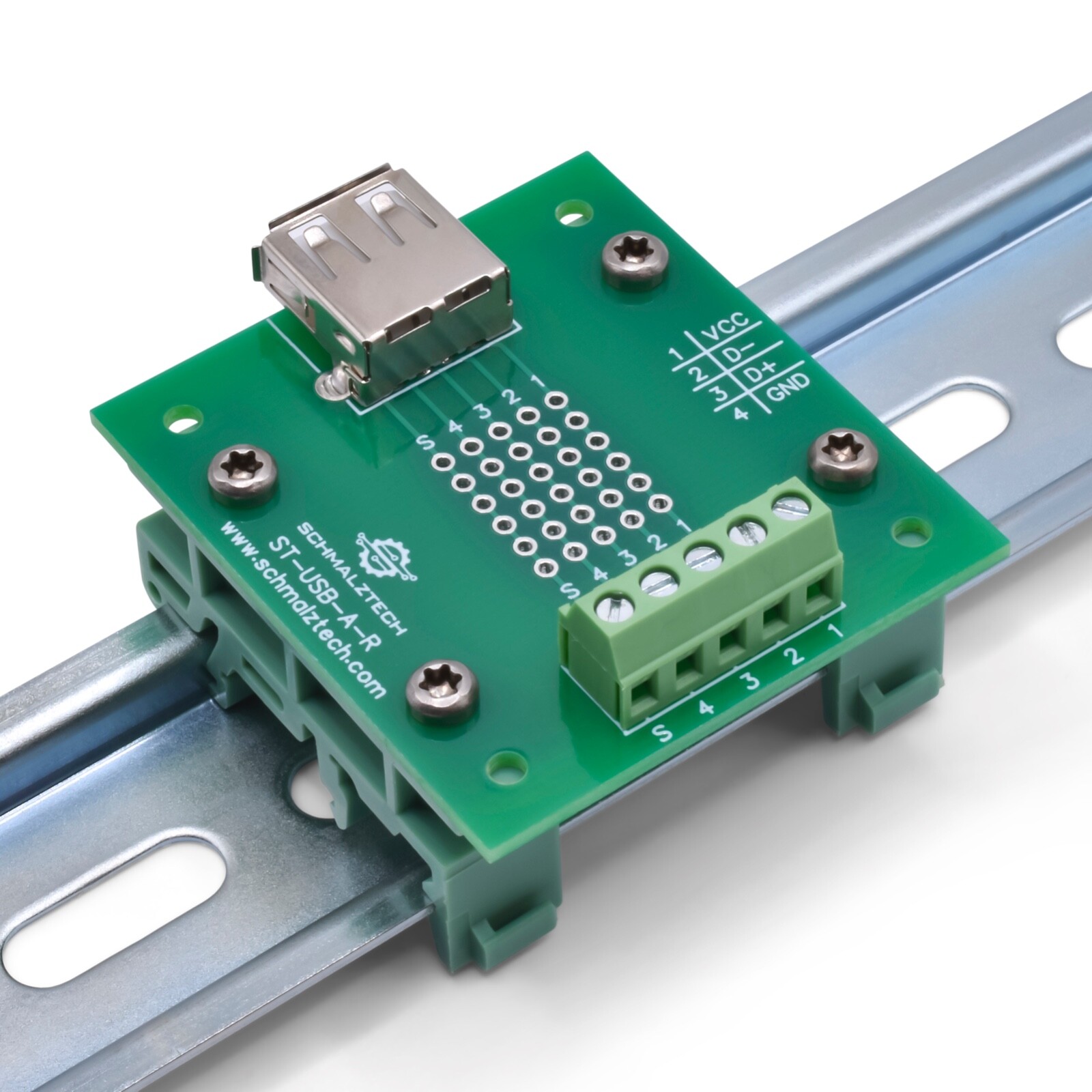

This USB Type A breakout board provides a convenient method of accessing all the contacts of a Type A USB connector. Each of the 4 connections as well as the shell are brought out to a screw terminal for fast and secure termination to wires. This board also features a prototyping area to enable in-circuit modifications as well as easy probing/diagnostics. The prototyping grid has a standard 0.1" pattern to enable compatibility with a variety of components. The DIN clips on this model allow it to be easily used with a 35mm DIN rail system, making this board perfect for industrial applications.
Mechanical Drawings
Electrical Connections
Each pin of the USB Type A connector is electrically connected to a single row of the prototyping area and to one screw terminal. This board also breaks out the connection to the connector shell, marked as S on the board.
Custom Designs
Can't find what you need? We can design and produce a custom board to fit your exact needs. Please reach out to us for additional information and pricing.
